Installing a flow meter may seem like a routine task, but even experienced engineers and technicians can make installation errors that compromise the accuracy and reliability of flow measurements. This blog highlights the five most common mistakes encountered during flow meter installation and how to prevent them. It is intended for plant engineers, automation professionals, EPC contractors, and instrumentation specialists in process industries who want to ensure precise flow monitoring.

Incorrect Installation Location

The first and most frequent mistake is placing the flow meter in an inappropriate location—such as immediately downstream of a pump, control valve, elbow, tee, or reducer. These components disturb the flow profile, leading to turbulence and resulting in inaccurate or unstable readings. Turbulent flow conditions disrupt the meter’s ability to measure consistently, which in turn can cause false alarms, erratic control actions, or incorrect process feedback.

To correct this, follow the manufacturer’s guidelines on straight pipe requirements. Typically, a length of ten pipe diameters upstream and five downstream of straight, unobstructed piping is recommended. This ensures laminar flow conditions, allowing the meter to function at its full rated accuracy.

Reversed Flow Direction

Another common oversight is installing the flow meter against the correct flow direction. In the rush to complete installation, technicians sometimes ignore the directional arrow on the meter’s body, leading to negative or zero readings during operation.

The solution is straightforward. Always verify the flow direction before installation and align it with the arrow marked on the device. This simple check can prevent hours of unnecessary troubleshooting later.

Air Entrapment Due to Improper Positioning

Installing a flow meter at the highest point of a piping loop can result in the accumulation of air pockets, especially in liquid applications. These air pockets distort the readings or cause dropouts in flow data, especially if the meter is not designed to differentiate between liquid and gas phases.

The ideal approach is to position the flow meter at a low point in the piping system. At this location, the pipe is most likely to remain fully filled with liquid, reducing the risk of entrained air and ensuring accurate and stable flow readings.

Inadequate Grounding and Shielding

Magnetic and ultrasonic flow meters are highly sensitive to electrical interference. When proper grounding and shielding practices are not followed, the sensor signal can experience noise, instability, or complete data loss. This issue often arises due to improper cable routing or failure to isolate signal wires from power lines.

To avoid such disturbances, use twisted, shielded signal cables and ensure the shield is grounded at one end only. Also, separate signal and power cables within the conduit or control panel. Taking the time to implement good wiring practices significantly improves system reliability and reduces future diagnostic efforts.

Incorrect Installation Orientation

Different flow meters have different orientation requirements. Some devices must be mounted horizontally, while others are designed for vertical installation with upward fluid flow. Installing a flow meter in the wrong orientation can wear out mechanical parts prematurely or cause measurement errors due to incomplete sensor coverage.

To prevent orientation-related issues, consult the datasheet or installation manual provided by the manufacturer. Following the specified mounting direction ensures proper sensor operation and longevity, particularly for turbine, paddlewheel, or positive displacement flow meters.

Final Summary and Implementation Tips

To summarize, the top five flow meter installation mistakes include poor placement near turbulent flow disturbances, reverse flow direction, positioning at air-accumulating high points, improper shielding and grounding, and failure to follow correct mounting orientation. Each of these errors can be easily avoided by adhering to basic installation principles and manufacturer recommendations.

By implementing these best practices, engineers and technicians can achieve accurate flow measurements, minimize calibration drift, extend sensor lifespan, and enhance the overall reliability of their process control systems.

For more guidance on selecting or installing flow meters, visit www.RadicalTechMart.com. Radical TechMart provides expert support, field-tested products, and trusted automation solutions for industrial applications.

]]>Mon, 02 Jun 2025 12:43:34 +0000<![CDATA[How to Choose the Right Pressure Transmitter ?]]>https://www.radicaltechmart.com/blogs/post/how-to-choose-the-right-pressure-transmitterDiscover how to choose the ideal pressure transmitter for your application. Learn about different types, key selection factors, and expert tips to ensure accurate, reliable pressure measurement in industrial automation systems.]]>

How to Choose the Right Pressure Transmitter: Types and Selection Guide for Process Automation

Choosing a pressure transmitter shouldn't feel like deciphering a complex catalog. Whether you're an automation engineer, plant supervisor, or purchase manager, this guide helps simplify your decision-making with practical advice, real-world examples, and key considerations tailored for process industries.


Why Pressure Transmitters Are Critical in Industrial Processes

Pressure transmitters are essential for maintaining consistent process control. They measure the pressure of gases or liquids and convert it into an electrical signal—commonly 4–20 mA—that can be read by PLCs, SCADA systems, or DCS platforms.

Across water treatment plants, food factories, pharmaceutical fermenters, and chemical reactors, these devices ensure safety, operational efficiency, and precise automation. The foundation of their success lies in choosing the right type and specifications for your unique process needs.


What is a Pressure Transmitter?

A pressure transmitter is an instrument that detects pressure and sends out an electrical signal proportional to that pressure. It typically consists of a pressure sensor, signal conditioning electronics (amplifier or converter), and an electrical output interface such as 4–20 mA, HART, or Modbus.

These transmitters are widely used across industries such as manufacturing, food and beverage, pharmaceutical, water and wastewater treatment, HVAC, metals and foundries, and renewable energy plants.


Types of Pressure Transmitters and Where to Use Them

Before diving into the selection process, it’s important to understand the main types of pressure transmitters and their common applications.

Gauge Pressure Transmitter
This type measures pressure relative to the current atmospheric pressure. It is widely used in pipelines, pumps, and storage tanks. For example, you might use it to monitor pressure in a water filtration system or pneumatic system.

Absolute Pressure Transmitter
This transmitter measures pressure relative to a perfect vacuum, where 0 absolute means a complete vacuum. It is ideal for barometric pressure applications, vacuum chambers, and boilers. A typical use case is measuring steam pressure in a boiler where high accuracy is required.

Differential Pressure (DP) Transmitter
A DP transmitter measures the pressure difference between two points in a system. These are used in applications like flow measurement (through orifice plates), filter monitoring, and level measurement in sealed tanks. For example, it helps monitor pressure across a heat exchanger or between the suction and discharge of a pump.

Multivariable Pressure Transmitter
This advanced transmitter can measure multiple parameters such as pressure, temperature, and differential pressure simultaneously. It is used for energy monitoring and high-precision flow calculations. Applications include chemical reactors or cogeneration plants where reducing sensor count and boosting accuracy is a priority.

Step-by-Step Pressure Transmitter Selection Guide

Choosing the wrong transmitter can result in frequent failures, poor data accuracy, and safety concerns. Follow these steps to ensure you select the best-fit device for your application.

Step 1: Identify the Type of Pressure to Measure
Determine whether you need to measure gauge, absolute, or differential pressure.

  • Gauge: Common in pipelines and open tanks.

  • Absolute: Required in vacuum or altitude-sensitive setups.

  • Differential: Best for filter, flow, or level monitoring in closed systems.

Step 2: Determine the Pressure Range
Always choose a transmitter with a pressure range about 25–30% higher than your system's operating pressure.

  • A too-narrow range risks damage from overpressure.

  • A too-wide range leads to reduced resolution and accuracy.

Step 3: Assess Accuracy Requirements
For general plant operations, ±0.5% accuracy is usually sufficient. However, for batching, flow measurement, or regulated industries like pharmaceuticals, an accuracy of ±0.1% or better is often necessary.

Step 4: Choose the Right Output Signal

  • 4–20 mA is the industry standard for reliable signal transmission over long distances.

  • HART, Modbus, or Profibus are ideal for digital diagnostics, IoT, and smart system integration.
    Make sure the output format aligns with your control architecture.

Step 5: Select the Appropriate Process Connection

  • Threaded (NPT/BSP) fittings are common in general industry.

  • Flanged connections are preferred for high-pressure or large-diameter lines.

  • Tri-Clamp fittings are best for hygienic applications in food and pharma.

Consider flush diaphragm designs if you're handling viscous or slurry-type fluids.

Step 6: Match Materials with Your Media

  • SS316 is a safe choice for most clean process fluids.

  • For corrosive media, opt for Hastelloy or PTFE linings.
    Always confirm compatibility to avoid corrosion or sensor failure.

Step 7: Consider Environmental Conditions

  • Use IP67 or IP68 rated transmitters for outdoor, wet, or dusty environments.

  • For high-temperature zones, use diaphragm seals or remote mounting setups.

  • In hazardous areas, choose transmitters with ATEX or IECEx certifications.

Step 8: Plan for Mounting and Maintenance

  • If the installation point is hard to access, consider remote-mount transmitters with capillary extensions.

  • Select housings with display windows if local monitoring is required.

  • Make sure the device allows easy calibration and servicing.

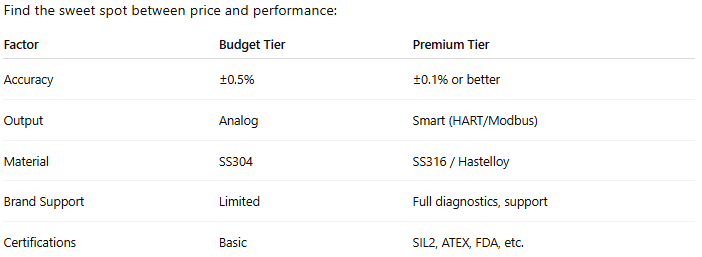

Step 9: Balance Budget with Performance
When comparing models, weigh your operational needs against your investment capacity.

Application-Based Selection Examples

Water Treatment Plant
Application: Use a gauge transmitter to monitor inlet/outlet pressure.
Why: Prevents pump overload and tracks filter condition.

Boiler Systems
Application: Use an absolute transmitter to regulate steam pressure.
Why: Delivers safe and accurate steam control.

Pharmaceutical Fermenters
Application: Use a differential transmitter to monitor internal pressure and liquid level.
Why: Critical for maintaining batch integrity and sterile conditions.

Chemical Reactors
Application: Use a multivariable transmitter to capture pressure, flow, and temperature.
Why: Reduces the number of sensors while improving process insights.

Let Application Requirements Guide the Decision

While it's tempting to go for high-end models based on specs alone, it's best to make choices based on your actual environment and operational goals. At Radical TechMart, we helped a mid-sized food processing company upgrade from a basic gauge transmitter to a smart differential pressure transmitter connected to their SCADA system.

The result was a 27% drop in downtime, real-time filter clog alerts, and improved maintenance efficiency thanks to onboard diagnostics.


Need Help Choosing the Right Model?

Every plant is unique. Instead of guessing, share the following details with our team:

  • Type of fluid

  • Pressure range

  • Desired output signal

  • Installation location

  • Required certifications (e.g., FDA, ATEX)

Our instrumentation experts will help you choose the best-suited model from brands like Siemens, WIKA, Yokogawa, and more.


Conclusion

Choosing the right pressure transmitter is more than a technical exercise—it’s a strategic investment. Done right, it enhances process reliability, safety, and productivity.

  • Use gauge transmitters for general applications

  • Use absolute transmitters for precision control

  • Use differential transmitters for advanced feedback

  • Use multivariable transmitters for intelligent automation


Key Takeaways Recap

  • Understand your pressure type and range

  • Match accuracy to the process demands

  • Align output format with your control system

  • Confirm process compatibility with materials and connections

  • Factor in environmental and maintenance needs


Radical TechMart offers curated sensor solutions for every industrial need. Whether you’re working on a new installation or upgrading an old system, we’re here to help you find the perfect fit.
