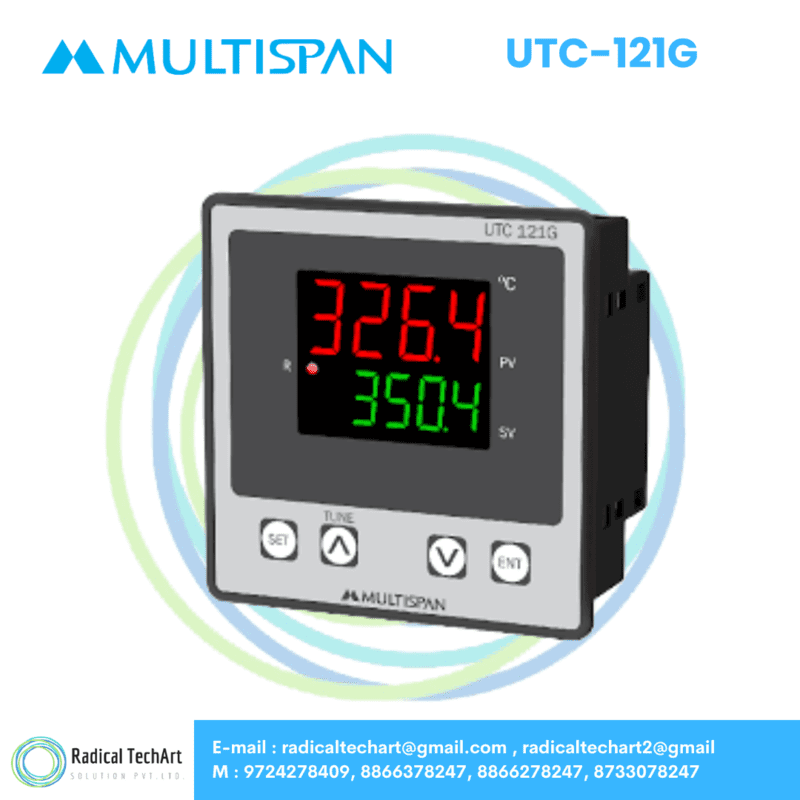

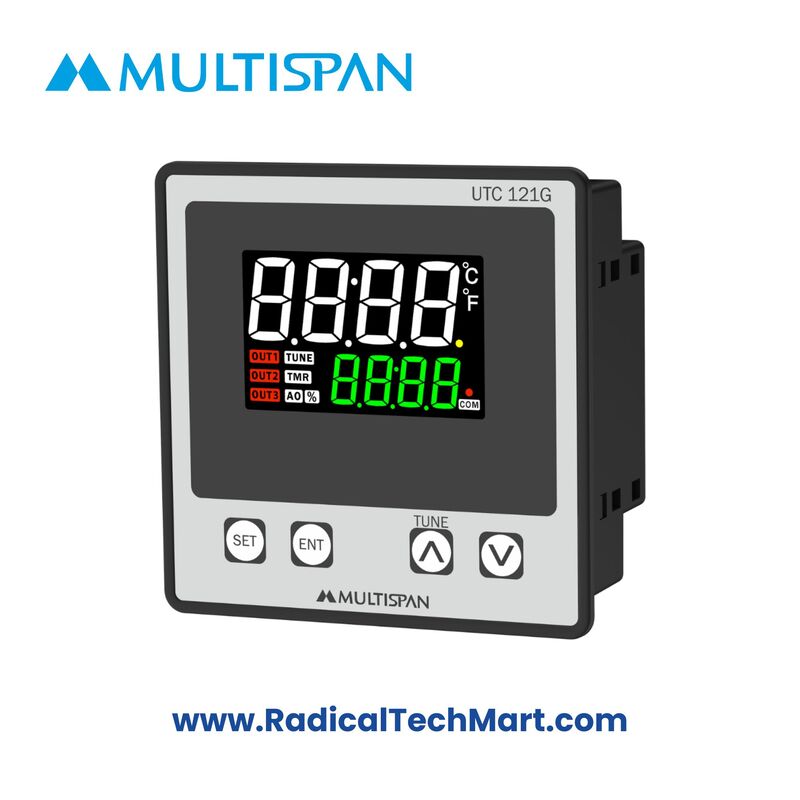

UTC-121G / 221G / 421G / 321P Multispan

Product Summary:
Multispan UTC-121G, UTC-221G, UTC-421G, and UTC-321P are advanced temperature controllers designed for precise and configurable control in industrial processes. They support various thermocouples and RTD inputs and offer configurable control actions such as PID with Auto-Tuning, TP, and ON-OFF modes.

Key Features:

• Universal input: Thermocouple (J/K/R/S) and RTD (PT-100)

• Multiple control actions: PID (Auto-Tune), TP, ON-OFF

• Dual LED Display: PV & SV with high visibility

• Panel mount with multiple size options (96x96, 72x72, 48x48)

• Relay & SSR control output options

• Configurable for Heating/Cooling operations

• Wide operating voltage: 100–250V AC

Applications:

• Packaging machinery

• Extrusion machinery

• Furnaces and boilers

• Ovens and incubators

• Food and process industries

Product Benefits:

• Versatile sensor compatibility simplifies inventory

• Easy configuration with 4-key interface

• Improved control accuracy with PID auto-tuning

• Compact form factor suitable for various panel sizes

• Enhanced process safety with open sensor detection

FAQs:

Q1: Which sensors are supported by UTC series controllers?
A1: They support J, K, R, S thermocouples and PT-100 (3-wire) RTDs with selectable display ranges.

Q2: Can I configure the output for either heating or cooling?
A2: Yes, the output can be configured for either heating or cooling as per the application requirement.

Q3: What display sizes are offered across the UTC models?
A3: Depending on the model, the displays range from 0.33" to 0.59" with dual-color LED for PV and SV.
