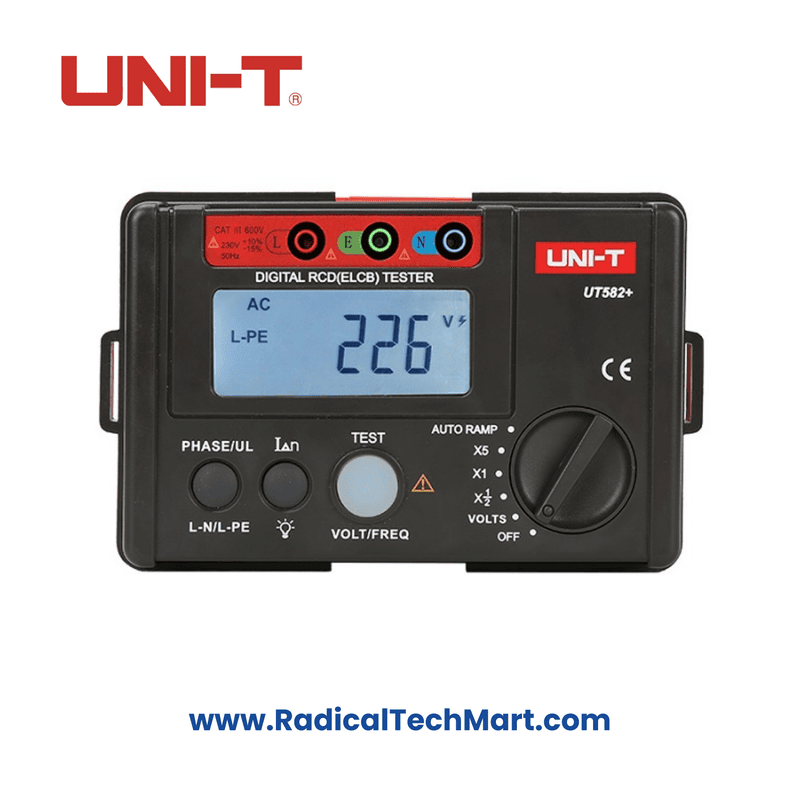

UNI-T UT582+ Digital RCD (ELCB) Tester

The UT582+ Digital RCD (ELCB) Tester is designed for detecting whether the Residual Current Device (RCD) in a circuit operates correctly. It is suitable for single-phase circuits with a supply voltage range of 195V to 253V. The tester's voltage measurement range is from 30V to 600V, and it supports a frequency range of 45Hz to 65Hz.

Key Features:

• Standards Compliance: The UT582+ complies with IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007, IEC 61557-6:2007, EN61326-1, and EN61326-2-2.
• RCD Measurement: The tester can measure trip times and trip currents at various levels, including 10mA, 20mA, 30mA, 100mA, 300mA, and 500mA. The accuracy of the trip time is ±(2% + 2).
• Voltage and Frequency: It has a voltage measurement range of 30V to 600V with a resolution of 1V and an accuracy of ±(3% + 3). It operates at frequencies between 45Hz and 65Hz.
• Display: The tester features a large 71mm x 34mm LCD display with full icon display, backlight, and a data hold function. It can show up to 999 counts.
• Phase Angle Selection: It allows for phase angle selection between 0° and 180°.
• Additional Functions:
  • Simultaneous testing of trip time and current
  • AUTO RAMP function for various current levels
  • Disconnect and mis-operation buzzers
  • Over-range display (OL)
  • Lead sequence and power-off check functions
  • Auto power-off (APO) feature
  • Low battery indication (<7.2V)
• Power Supply: Powered by six 1.5V LR6 batteries, with a low battery warning and a power-off buzzer.
• Dimensions and Weight: The product weighs 400g and measures 160mm x 100mm x 71mm.
• Accessories: Includes test lines, a carrying bag, and an elastic strap for convenience.

The UT582+ is backed by a 1-year warranty.
