A. Product Overview

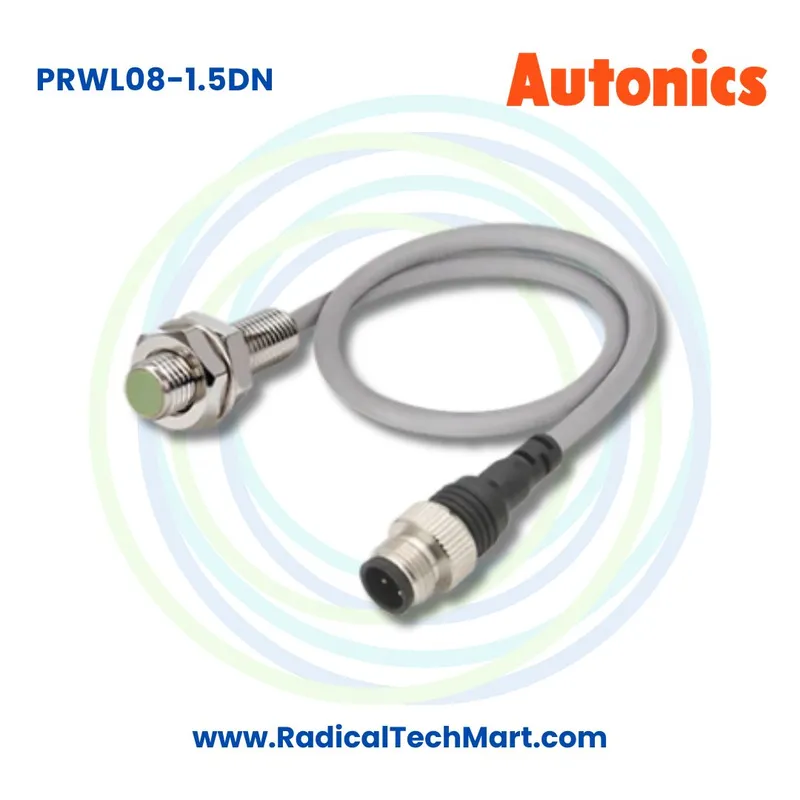

The Autonics PRWL08-1.5DN is a compact cylindrical inductive proximity sensor designed for detecting metallic targets without physical contact.

It belongs to the PRWL Series and uses an M8 cylindrical threaded body with a long body design and cable connector configuration. The sensor provides a 1.5 mm sensing distance and uses an NPN normally open control output.

The flush mounting design allows the sensing head to be installed into suitable metallic mounting structures while maintaining the recommended installation clearances.

Its 1.5 kHz response frequency makes the sensor suitable for relatively fast repetitive detection applications.

Key Features

• Brand: Autonics

• Model: PRWL08-1.5DN

• Series: PRWL

• Product type: Inductive proximity sensor

• Body type: Cylindrical long body

• Sensing diameter: 8 mm

• Thread size: M8

• Sensing distance: 1.5 mm

• Installation type: Flush

• Output type: NPN

• Output operation: Normally open

• Standard sensing target: 8 x 8 x 1 mm iron

• Response frequency: 1.5 kHz

• Hysteresis: Maximum 15 percent of sensing distance

• Power supply: 12 to 24 VDC

• Operating voltage range: 10 to 30 VDC

• Current consumption: Maximum 10 mA

• Control output: Maximum 200 mA

• Residual voltage: Maximum 2 V

• Operation indicator: Red LED

• Connection type: Cable connector

• Connector type: M12

• Protection rating: IP67

• Operating temperature: Minus 25°C to 70°C

• Operating humidity: 35 to 95 percent RH

• Body material: Nickel plated brass

• Sensing surface material: PBT

• Approximate unit weight: 34 g

The sensor also includes protection against surge voltage, output short circuit overcurrent and reverse polarity.

B. Working Principle

The Autonics PRWL08-1.5DN inductive proximity sensor works by generating an electromagnetic field from its sensing face.

When there is no metallic object within the sensing area, the electromagnetic field remains stable.

When a metallic target approaches the sensing surface, the target affects the electromagnetic field. The internal electronic circuit detects this change and switches the sensor output.

Because the sensor uses inductive technology, no physical contact between the sensor and the target is required.

The NPN normally open output can then send a switching signal to compatible equipment such as:

• PLC

• Counter

• Industrial controller

• Machine control circuit

• Automation system

The control system can use the signal to detect the presence or position of a metallic component.

C. Why Is the Autonics PRWL08-1.5DN Used?

The Autonics PRWL08-1.5DN is used when industrial machinery requires compact, fast and reliable non-contact detection of metal objects.

1. Metal Object Detection

The sensor detects metallic targets without physical contact.

2. Machine Position Detection

It can confirm whether a metallic machine component has reached the required position.

3. Component Counting

With a response frequency of 1.5 kHz, the sensor can be used in suitable repetitive counting applications.

4. Conveyor Applications

It can detect suitable metallic components moving through conveyor and material handling systems.

5. PLC Input

The NPN output can provide a digital signal to a compatible PLC input.

6. Limit Position Detection

The sensor can be used as a non-contact alternative to a mechanical limit switch in suitable applications.

7. Compact M8 Installation

The small M8 body makes it suitable for applications with limited mounting space.

8. Flush Mounting

The flush mounting design provides greater flexibility when installing the sensor into suitable machine structures.

9. Fast Detection

The 1.5 kHz response frequency makes the sensor suitable for applications involving relatively fast target movement.

10. Industrial Protection

The IP67 protection rating provides protection against dust and water exposure in industrial environments.

D. Suitable Buyers

The Autonics PRWL08-1.5DN M8 1.5 mm NPN Inductive Proximity Sensor is suitable for:

• Industrial automation companies

• Machine manufacturers

• OEM machine builders

• PLC system integrators

• Control panel manufacturers

• Packaging machine manufacturers

• Conveyor manufacturers

• CNC machine manufacturers

• Assembly line manufacturers

• Robotics companies

• Material handling companies

• Automotive component manufacturers

• Metal processing industries

• Special purpose machine manufacturers

• Factory maintenance departments

• Production plants

• Automation engineers

• Electrical contractors

• Instrumentation companies

• Industrial maintenance teams

It is particularly suitable for buyers searching for an M8 proximity sensor, 1.5 mm proximity sensor, NPN inductive sensor, flush proximity sensor, M12 proximity sensor, compact metal detection sensor or Autonics proximity sensor.

FAQ

1. What is the Autonics PRWL08-1.5DN?

The Autonics PRWL08-1.5DN is an M8 cylindrical inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the sensing distance?

The sensing distance is 1.5 mm.

3. What size is the PRWL08-1.5DN?

It uses an 8 mm sensing diameter with an M8 cylindrical body.

4. Is the PRWL08-1.5DN NPN or PNP?

The PRWL08-1.5DN is an NPN output sensor.

5. Is the PRWL08-1.5DN normally open or normally closed?

This model provides a normally open output.

6. What type of sensor is the PRWL08-1.5DN?

It is an inductive proximity sensor.

7. What materials can it detect?

It is designed primarily for detecting metallic objects.

8. What is the standard sensing target?

The standard sensing target is 8 x 8 x 1 mm iron.

9. Is the PRWL08-1.5DN flush mount?

Yes. It is designed for flush installation.

10. What does flush mounting mean?

Flush mounting means the sensing head can be installed within a suitable metallic mounting surface according to the recommended installation clearances.

11. What power supply does the sensor require?

The rated power supply is 12 to 24 VDC.

The operating voltage range is 10 to 30 VDC.

12. What is the maximum current consumption?

The maximum current consumption is 10 mA.
