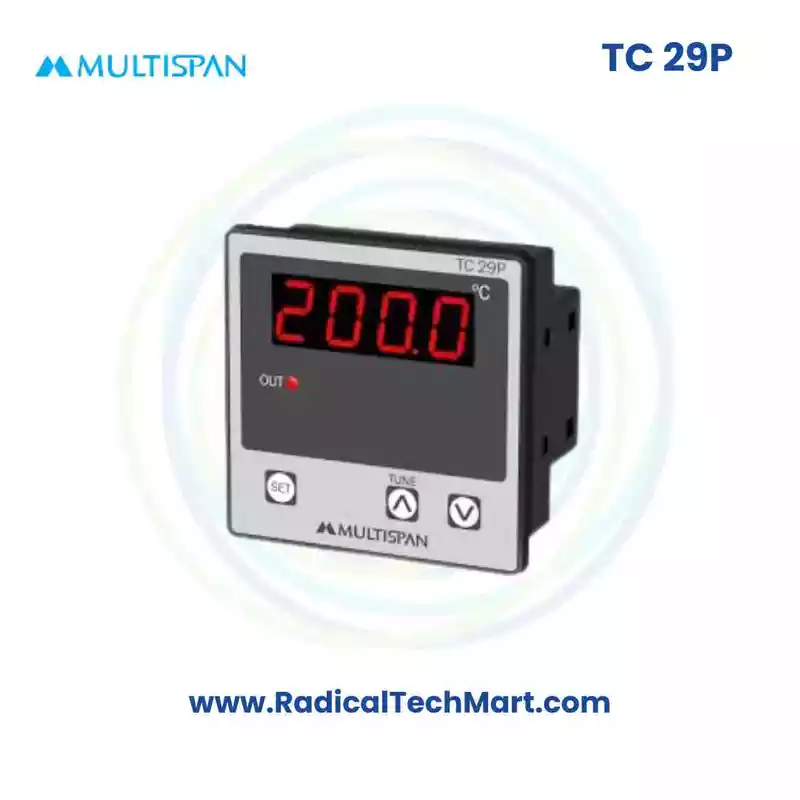

Multispan TC-29P & TC-49P Single Display PID Temperature Controller | Relay + SSR Output

Product Summary:
The Multispan TC-29P and TC-49P PID Controllers are precision-engineered instruments designed for efficient temperature regulation. Ideal for a wide range of industrial control applications, they support configurable input types and feature dual output for advanced process control.

Key Features:

• Input: J/K Thermocouple or RTD Pt-100

• Output: 1 Relay + 1 SSR

• Control Modes: PID / TP / ON-OFF (Configurable)

• Display: Single bright digital display

• Sizes: 72x72 mm (TC-29P) & 48x48 mm (TC-49P)

• Voltage: 230V AC (TC-29P), 100–270V AC (TC-49P)

• HSN Code: 90328910

Applications:

• Temperature control panels

• Plastic extrusion & injection machines

• HVAC systems

• Industrial furnaces and ovens

• Packaging machines

Product Benefits:

• Compact panel-friendly designs

• Accurate temperature regulation with PID logic

• Flexible voltage and input configuration

• Dual output for process and alarm control

• Trusted Multispan reliability

❓ FAQs:

Q1: Are both models suitable for industrial temperature panels?
A1: Yes, both models are widely used in industrial automation and control panels.

Q2: What is the main difference between TC-29P and TC-49P?
A2: Size and voltage input: TC-29P is 72x72 mm (230V), while TC-49P is 48x48 mm (100–270V AC).

Q3: Can the input type be changed later?
A3: Yes, inputs like J/K/PT-100 are configurable as per your application.
