NCH8-40M 20/11/02 Contactor
₹2,610.00

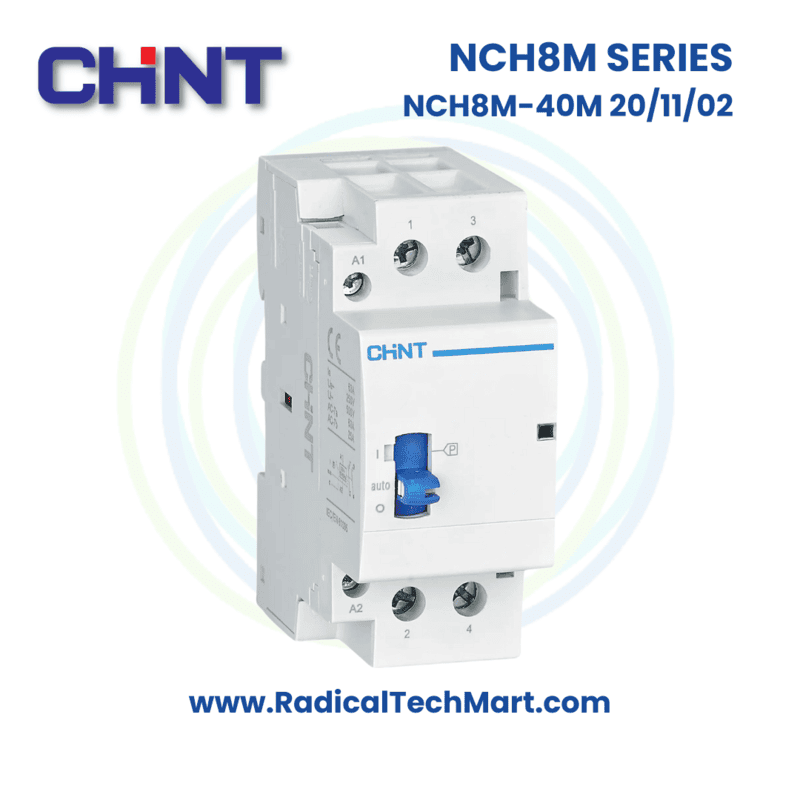

The Chint NCH8-40M 20/11/02 Contactor is a modular contactor designed for various motor control and switching applications. It operates at a rated voltage of 230V and features 2 NO (Normally Open) contacts and a 40A current rating, suitable for controlling electrical circuits with non-inductive or slightly inductive loads. This contactor is engineered to meet international standards such as IEC/EN 60947-4-1, ensuring reliability in power systems with a frequency range of 50Hz/60Hz. It is particularly effective in both domestic and industrial settings.
Key specifications include:
- Rated Control Voltage: 230V AC
- Contact Configuration: 2 NO Contacts
- Rated Current: 40A
- Mounting Type: Modular design for easy installation on standard DIN rails
- Protection Class: IP20, suitable for indoor use
- Operating Temperature Range: -25°C to +70°C
Product Details
- NCH8-□M series Manual Modular AC contactor (here in after referred as contactor) is mainly used in power systems with AC 50Hz/60Hz, rated operating voltage up to 400V and rated operating current up to 63A. It is used as remote or manual switch for circuit control under AC-7a and AC-7b (non-inductive load or low-inductive load/resistance furnace,domestic appliance and low-inductive load of similar applications) application category. The contactor shall not be used for breaking short-circuit current, therefore it should be used with a proper short-circuit protection device.
