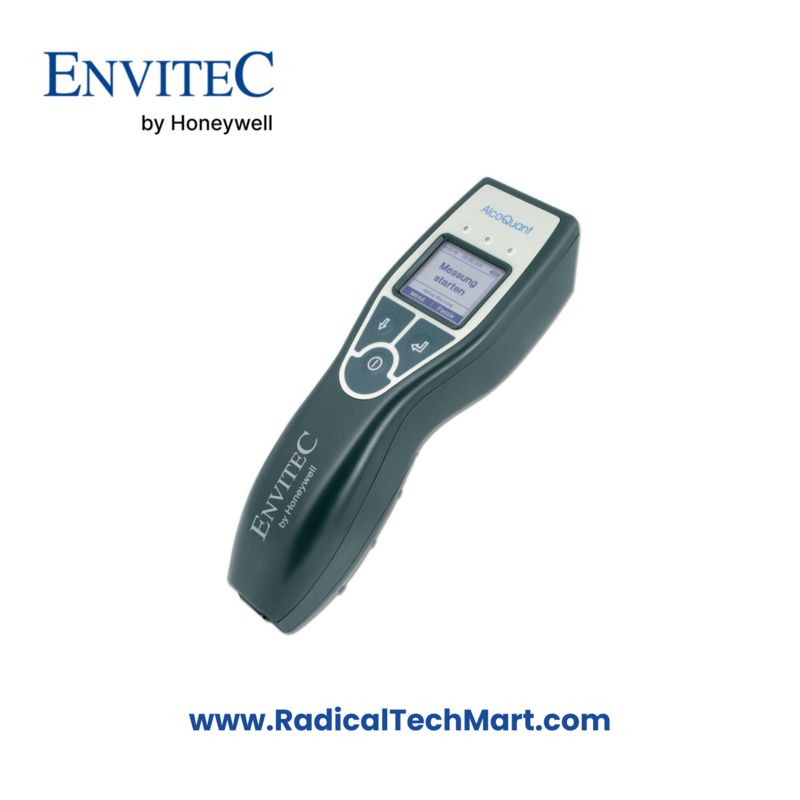

AlcoQuant 6020 plus

The AlcoQuant® 6020 plus, developed by EnviteC by Honeywell, is a portable breath alcohol analyzer designed for accurate and rapid detection of alcohol levels in exhaled air. Below are its key specifications:

Measuring Modes:

• Active and passive measurement modes.

Measuring Range:

• 0 to 5.5‰ BAC (Blood Alcohol Content).

Accuracy:

• 0 to 1‰: ±0.05‰ absolute.
• Above 1‰ to 2‰: ±5% of the measured value.
• Above 2‰: ±10% of the measured value.

Ambient Conditions:

• Operating Temperature: -10°C to +50°C.
• Storage Temperature: -25°C to +70°C.
• Optimal Sensor Storage Temperature: 0°C to +25°C.
• Ambient Pressure: 600 to 1400 hPa.
• Ambient Humidity: 20% to 98% relative humidity.

Sample Collection:

• Minimum Expiration Volume: 1.2 liters.

Power Supply:

• Batteries: 4 x LR6 (AA) Alkaline Mignon (recommended: Duracell® Procell®) or EnviteC rechargeable battery NiMH 4.8V (4x2100 mAh).
• Battery Charger (optional): Protection class II.

Additional Features:

• The device utilizes a specialized electrochemical sensor that reacts exclusively to alcohol, ensuring high specificity and long-term stability.
• It offers a high degree of reproducibility in measurement results, facilitated by an innovative sample collection system.
• The analyzer includes a memory module and universal interfaces (USB and RS-232) for data transfer and analysis.
• An optional wireless interface is available for connecting to an approved wireless printer.

These specifications make the AlcoQuant® 6020 plus suitable for various applications, including police routine alcohol verification, testing of prison inmates, and ensuring safety at work.
