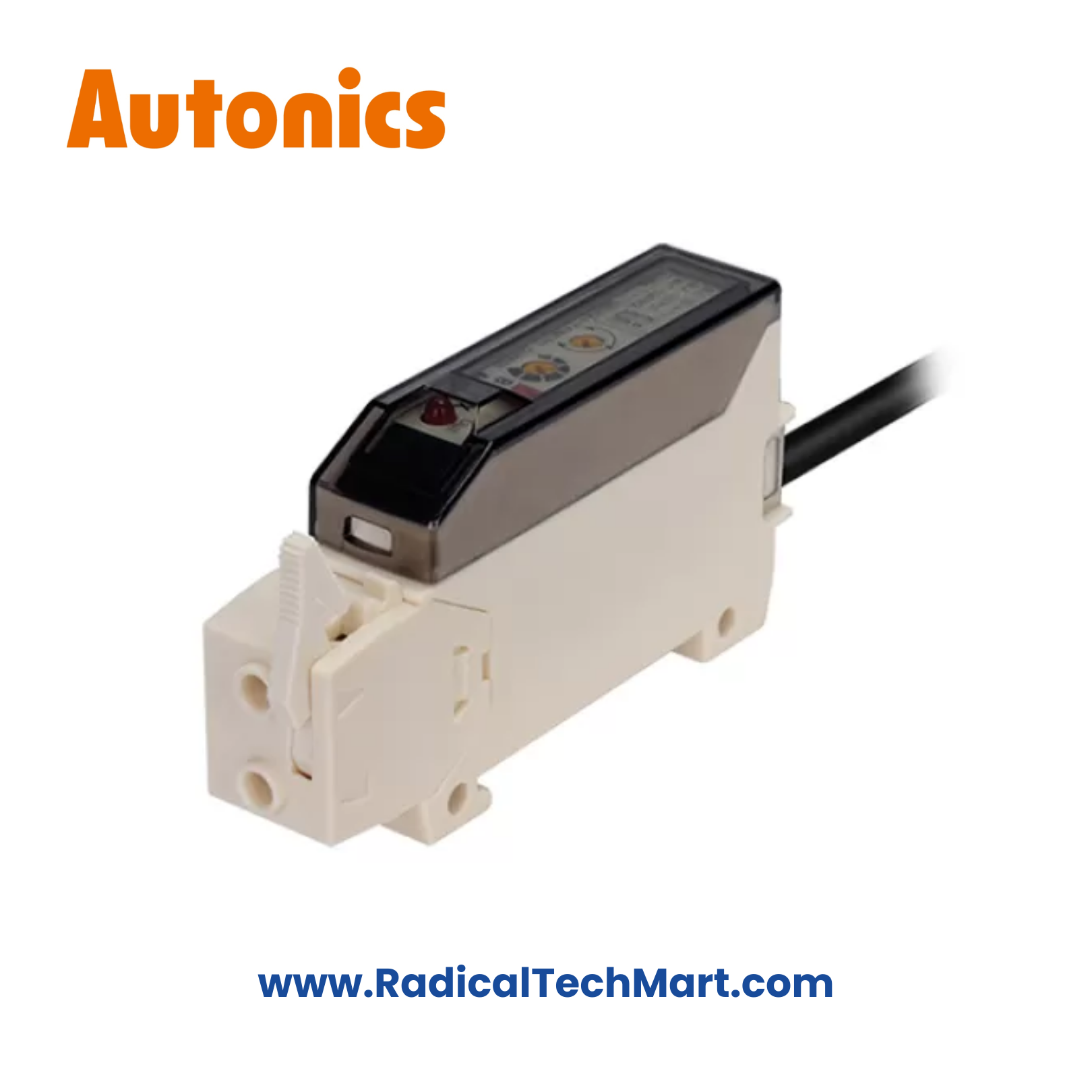

Autonics BF3RX-P Fiber Optic Sensor
Autonics BF3RX-P Fiber Optic Amplifier Sensor (PNP Output)
Autonics BF3RX-P is a fiber optic amplifier sensor with PNP open-collector output, offering high-speed response (≤1 ms) and precise sensitivity control for reliable object detection in compact and harsh industrial environments.
Customize
Share :
The Autonics BF3RX-P is a fiber optic amplifier sensor equipped with a PNP open-collector output, designed for accurate and stable object detection when paired with compatible Autonics fiber optic units. It uses a red LED light source (660 nm, modulated) and provides reliable sensing even in dusty, narrow, or high-temperature areas where conventional photoelectric sensors cannot be installed.
The amplifier supports Light ON / Dark ON selection via control wire and offers coarse and fine sensitivity adjustment for precise tuning.
Key Features
PNP open-collector output
Compatible with Autonics fiber optic units
High-speed response: ≤ 1 ms
Coarse and fine manual sensitivity adjustment
Light ON / Dark ON selectable by control wire
Reverse power & output short-circuit protection
DIN rail or panel mounting
Stable detection in noisy industrial environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BF3RX-P |
| Sensor Type | Fiber Optic Amplifier |
| Light Source | Red LED (660 nm, modulated) |
| Output Type | PNP open collector |
| Response Time | ≤ 1 ms |
| Sensitivity Setting | Manual (coarse + fine adjuster) |
| Operation Mode | Light ON / Dark ON (selectable) |
| Power Supply | 12–24 V DC ±10% |
| Current Consumption | ≤ 40 mA |
| Load Voltage | ≤ 30 V DC |
| Load Current | ≤ 200 mA |
| Residual Voltage | ≤ 2.5 V DC |
| Protection Circuit | Reverse polarity, OCP, SCP |
| Indicator | Operation indicator (red LED) |
| Protection Rating | IP40 |
| Ambient Temperature | −10 to +50 °C |
| Cable | Ø5 mm, 4-core, 2 m |
| Weight | ≈ 90 g |
Applications
Small object detection
Electronics & PCB assembly
Packaging and labeling machines
Conveyor sensing
Semiconductor handling
High-temperature or space-restricted sensing points
What’s in the Box?
Autonics BF3RX-P Fiber Optic Amplifier
Mounting bracket
Adjustment screwdriver
Bolt & nut set
Instruction manual
FAQs
Q1. What is the difference between BF3RX and BF3RX-P?
BF3RX-P has a PNP open-collector output, whereas BF3RX is the NPN output version.
Q2. Does BF3RX-P work without fiber optic cables?
No. A separate fiber optic unit is required.
Q3. What power supply is required?
It operates on 12–24 V DC.
Q4. Can Light ON / Dark ON be selected?
Yes, via the control wire connection.
Q5. Is this suitable for industrial automation?
Yes. It is designed specifically for industrial sensing applications.
