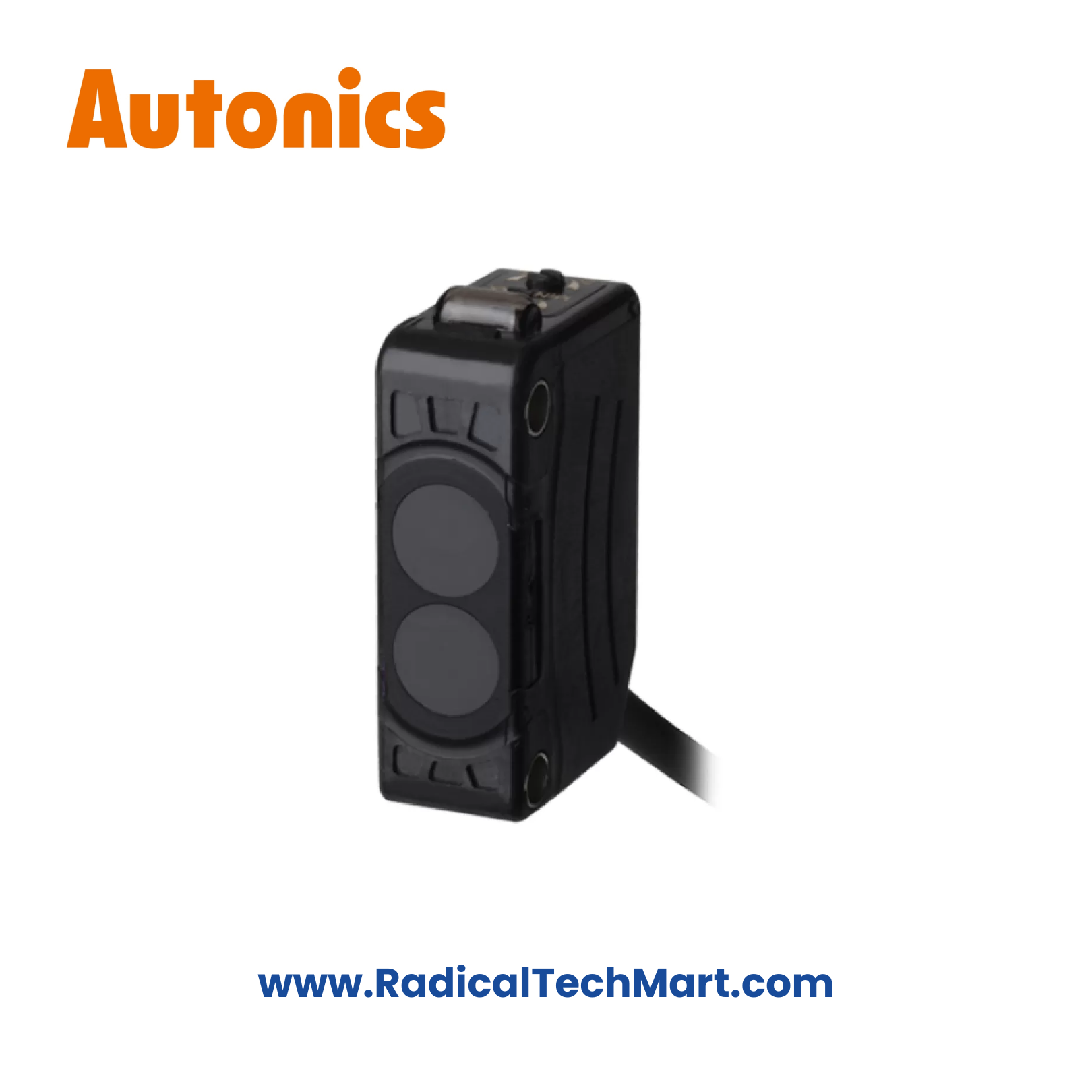

The Autonics BJ3M-PDT is a polarized retro-reflective photoelectric sensor designed for stable and accurate detection of transparent, shiny, or reflective objects. With a 3-meter sensing distance, compact BJ housing, and NPN/PNP output, it is widely used in packaging lines, bottling machines, and conveyor systems.

---

Key Features

• Polarized retro-reflective sensing type

• Sensing distance up to 3 m

• Reliable detection of transparent & glossy objects

• NPN & PNP open-collector outputs

• Light-ON / Dark-ON selectable

• Built-in sensitivity adjustment

• Compact rectangular BJ housing

• High resistance to background reflection

• IP65 protection rating

• Cable type (standard cable length)

---

Technical Specifications

Parameter	Specification
Model	BJ3M-PDT
Sensing Type	Polarized Retro-Reflective
Sensing Distance	Up to 3 m
Light Source	Infrared LED (polarized, ~850 nm)
Output Type	NPN & PNP open collector
Output Mode	Light-ON / Dark-ON
Response Time	≤ 1 ms
Supply Voltage	12–24 VDC ±10%
Load Current	≤ 100 mA
Protection Rating	IP65
Operating Temperature	−25 to +55 °C

---

Applications

• Transparent bottle detection

• Packaging & bottling machines

• Conveyor object detection

• Counting & positioning systems

• Material handling equipment

• OEM industrial automation

---

What’s in the Box?

• Autonics BJ3M-PDT Photoelectric Sensor

• Reflector (standard)

• Mounting bracket

• Adjustment screwdriver

• Mounting screws & nuts

• Instruction manual

---

FAQ

Q1. What type of sensor is BJ3M-PDT?
It is a polarized retro-reflective photoelectric sensor.

Q2. What is the maximum sensing distance?
Up to 3 meters, depending on reflector alignment.

Q3. Why choose a polarized model?
Polarization helps reliably detect transparent and reflective objects.

Q4. Does it support both NPN and PNP outputs?
Yes, it provides both NPN & PNP open-collector outputs.

Q5. Is it suitable for packaging lines?
Yes, it is commonly used in packaging, bottling, and conveyor automation.
