Autonics BR100-DDT-P Photoelectric Sensor

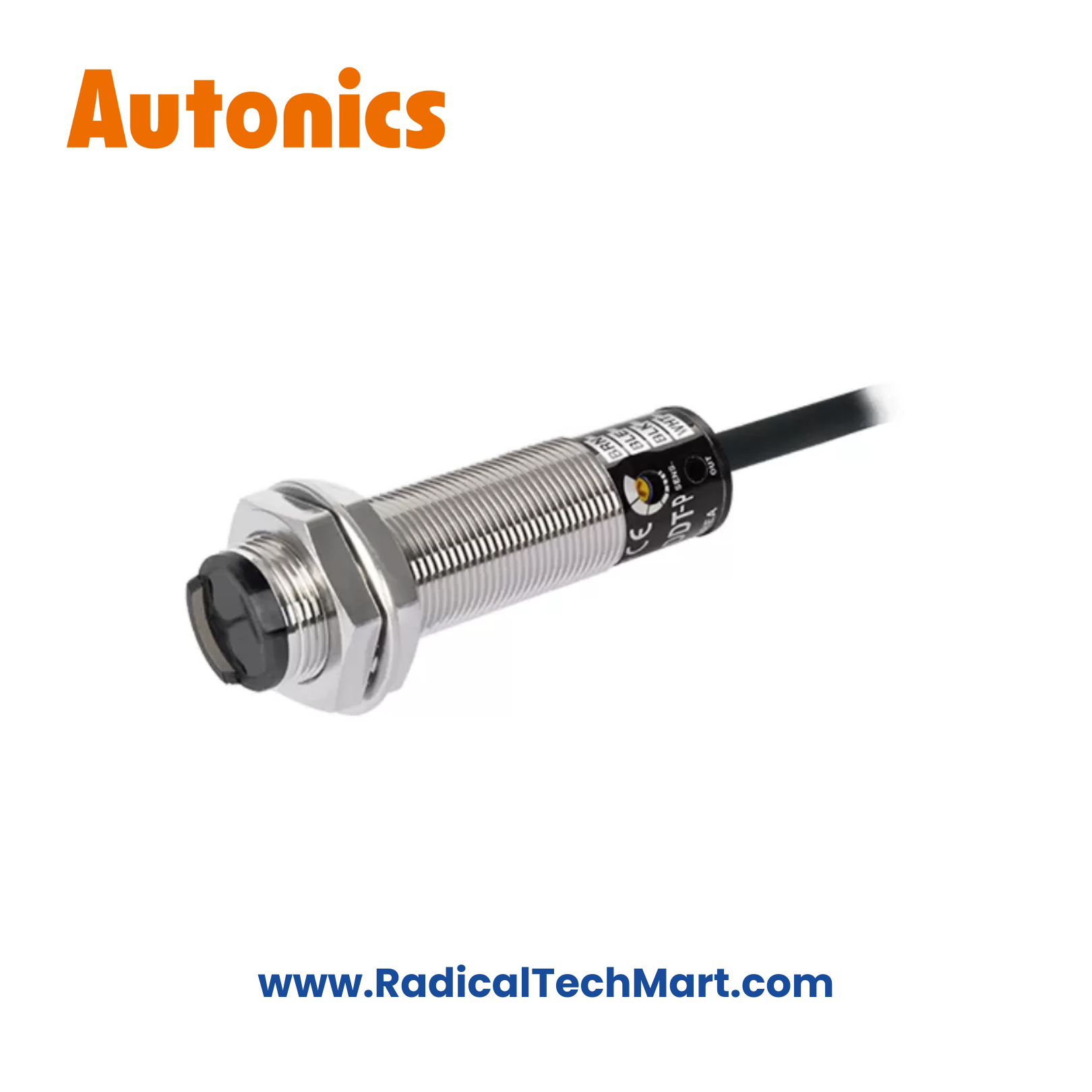

Autonics BR100-DDT-P Diffuse Photoelectric Sensor (100 mm, PNP, M18, IP66)
Cylindrical diffuse reflective photoelectric sensor with 100 mm sensing distance and PNP open-collector output.
Ideal for compact machine automation, conveyors, and packaging equipment.
The Autonics BR100-DDT-P is a diffuse reflective photoelectric sensor from the BR Series, featuring a compact M18 cylindrical design. With a 100 mm sensing distance, PNP output, and IP66 protection, it provides stable detection of opaque and translucent objects in demanding industrial environments.
Key Features
Diffuse reflective sensing type
Sensing distance: 100 mm
PNP open-collector output
Light-ON / Dark-ON selectable via control wire
Built-in sensitivity adjuster
Fast response time ≤ 1 ms
High noise immunity with digital signal processing
Reverse polarity & output short-circuit protection
IP66 protection rating
Cylindrical M18 metal body (nickel-plated brass)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BR100-DDT-P |
| Sensor Type | Diffuse reflective |
| Sensing Distance | 100 mm |
| Sensing Target | Opaque/translucent objects |
| Light Source | Infrared LED (940 nm) |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 12–24 VDC ±10% |
| Load Current | ≤ 200 mA |
| Protection Rating | IP66 |
| Operating Temperature | −10 to +60 °C |
Applications
Conveyor object detection
Packaging & bottling machines
Part presence sensing
OEM automation equipment
General factory automation
What’s in the Box?
Autonics BR100-DDT-P Photoelectric Sensor
M18 fixing nuts (×2)
Washer
Adjustment screwdriver
Instruction manual
FAQ
Q1. What type of sensing does BR100-DDT-P use?
Diffuse reflective sensing (no reflector required).
Q2. What is the maximum sensing distance?
Up to 100 mm with a standard non-glossy white target.
Q3. Is this NPN or PNP output?
This model has PNP open-collector output.
Q4. Can Light-ON / Dark-ON be changed?
Yes, selectable via the control wire.
Q5. Is it suitable for industrial environments?
Yes, it has IP66 protection and a metal housing.
