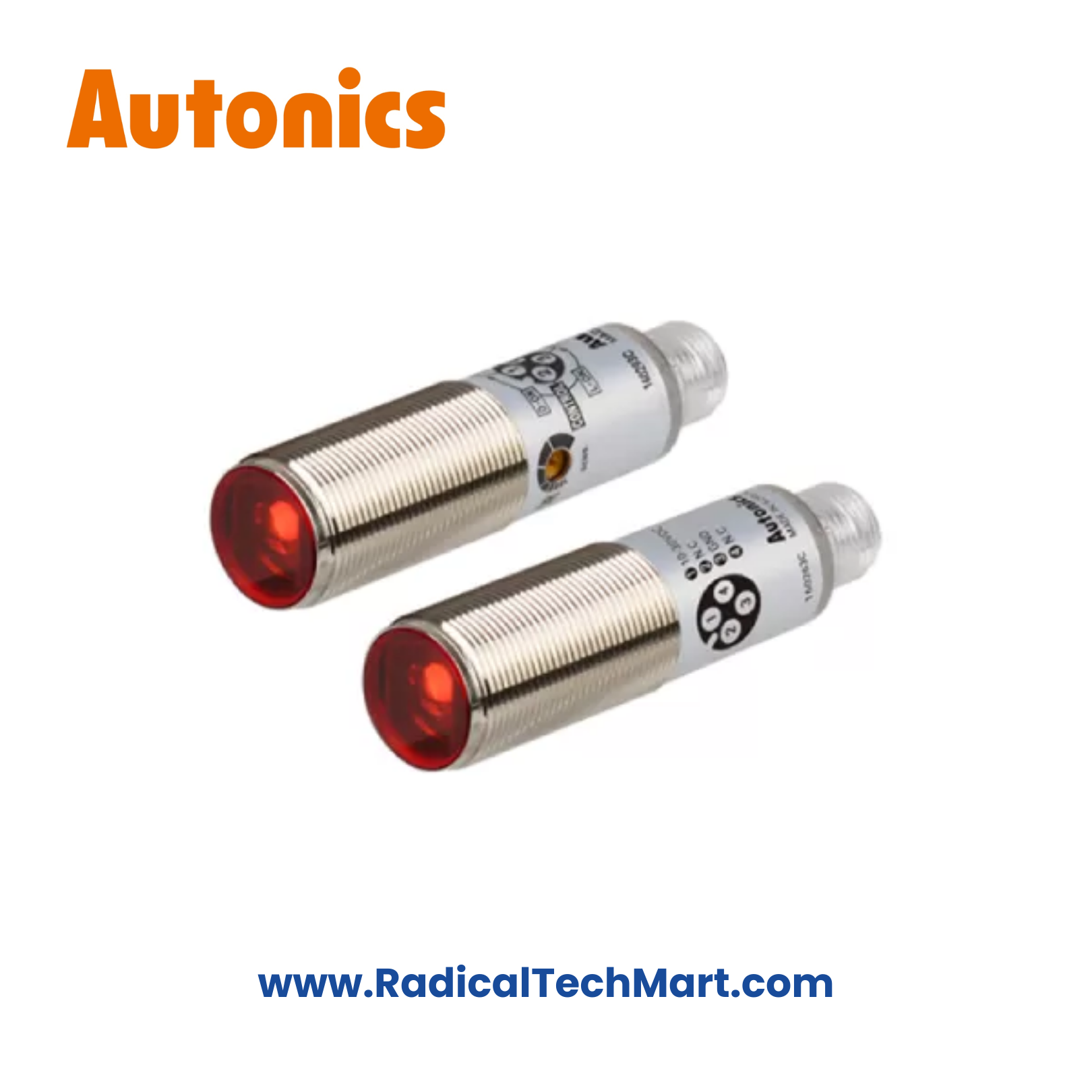

Autonics BRQM30M-TDTA-C-P Photoelectric Sensor
Autonics BRQM30M-TDTA-C-P Background Suppression Photoelectric Sensor (30 m, PNP, M18, IP67)
Extra-long-range background suppression (BGS) photoelectric sensor with up to 30 m sensing distance and PNP open-collector output.
Ensures precise detection independent of background distance, ideal for large conveyors and logistics automation.
The Autonics BRQM30M-TDTA-C-P is an extra-long-range background suppression (BGS) photoelectric sensor engineered for high-accuracy object detection over extended distances while ignoring background surfaces. With up to 30 m sensing range, PNP output, cable-type connection, and IP67 protection, it is ideal for large conveyors, logistics hubs, and heavy-duty industrial automation.
Key Features
Background suppression (BGS) sensing
Extra-long sensing distance: up to 30 m
Accurate detection independent of background distance
PNP open-collector output
Light-ON / Dark-ON selectable (control wire)
High immunity to ambient light and reflections
Fast response for high-speed systems
Rugged M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for flexible mounting
Cable type (-C) for secure industrial wiring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM30M-TDTA-C-P |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | Up to 30 m |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Connection Type | Cable type |
| Operating Temperature | −25 to +60 °C |
Applications
Extra-long conveyor object detection
Logistics & warehouse automation
Palletizing and sorting lines
Material handling systems
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM30M-TDTA-C-P Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What does “30M” indicate in this model?
A maximum sensing distance of up to 30 meters.
Q2. What is background suppression sensing?
It detects objects within a defined range and ignores background reflections beyond that distance.
Q3. Is this sensor affected by object color or shine?
No, BGS technology minimizes the effect of color and reflectivity.
Q4. Is this NPN or PNP?
This variant provides PNP open-collector output.
Q5. What does “-C” indicate?
It denotes a cable-type connection.
