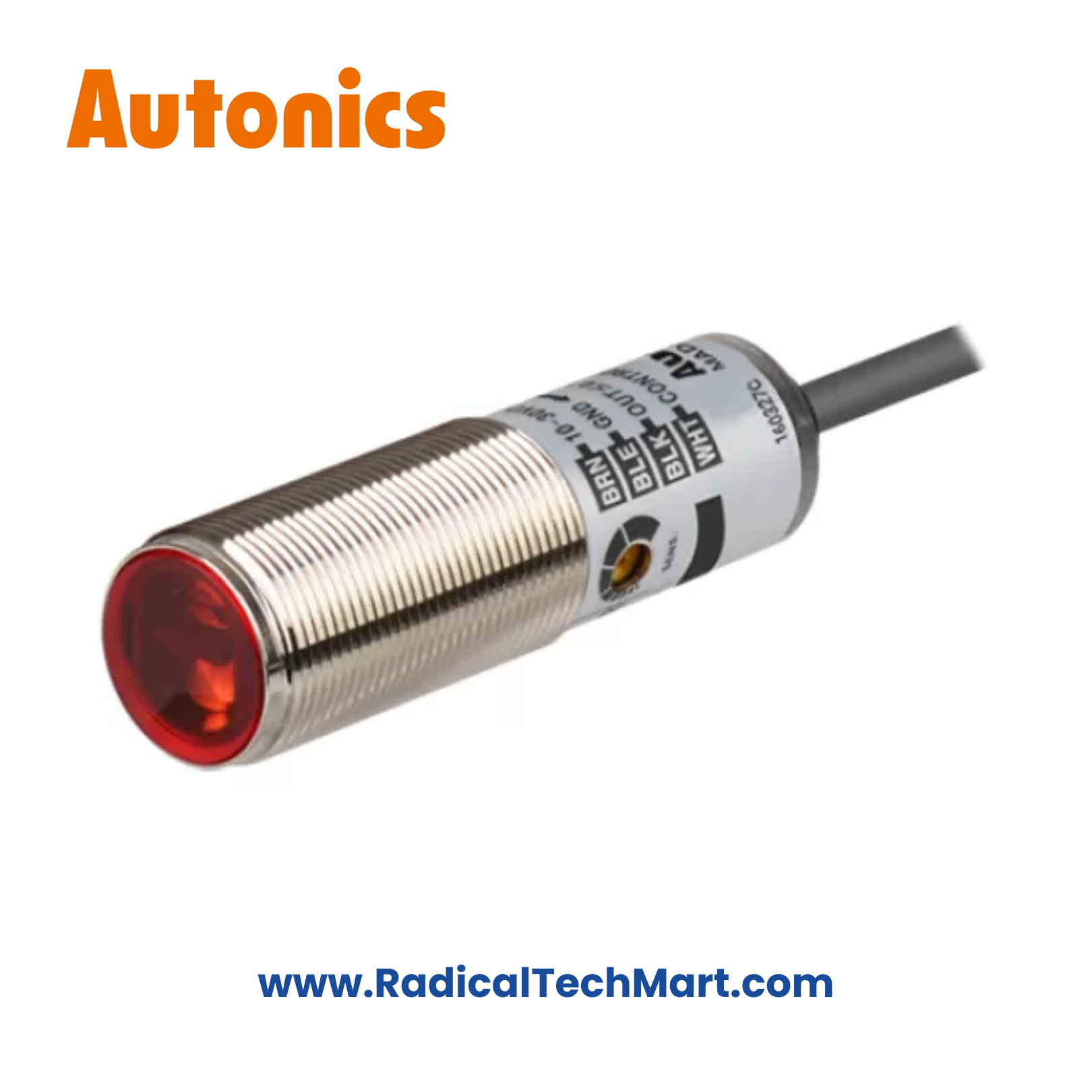

Autonics BRQM400-DDTA Photoelectric Sensor
Autonics BRQM400-DDTA Background Suppression Photoelectric Sensor (400 mm, NPN, M18, IP67)
Compact background suppression (BGS) photoelectric sensor with 400 mm sensing distance and NPN open-collector output.
Ensures reliable detection independent of object color or background distance, ideal for precision automation.
The Autonics BRQM400-DDTA is a background suppression (BGS) photoelectric sensor designed for accurate object detection at short to medium distances while ignoring background surfaces. With a fixed 400 mm sensing range, NPN output, and IP67 protection, it is ideal for conveyors, packaging machines, and compact OEM automation where detection accuracy is critical.
Key Features
Background suppression (BGS) diffuse sensing
Fixed sensing distance: 400 mm
Accurate detection regardless of background distance
NPN open-collector output
Light-ON / Dark-ON selectable (control wire)
High immunity to ambient light and reflections
Fast response for high-speed automation
Rugged M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM400-DDTA |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | 400 mm |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | NPN open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +60 °C |
Applications
Conveyor object detection
Packaging & labeling machines
Precision positioning systems
Part presence detection
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM400-DDTA Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What does “400” indicate in this model?
It indicates a fixed sensing distance of 400 mm.
Q2. What is background suppression sensing?
It detects objects at a set distance and ignores backgrounds beyond that range.
Q3. Is detection affected by object color or reflectivity?
No, BGS technology minimizes color and reflectivity influence.
Q4. Is this NPN or PNP?
This model provides NPN open-collector output.
Q5. Is it suitable for harsh industrial environments?
Yes, IP67 protection and metal housing make it suitable for demanding conditions.
