Autonics BW40-16P Area Sensor

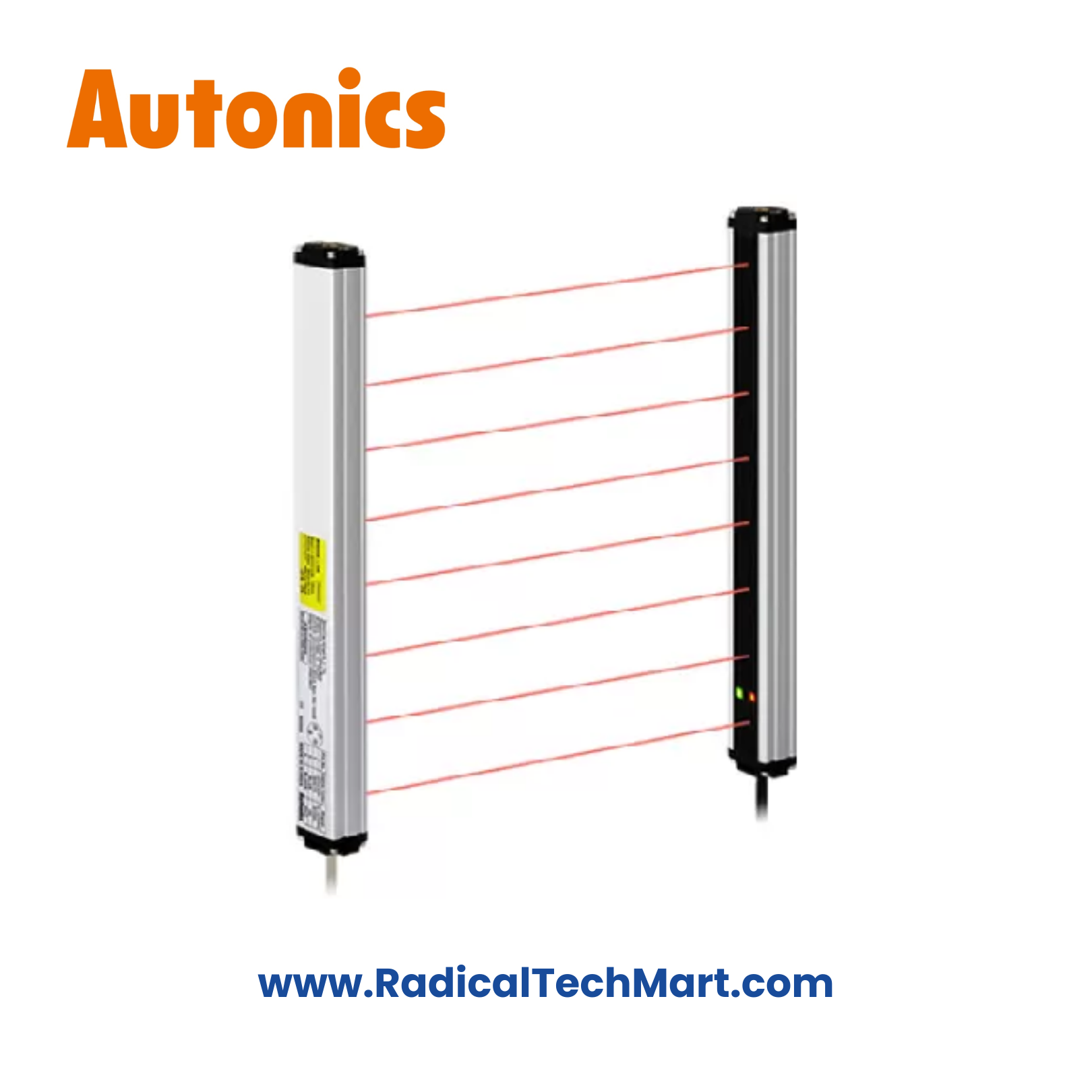

Autonics BW40-16P Single-Beam Area Sensor (40mm Pitch, 16 Axes, PNP)
Through-beam IR area sensor with 40 mm optical pitch and 16 optical axes for reliable object presence detection across a 600 mm sensing height. 0.1–7 m sensing distance, PNP open-collector output, IP65.
Customize
Share :
The Autonics BW40-16P is a through-beam type area sensor featuring 16 optical axes with 40 mm pitch, enabling stable and accurate detection over a wide sensing area. It is ideal for counting, presence detection, and area monitoring in industrial automation systems.
Designed with PNP open-collector output, IP65 protection, and advanced self-diagnostics, the BW40-16P ensures reliable operation even in harsh factory environments.
Key Features
Through-beam area sensing with emitter & receiver
40 mm optical axis pitch with 16 beams
Wide sensing height up to 600 mm
Long sensing distance up to 7 meters
PNP open-collector output
Fast response time ≤ 10 ms
Self-diagnosis & optical axis misalignment alarm
IP65 protection (IEC standard)
Mutual interference prevention (MASTER/SLAVE)
Technical Specifications
| Parameter | Value |
|---|---|
| Model | BW40-16P |
| Sensing Method | Through-beam |
| Optical Axis Pitch | 40 mm |
| Number of Optical Axes | 16 |
| Sensing Height | 600 mm |
| Sensing Distance | 0.1 to 7 m |
| Light Source | Infrared LED (850 nm, modulated) |
| Output Type | PNP open collector |
| Operation Mode | Light ON |
| Response Time | ≤ 10 ms |
| Power Supply | 12–24 V DC |
| Current Consumption | ≤ 120 mA |
| Load Current | ≤ 100 mA |
| Protection Rating | IP65 |
| Ambient Light Immunity | Up to 100,000 lux |
| Operating Temperature | −10 to +55 °C |
Applications
Packaging & wrapping machines
Conveyor object detection
Counting & sorting systems
Material handling automation
Bottle/carton detection lines
Industrial assembly stations
What’s in the Box?
Emitter unit × 1
Receiver unit × 1
Mounting brackets (A & B)
Fixing bolts
Instruction manual
FAQs
Q1. Is BW40-16P a safety light curtain?
No. This product is not a safety sensor and should not be used for personnel protection.
Q2. What is the advantage of 40 mm pitch?
It is suitable for detecting larger objects while covering a wider area with fewer beams.
Q3. Can multiple BW sensors be installed side by side?
Yes, using the MASTER/SLAVE interference prevention function.
Q4. What output does this model support?
PNP open-collector output.
Q5. Is the cable included?
No, M12 connector cables are sold separately.
