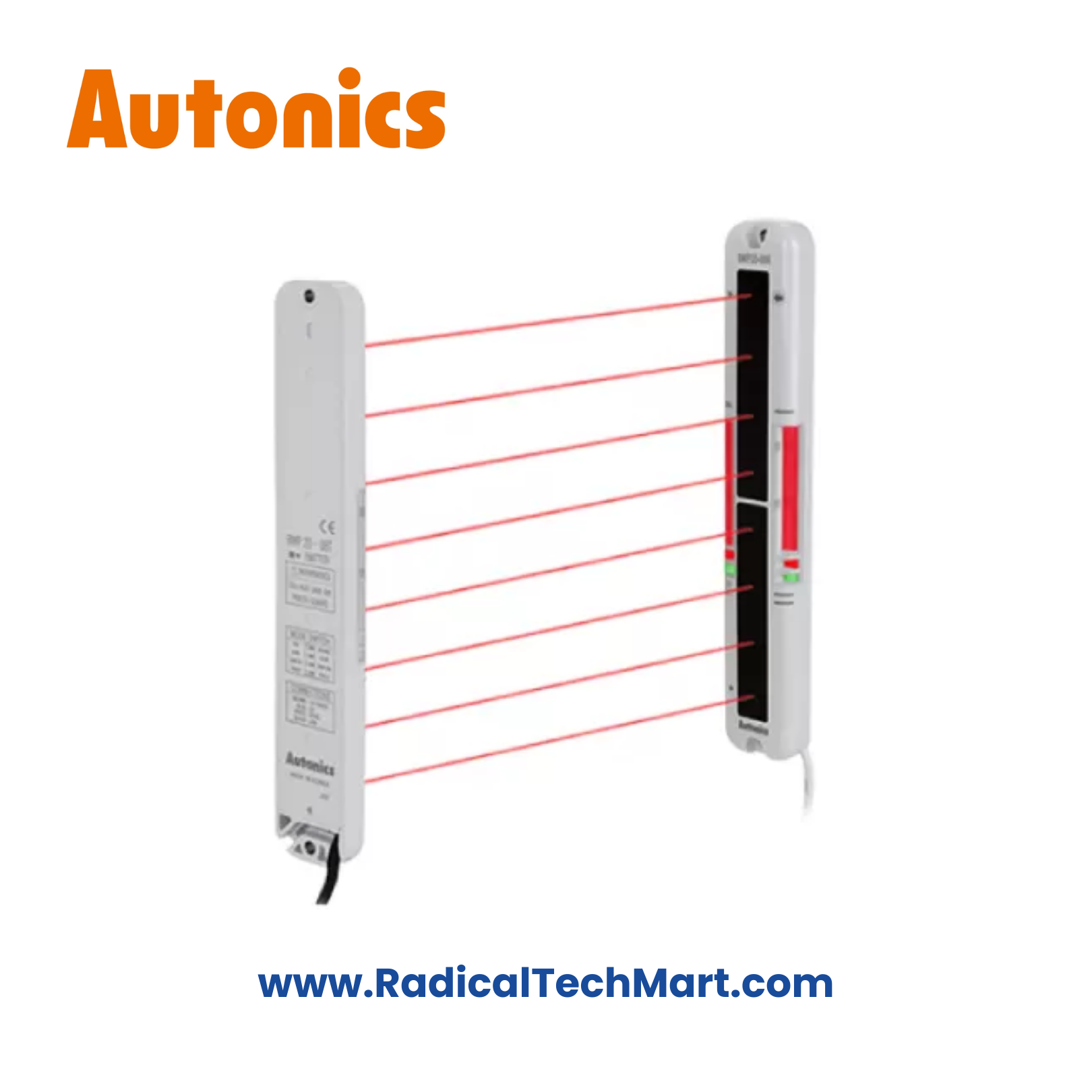

Autonics BWP20-12 Through-Beam Area Sensor (20 mm Pitch, NPN Output)
Autonics BWP20-12 is a high-resolution through-beam area sensor with 12 optical axes and 20 mm pitch, designed for accurate detection of small and closely spaced objects in industrial automation systems.
The Autonics BWP20-12 is a through-beam area sensor engineered for high-precision detection using a 20 mm optical axis pitch. With 12 optical beams, it provides an extended sensing height while maintaining high resolution, making it suitable for detecting small objects over a wider area.
Featuring NPN open-collector output, IP65 protection, and advanced self-diagnostic functions, the BWP20-12 delivers stable and reliable performance in demanding industrial environments.
Key Features
Through-beam area sensing (emitter + receiver)
Fine 20 mm optical axis pitch for high-resolution detection
12 optical axes
Sensing height: 220 mm
Long sensing distance up to 7 m
NPN open-collector output
Fast response time ≤ 10 ms
Optical axis misalignment alarm
Mutual interference prevention (MASTER / SLAVE)
IP65 protection for industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | BWP20-12 |
| Sensing Method | Through-beam |
| Optical Axis Pitch | 20 mm |
| Number of Optical Axes | 12 |
| Sensing Height | 220 mm |
| Sensing Distance | 0.1 – 7 m |
| Light Source | Infrared LED (850 nm, modulated) |
| Output Type | NPN open collector |
| Operation Mode | Light ON |
| Response Time | ≤ 10 ms |
| Power Supply | 12–24 V DC |
| Current Consumption | ≤ 120 mA |
| Load Current | ≤ 100 mA |
| Protection Rating | IP65 |
| Ambient Light Immunity | Up to 100,000 lux |
| Operating Temperature | −10 to +55 °C |
Applications
Precision object detection
Tablet, strip & component counting
Packaging & blister machines
Conveyor-based sorting systems
Assembly line automation
Material handling equipment
What’s in the Box?
Emitter unit × 1
Receiver unit × 1
Mounting brackets (A & B)
Fixing bolts
Instruction manual
FAQs
Q1. What is the advantage of 20 mm pitch in BWP20-12?
It enables high-resolution detection of small and closely spaced objects.
Q2. Is BWP20-12 suitable for safety or personnel protection?
No. This product is not a safety light curtain.
Q3. What output type does BWP20-12 provide?
NPN open-collector output.
Q4. Can multiple BWP20 sensors be installed together?
Yes, using the MASTER/SLAVE interference prevention function.
Q5. Are cables included with the sensor?
No, M12 connector cables are sold separately.
