A. Product Overview

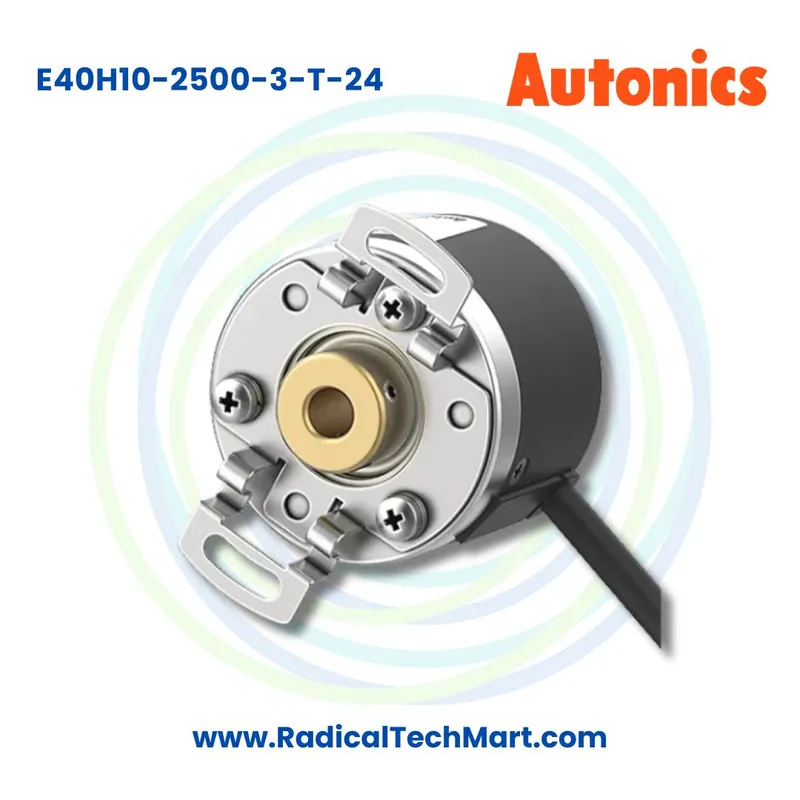

The Autonics E40H10-2500-3-T-24 Incremental Rotary Encoder is designed to convert mechanical shaft rotation into electrical pulse signals that can be processed by a PLC, counter, motion controller, or other automation equipment.

This model has a 40 mm encoder body and 10 mm hollow shaft, allowing it to be mounted directly onto a compatible rotating shaft.

Its high 2500 PPR resolution provides detailed rotational feedback for applications requiring accurate speed measurement, position tracking, direction detection, or distance calculation.

Key Specifications

• Brand: Autonics

• Model: E40H10-2500-3-T-24

• Product Type: Incremental Rotary Encoder

• Encoder Type: Hollow Shaft

• Encoder Size: 40 mm

• Shaft Inner Diameter: 10 mm

• Resolution: 2500 PPR

• Output Phases: A, B and Z

• Control Output: Totem Pole

• Power Supply: 12 to 24 VDC

• Power Supply Tolerance: Plus or minus 5 percent

• Maximum Response Frequency: 300 kHz

• Maximum Allowable Revolution: 5000 rpm

• Starting Torque: Maximum 50 gf.cm

• Starting Torque: Maximum approximately 0.0049 N.m

• Connection Type: Radial Cable Type

• Protection Rating: IP50

• Operating Temperature: Minus 10°C to 70°C

• Storage Temperature: Minus 25°C to 85°C

• Operating Humidity: 35 to 85 percent RH

• Storage Humidity: 35 to 90 percent RH

• Accessory: Bracket

• Approximate Weight: 120 g including packaging

The combination of 2500 PPR resolution and 300 kHz response frequency makes this encoder suitable for many industrial applications requiring high resolution rotational feedback.

B. Working Principle

The Autonics E40H10-2500-3-T-24 works by converting shaft rotation into a series of electrical pulses.

The encoder is mounted onto a compatible rotating shaft. As the shaft rotates, the internal encoder mechanism generates pulse signals corresponding to the movement.

With a resolution of 2500 PPR, the encoder provides 2500 pulse cycles per mechanical revolution on the primary output phase.

Basic Working Sequence

1. The encoder is mounted onto a 10 mm compatible shaft.

2. A 12 to 24 VDC supply is connected.

3. The machine shaft begins rotating.

4. The encoder detects the shaft movement.

5. Electrical pulses are produced through the A and B phases.

6. The Z phase produces a reference or index signal.

7. A PLC, counter, drive, or motion controller receives the pulses.

8. The control system uses these signals to calculate speed, direction, position, distance, or number of revolutions.

Role of A, B and Z Phases

A Phase:
Provides incremental pulse information corresponding to shaft rotation.

B Phase:
Provides another pulse signal shifted relative to A phase. The relationship between A and B helps determine the direction of shaft rotation.

Z Phase:
Provides an index reference signal associated with a complete shaft revolution.

Example

Suppose the E40H10-2500-3-T-24 is installed on a motor shaft.

As the motor rotates, the encoder produces pulse signals. The PLC can count these signals and use them to calculate:

• Motor RPM

• Number of revolutions

• Relative shaft position

• Clockwise or counterclockwise direction

• Machine travel

• Conveyor distance

This converts mechanical movement into information that an automation system can process.

C. Why Is Autonics E40H10-2500-3-T-24 Used?

The Autonics E40H10-2500-3-T-24 2500 PPR encoder is used when accurate rotational feedback is required from a motor, roller, shaft, or other rotating machine component.

Its high resolution makes it useful where a control system needs more detailed information about shaft movement.

Main Functions

It can be used for:

• Motor speed measurement

• RPM monitoring

• Shaft position monitoring

• Direction detection

• Rotation counting

• Length measurement

• Distance measurement

• Conveyor speed measurement

• Material feed monitoring

• Position feedback

• Machine synchronization

• Cutting length measurement

Common Applications

• Industrial automation machinery

• Packaging machines

• Conveyor systems

• Textile machinery

• Printing machines

• Cutting machines

• Winding machines

• Unwinding systems

• Filling machines

• Material handling equipment

• Machine tools

• Production lines

• Motor feedback systems

• Roller position monitoring

• PLC based automation

• Length measuring systems

• Factory automation equipment

• OEM machinery

Why Is 2500 PPR Useful?

Higher PPR means the encoder produces more pulse information for each revolution.

A 2500 PPR encoder can therefore provide more detailed rotational information than lower resolution models such as 100 PPR, 360 PPR, 500 PPR, or 1000 PPR encoders.

This is useful for applications requiring:

• Precise speed measurement

• Fine position monitoring

• Accurate material length measurement

• Better rotational resolution

• Detailed motion feedback

D. Suitable Buyers

The Autonics E40H10-2500-3-T-24 Hollow Shaft Incremental Encoder is suitable for:

• Industrial automation companies

• OEM machine manufacturers

• Machine builders

• Control panel manufacturers

• System integrators

• PLC programmers

• Automation engineers

• Motion control engineers

• Electrical engineers

• Maintenance engineers

• Conveyor manufacturers

• Packaging machine manufacturers

• Textile machinery manufacturers

• Printing machine manufacturers

• Cutting machine manufacturers

• Winding machine manufacturers

• Material handling companies

• Manufacturing plants

• Production line manufacturers

• Factory maintenance departments

It is particularly suitable for buyers requiring a 2500 PPR incremental rotary encoder with a 10 mm hollow shaft, A, B and Z phases, and Totem Pole output.

Frequently Asked Questions

1. What is the Autonics E40H10-2500-3-T-24?

The Autonics E40H10-2500-3-T-24 is a 40 mm hollow shaft incremental rotary encoder with 2500 PPR resolution designed for industrial rotational feedback applications.

2. What is the resolution of E40H10-2500-3-T-24?

The resolution is 2500 PPR.

3. What does 2500 PPR mean?

PPR means Pulses Per Revolution.

A 2500 PPR encoder generates 2500 pulse cycles during one complete shaft revolution on its primary output phase.

4. Is E40H10-2500-3-T-24 an incremental encoder?

Yes. It is an incremental rotary encoder.

5. Is this a hollow shaft encoder?

Yes. The E40H10-2500-3-T-24 has a hollow shaft design.

6. What is the hollow shaft diameter?

The shaft inner diameter is 10 mm.

7. What is the encoder body size?

The E40H series has an approximately 40 mm body size.

8. What output phases are available?

The encoder provides:

• A phase

• B phase

• Z phase

9. What is the purpose of A and B phases?

A and B phase signals provide incremental pulse information.

By comparing the phase relationship between A and B, compatible control equipment can determine the direction of rotation.

10. What is the Z phase used for?

The Z phase provides an index or reference signal related to one complete shaft revolution.

It can be used for homing, reference positioning, or revolution identification depending on the control system.

11. What type of output does this encoder have?

The E40H10-2500-3-T-24 uses a Totem Pole output.

12. What is the power supply requirement?

The encoder operates on 12 to 24 VDC with approximately plus or minus 5 percent voltage tolerance.
