A. Product Overview

The Autonics E40S6 Series is a range of compact incremental rotary encoders designed to convert mechanical shaft rotation into electrical pulse signals.

These pulse signals can be sent to a PLC, counter, speed controller, positioning system or other compatible automation equipment.

The models covered here are:

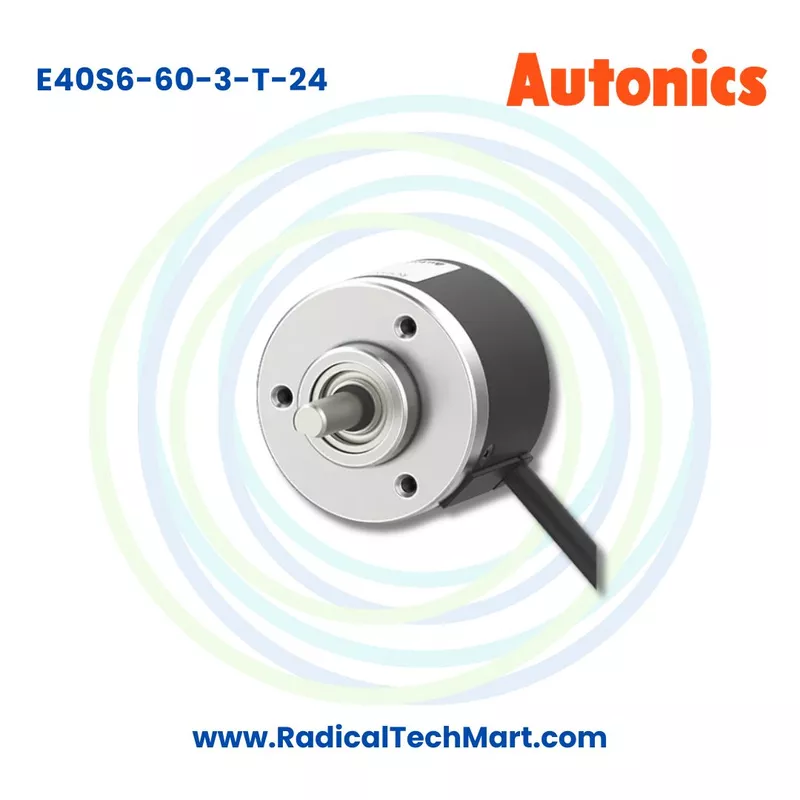

Autonics E40S6-60-3-T-24

• Resolution: 60 PPR

• Encoder type: Incremental

• Body diameter: 40 mm

• Shaft diameter: 6 mm

• Output phases: A, B and Z

• Output type: Totem pole

• Power supply: 12 to 24 VDC

Autonics E40S6-400-3-T-24

• Resolution: 400 PPR

• Encoder type: Incremental

• Body diameter: 40 mm

• Shaft diameter: 6 mm

• Output phases: A, B and Z

• Output type: Totem pole

• Power supply: 12 to 24 VDC

The main difference between these two models is the resolution.

The 60 PPR model generates 60 pulses for every shaft revolution, while the 400 PPR model generates 400 pulses for every shaft revolution.

Main Features

• Brand: Autonics

• Series: E40S

• Product type: Incremental rotary encoder

• Encoder construction: Shaft type

• Housing diameter: 40 mm

• Shaft diameter: 6 mm

• Available resolutions covered here: 60 PPR and 400 PPR

• Output phases: A, B and Z

• Control output: Totem pole

• Power supply: 12 to 24 VDC

• Maximum response frequency: 300 kHz

• Maximum allowable rotation speed: 5,000 rpm

• Compact design

• Suitable for speed measurement

• Suitable for rotational position measurement

• Suitable for direction detection

• Suitable for PLC and counter applications

• Suitable for industrial motion feedback

B. Working Principle

The Autonics E40S6 incremental rotary encoder converts shaft rotation into electrical pulses.

The encoder shaft is mechanically connected to the rotating part of a machine, motor, roller or other equipment.

When the shaft rotates, the encoder generates a sequence of electrical pulses.

The receiving controller counts these pulses to determine how much the shaft has rotated.

Resolution and PPR

PPR means Pulses Per Revolution.

The number indicates how many pulses are generated during one complete revolution of the encoder shaft.

60 PPR Encoder

The E40S6-60-3-T-24 generates 60 pulses per revolution.

One basic pulse represents:

360 degrees divided by 60 equals 6 degrees

This model is suitable when moderate resolution is sufficient.

400 PPR Encoder

The E40S6-400-3-T-24 generates 400 pulses per revolution.

One basic pulse represents:

360 degrees divided by 400 equals 0.9 degrees

The 400 PPR model therefore provides finer rotational measurement than the 60 PPR model.

A and B Phase Operation

The A and B output phases are shifted relative to each other.

By monitoring which phase changes first, a compatible controller can determine the direction of shaft rotation.

This allows the system to distinguish between:

• Clockwise rotation

• Counterclockwise rotation

Z Phase Operation

The Z phase provides an index pulse associated with each complete revolution.

It can be used as a reference position in suitable positioning and machine control applications.

C. Why Is the Autonics E40S6 Series Used?

1. Speed Measurement

The pulse frequency generated by the encoder can be used to calculate shaft or motor speed.

2. RPM Monitoring

The encoder can provide pulse feedback to a PLC, tachometer or controller for RPM measurement.

3. Position Measurement

By counting pulses, the control system can determine how far a rotating shaft has moved.

4. Rotation Direction Detection

The A and B phases allow compatible equipment to determine whether the shaft is rotating clockwise or counterclockwise.

5. Conveyor Monitoring

The encoder can be connected to a conveyor roller to measure conveyor movement, distance or speed.

6. Motor Feedback

It can provide rotational feedback from motors and machine shafts to automation systems.

7. Length Measurement

When connected to a measuring wheel or roller, rotary encoder pulses can be converted into linear distance.

This is useful in applications involving:

• Film

• Paper

• Cable

• Textile

• Sheet material

• Packaging material

8. Product Positioning

Pulse counting can be used to determine machine or product position in automated equipment.

9. PLC Integration

The pulse outputs can be connected to compatible high speed PLC inputs or counter modules.

10. Machine Synchronization

Encoder feedback can help synchronize rollers, conveyors, feeders and other moving machine components.

11. Production Monitoring

Rotation and pulse information can be used for machine cycle monitoring, length measurement and production control.

12. Compact Installation

The 40 mm encoder housing is suitable for machinery where installation space is limited.

D. Suitable Buyers

The Autonics E40S6 Series Incremental Rotary Encoder is suitable for:

• Industrial automation companies

• Machine manufacturers

• OEM machine builders

• PLC system integrators

• Control panel manufacturers

• Conveyor manufacturers

• Packaging machine manufacturers

• Printing machine manufacturers

• Textile machinery manufacturers

• CNC machine manufacturers

• Material handling companies

• Special purpose machine manufacturers

• Motor control system manufacturers

• Factory maintenance departments

• Production plants

• Automation engineers

• Electrical contractors

• Instrumentation companies

• Process automation companies

• Industrial maintenance teams

• Length measurement system manufacturers

• Motion control system integrators

It is especially suitable for buyers searching for a 60 PPR encoder, 400 PPR encoder, incremental rotary encoder, 40 mm rotary encoder, 6 mm shaft encoder, RPM encoder, motor encoder, PLC encoder or Autonics E40S6 encoder.

FAQ

1. What is the Autonics E40S6 Series?

The Autonics E40S6 Series is a range of incremental rotary encoders designed to convert mechanical shaft rotation into electrical pulse signals.

2. Which models are covered here?

The models covered are:

• E40S6-60-3-T-24

• E40S6-400-3-T-24

3. What is the resolution of E40S6-60-3-T-24?

The resolution is 60 PPR.

4. What is the resolution of E40S6-400-3-T-24?

The resolution is 400 PPR.

5. What does PPR mean?

PPR means Pulses Per Revolution.

It indicates how many pulses an incremental encoder generates during one complete shaft revolution.

6. What is the difference between 60 PPR and 400 PPR?

A 60 PPR encoder generates 60 pulses per shaft revolution.

A 400 PPR encoder generates 400 pulses per shaft revolution.

The 400 PPR model provides finer rotational measurement.

7. Which encoder provides better resolution?

The 400 PPR model provides higher resolution than the 60 PPR model.

8. When should I select the 60 PPR model?

The E40S6-60-3-T-24 can be selected when moderate resolution is sufficient for speed, counting or rotational monitoring.

9. When should I select the 400 PPR model?

The E40S6-400-3-T-24 is better suited when finer position, rotation or movement measurement is required.

10. What is the body diameter of the E40S6 encoder?

The encoder belongs to the 40 mm diameter E40 Series.

11. What is the shaft diameter?

The E40S6 models use a 6 mm shaft.

12. Is the E40S6 a shaft type encoder?

Yes. The E40S6 is a shaft type incremental rotary encoder.
