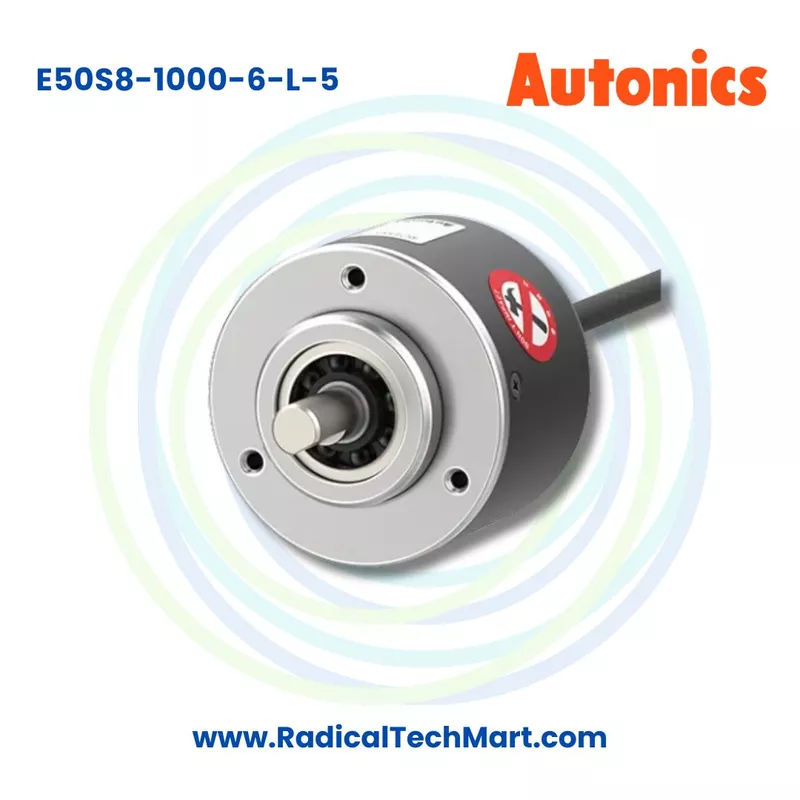

Autonics E50S8-1000-6-L-5 1000 PPR Line Driver Incremental Rotary Encoder

A. Product Overview

The Autonics E50S8-1000-6-L-5 1000 PPR Line Driver Incremental Rotary Encoder is designed to convert mechanical shaft rotation into electrical pulse signals that can be processed by PLCs, counters, motion controllers, drives, and other industrial control equipment.

The encoder belongs to the E50S series and features a 50 mm body with an 8 mm shaft. Its 1000 PPR resolution provides detailed rotational feedback, making it useful for applications requiring accurate measurement of speed, movement, direction, and relative position.

Key Specifications

• Brand: Autonics
• Model: E50S8-1000-6-L-5
• Product Type: Incremental Rotary Encoder
• Encoder Type: Shaft Type
• Body Diameter: 50 mm
• Shaft Diameter: 8 mm
• Resolution: 1000 PPR
• Control Output: Line Driver
• Output Phases: A, inverse A, B, inverse B, Z, inverse Z
• Power Supply: 5 VDC ±5 percent
• Maximum Response Frequency: 300 kHz
• Maximum Allowable Rotation: 5000 rpm
• Starting Torque: Maximum 70 gf.cm
• Starting Torque in SI Unit: Maximum 0.00686 N.m
• Connection Type: Axial Cable Type
• Protection Rating: IP50
• Operating Temperature: Minus 10°C to 70°C
• Storage Temperature: Minus 25°C to 85°C
• Operating Humidity: 35 to 85 percent RH
• Storage Humidity: 35 to 90 percent RH
• Included Accessories: 8 mm coupling and bracket
• Approximate Product Weight: 275 g

The combination of 1000 PPR resolution and line driver output makes this encoder particularly suitable for industrial systems where stable pulse transmission and accurate motion feedback are required.

B. Working Principle

The Autonics E50S8-1000-6-L-5 incremental rotary encoder converts rotation of its shaft into a series of electrical pulses.

When the connected motor or rotating mechanism turns, the encoder shaft rotates with it. The internal sensing system generates electrical pulse signals corresponding to the amount and direction of rotation.

With a resolution of 1000 pulses per revolution, the encoder generates 1000 basic pulse cycles for every complete shaft rotation.

The operating sequence can be understood as:

Machine shaft rotates → Encoder shaft rotates → Pulse signals are generated → Line driver output transmits the signals → PLC or controller processes the pulses → Speed, direction or position is calculated

A and B Phase Signals

The A and B phase signals allow the controller to determine both movement and rotational direction.

The controller compares the timing relationship between the A and B phases to determine whether the shaft is rotating clockwise or counterclockwise.

Z Phase Signal

The Z phase provides an index or reference signal during rotation.

This signal can be used for applications that require a reference position or repeatable rotational reference point.

Differential Line Driver Output

The encoder provides complementary signal pairs:

• A and inverse A
• B and inverse B
• Z and inverse Z

A differential line driver output is useful in industrial environments because the receiving controller can compare the complementary signals, helping maintain reliable pulse communication where electrical interference may be present.

C. Why Is the Autonics E50S8-1000-6-L-5 Used?

The E50S8-1000-6-L-5 is used when industrial equipment needs accurate information about the movement of a rotating shaft.

Speed Measurement

The pulse frequency generated by the encoder can be used to calculate motor or shaft speed.

Typical applications include:

• Motor speed monitoring
• Conveyor speed measurement
• Roller speed monitoring
• Machine spindle monitoring
• Production machinery speed feedback

Position Measurement

By counting encoder pulses, the controller can determine how far a rotating mechanism has moved.

This is useful in machines where accurate relative positioning is required.

Direction Detection

The A and B phase signals allow a compatible controller to determine the direction of rotation.

This makes the encoder suitable for applications involving forward and reverse movement.

Motor Feedback

The encoder can provide rotational feedback from motors and machine shafts to an industrial controller.

Conveyor Monitoring

The encoder can monitor conveyor rollers or drive shafts to determine conveyor speed and movement.

Length Measurement

When the encoder is mechanically connected to a measuring wheel or roller, rotational pulses can be converted into linear distance.

This principle can be used for measuring materials such as:

• Sheet material
• Wire
• Cable
• Paper
• Film
• Fabric
• Packaging material

Machine Synchronization

Encoder signals can help synchronize different rotating sections of an automated machine.

Production Counting

Encoder pulses can also be used as part of automated counting, indexing, and repetitive machine operations.

D. Suitable Buyers

The Autonics E50S8-1000-6-L-5 1000 PPR incremental encoder is suitable for OEMs, automation companies, machine manufacturers, maintenance teams, and industrial users requiring accurate rotational feedback.

Industrial Automation Companies

Automation integrators can use this encoder with compatible PLCs, counters, motion controllers, and automation systems.

Machine Manufacturers

OEM machine builders can integrate the encoder for speed, positioning, indexing, and motion feedback.

Packaging Machine Manufacturers

Packaging machinery frequently requires synchronization between motors, rollers, conveyors, feeders, and cutting mechanisms.

Conveyor System Manufacturers

The encoder can be connected to conveyor rollers or drive systems for speed and movement monitoring.

CNC and Machine Tool Manufacturers

Machine builders can use incremental encoder feedback for monitoring rotational movement and machine mechanisms.

Printing Machinery Manufacturers

Rotary encoders can help monitor roller movement, material feeding, speed, and length in printing equipment.

Textile Machinery Manufacturers

Textile machines can use rotary encoder feedback for rollers, feeding mechanisms, length measurement, and speed control.

Wire and Cable Manufacturers

Encoder pulses can be used with measuring rollers to calculate cable or wire length.

Material Handling Companies

Automated handling systems can use encoder signals for movement monitoring, positioning, and conveyor synchronization.

Control Panel Manufacturers

Panel builders requiring high speed encoder inputs can integrate this model with compatible industrial controllers.

Factory Maintenance Departments

Maintenance teams can use the E50S8-1000-6-L-5 as a replacement encoder when the machine specification requires an 8 mm shaft, 1000 PPR resolution, 5 VDC supply, and line driver output.

FAQ

1. What is the Autonics E50S8-1000-6-L-5?

The Autonics E50S8-1000-6-L-5 is a shaft type incremental rotary encoder with 1000 PPR resolution, 8 mm shaft, 5 VDC supply, and line driver output.

2. What is the resolution of E50S8-1000-6-L-5?

The encoder has a resolution of 1000 pulses per revolution.

3. What does 1000 PPR mean?

1000 PPR means the encoder generates 1000 basic pulse cycles for every complete revolution of the encoder shaft.

Higher pulse resolution allows the connected controller to monitor rotational movement in greater detail.

4. What is the shaft diameter?

The E50S8-1000-6-L-5 has an 8 mm shaft diameter.

5. What is the body size of this encoder?

It belongs to the 50 mm incremental rotary encoder series.

6. What is the power supply of E50S8-1000-6-L-5?

The required power supply is 5 VDC ±5 percent.

7. What output type does this encoder use?

It uses a line driver output.

8. What are the output phases?

The encoder provides:

• A phase
• Inverse A phase
• B phase
• Inverse B phase
• Z phase
• Inverse Z phase

9. What is a line driver rotary encoder?

A line driver encoder transmits complementary differential output signals. This configuration is commonly used where stable high speed pulse communication and improved resistance to electrical interference are important.

10. Why does the encoder have A and B phases?

The A and B phases provide rotational pulse information and allow a compatible controller to determine the direction of rotation by comparing the timing of the two signals.

11. What is the purpose of the Z phase?

The Z phase provides an index or reference pulse that can be used to establish a reference position during rotation.

12. Can this encoder measure motor speed?

Yes. A compatible controller can calculate motor or shaft speed by measuring the frequency of the encoder pulses.
