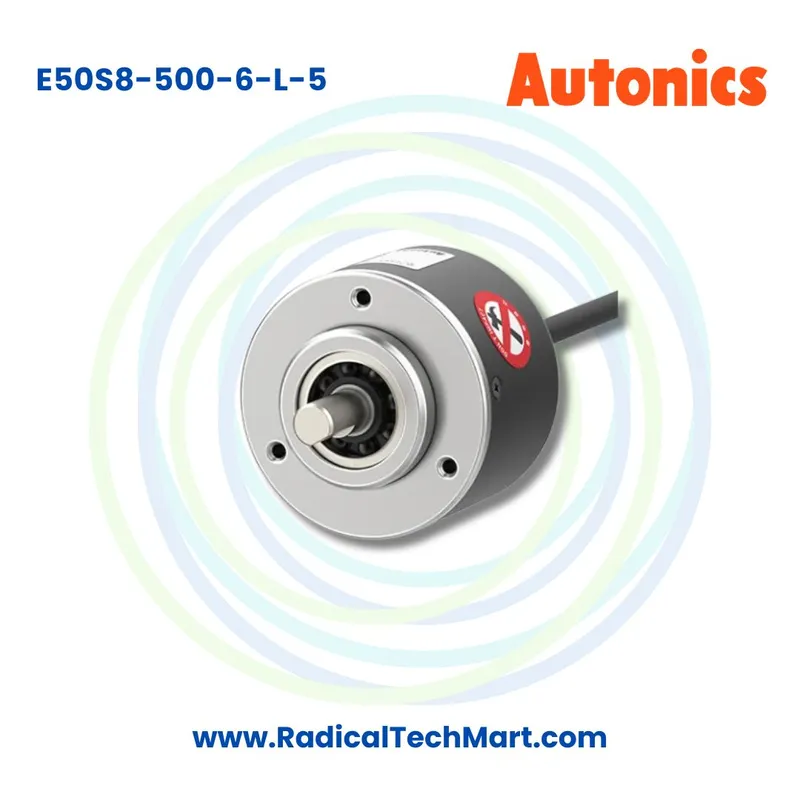

Autonics E50S8-500-6-L-5 500 PPR Line Driver Incremental Rotary Encoder

A. Product Overview

The Autonics E50S8-500-6-L-5 500 PPR Line Driver Incremental Rotary Encoder converts mechanical shaft rotation into electrical pulse signals that can be processed by PLCs, high speed counters, motion controllers, drives, and other industrial control equipment.

It belongs to the 50 mm shaft type incremental rotary encoder category and uses an 8 mm solid shaft for mechanical connection to rotating equipment.

The encoder provides 500 pulses per revolution, allowing a controller to monitor shaft movement, rotation speed, direction, and relative position.

Its differential line driver output makes it particularly suitable for industrial applications requiring reliable transmission of high speed encoder signals.

Key Specifications

• Brand: Autonics
• Model: E50S8-500-6-L-5
• Product Type: Incremental Rotary Encoder
• Encoder Type: Shaft Type
• Body Diameter: 50 mm
• Shaft Diameter: 8 mm
• Shaft Type: Solid Shaft
• Resolution: 500 PPR
• Output Phases: A, inverse A, B, inverse B, Z, inverse Z
• Control Output: Line Driver
• Power Supply: 5 VDC ±5 percent
• Maximum Response Frequency: 300 kHz
• Maximum Allowable Revolution: 5000 rpm
• Starting Torque: Maximum 70 gf.cm
• Starting Torque in SI Unit: Maximum 0.00686 N.m
• Connection Type: Axial Cable Type
• Protection Rating: IP50
• Operating Temperature: Minus 10°C to 70°C
• Storage Temperature: Minus 25°C to 85°C
• Operating Humidity: 35 to 85 percent RH
• Storage Humidity: 35 to 90 percent RH
• Accessories: 8 mm Coupling and Bracket

B. Working Principle

The Autonics E50S8-500-6-L-5 incremental rotary encoder converts rotation of its shaft into a sequence of electrical pulses.

When the motor, roller, or machine shaft rotates, the encoder shaft rotates with it.

The internal sensing mechanism detects this rotation and generates electrical pulse signals.

The working sequence can be understood as:

Machine shaft rotates → Encoder shaft rotates → Pulse signals are generated → Line driver transmits signals → PLC or controller receives pulses → Speed, direction or position is calculated

500 PPR Resolution

The encoder provides 500 pulses per revolution.

This means that for every complete mechanical revolution, the encoder generates 500 basic pulse cycles.

The connected controller can count these pulses to determine how much the shaft has rotated.

A and B Phase Signals

The encoder provides A and B phase signals.

These two signals are electrically phase shifted from each other.

By comparing the timing of the A and B phases, a compatible controller can determine whether the shaft is rotating clockwise or counterclockwise.

Z Phase Signal

The Z phase provides a reference or index pulse.

It can be used when the control system needs a repeatable reference point during each revolution.

Differential Line Driver Output

The encoder provides complementary signal pairs:

• A and inverse A
• B and inverse B
• Z and inverse Z

The receiving device compares each normal signal with its inverse signal.

This differential transmission method provides reliable pulse communication and helps reduce the effect of electrical noise in industrial environments.

C. Why Is the Autonics E50S8-500-6-L-5 Used?

The E50S8-500-6-L-5 is used when industrial machinery needs accurate information about rotating movement.

Speed Measurement

The frequency of encoder pulses can be used to calculate rotational speed.

Typical applications include:

• Motor speed monitoring
• Conveyor speed measurement
• Roller speed monitoring
• Spindle speed measurement
• Production machinery speed feedback

Relative Position Measurement

A controller can count the pulses generated by the encoder to determine relative shaft position.

This is useful in automated machines where movement must be monitored accurately.

Direction Detection

The relationship between the A and B phase signals allows compatible control equipment to determine rotational direction.

Motor Feedback

The encoder can provide rotational feedback from motors and machine shafts to PLCs, controllers, or motion systems.

Conveyor Monitoring

The encoder can be mechanically connected to a conveyor drive or roller to monitor movement and speed.

Length Measurement

When connected to a measuring wheel or roller, encoder rotation can be converted into linear distance.

This can be useful for measuring:

• Paper
• Film
• Fabric
• Cable
• Wire
• Sheet material
• Packaging material

Machine Synchronization

Encoder signals can be used to synchronize different rotating or moving sections of automated equipment.

Angle Measurement

The 500 PPR pulse output can be used by a suitable controller to calculate the angular movement of a shaft.

Production Machinery Feedback

The encoder can provide feedback for automated machine sequences where movement, speed, or position needs to be verified before the next operation begins.

D. Suitable Buyers

The Autonics E50S8-500-6-L-5 500 PPR Incremental Rotary Encoder is suitable for OEMs, machine manufacturers, automation integrators, panel builders, and industrial maintenance teams.

Industrial Automation Companies

Automation integrators can connect the encoder to compatible PLCs, high speed counters, and motion controllers for speed, direction, and position monitoring.

Machine Manufacturers

OEM machine builders can use the encoder for rotational feedback, indexing, movement measurement, and machine synchronization.

Packaging Machine Manufacturers

Packaging machines often require accurate monitoring of rollers, conveyors, film feeding mechanisms, and motor movement.

Conveyor System Manufacturers

The encoder can provide speed and movement feedback from conveyor drive systems.

CNC Machine Manufacturers

CNC and machine tool systems can use encoder feedback for monitoring rotational movement and machine mechanisms.

Printing Machine Manufacturers

Printing machines can use encoders for roller speed, material movement, registration related control, and length measurement.

Textile Machine Manufacturers

Textile machinery can use encoder feedback for roller movement, speed monitoring, material feeding, and length measurement.

Wire and Cable Manufacturers

Encoder pulses can be used with suitable measuring mechanisms for monitoring wire or cable length.

Special Purpose Machine Manufacturers

SPM manufacturers can integrate the encoder into automated equipment requiring rotational position, speed, or direction feedback.

Control Panel Manufacturers

Panel manufacturers can integrate the encoder with compatible high speed PLC inputs and industrial controllers.

Factory Maintenance Departments

Maintenance teams can use this model as a replacement encoder when the existing machine requires:

• 500 PPR resolution
• 8 mm shaft
• 5 VDC supply
• Line driver output
• Six output phases
• 50 mm encoder body

FAQ

1. What is the Autonics E50S8-500-6-L-5?

The Autonics E50S8-500-6-L-5 is a shaft type incremental rotary encoder with 500 PPR resolution, 8 mm solid shaft, 5 VDC supply, and line driver output.

2. What is the resolution of E50S8-500-6-L-5?

The encoder has a resolution of 500 pulses per revolution.

3. What does 500 PPR mean?

500 PPR means the encoder generates 500 basic pulse cycles for every complete revolution of its shaft.

4. What is the shaft diameter?

The encoder has an 8 mm shaft diameter.

5. Is the encoder shaft solid or hollow?

The E50S8-500-6-L-5 is a solid shaft incremental encoder.

6. What is the body diameter?

It belongs to the 50 mm diameter encoder series.

7. What power supply does E50S8-500-6-L-5 require?

It requires a 5 VDC supply with ±5 percent tolerance.

8. What output type does the encoder use?

It uses a line driver output.

9. What output phases are provided?

The encoder provides:

• A
• Inverse A
• B
• Inverse B
• Z
• Inverse Z

10. What is a line driver encoder?

A line driver encoder transmits complementary differential signals. This method provides reliable pulse transmission and improved resistance to electrical interference.

11. What is the purpose of A and B phases?

The A and B phase signals provide rotational pulse information and allow a compatible controller to determine the direction of rotation.

12. What is the Z phase used for?

The Z phase provides an index or reference pulse that can be used as a repeatable reference point during shaft rotation.

13. Can E50S8-500-6-L-5 detect clockwise and counterclockwise rotation?

Yes. A compatible controller can determine rotational direction by comparing the A and B phase signals.

14. Can this encoder measure motor speed?

Yes. The pulse frequency can be processed by a compatible controller to calculate shaft or motor speed.

15. Can the encoder measure position?

Yes. It can provide relative position feedback by allowing the controller to count the generated pulses.
