A. Product Overview

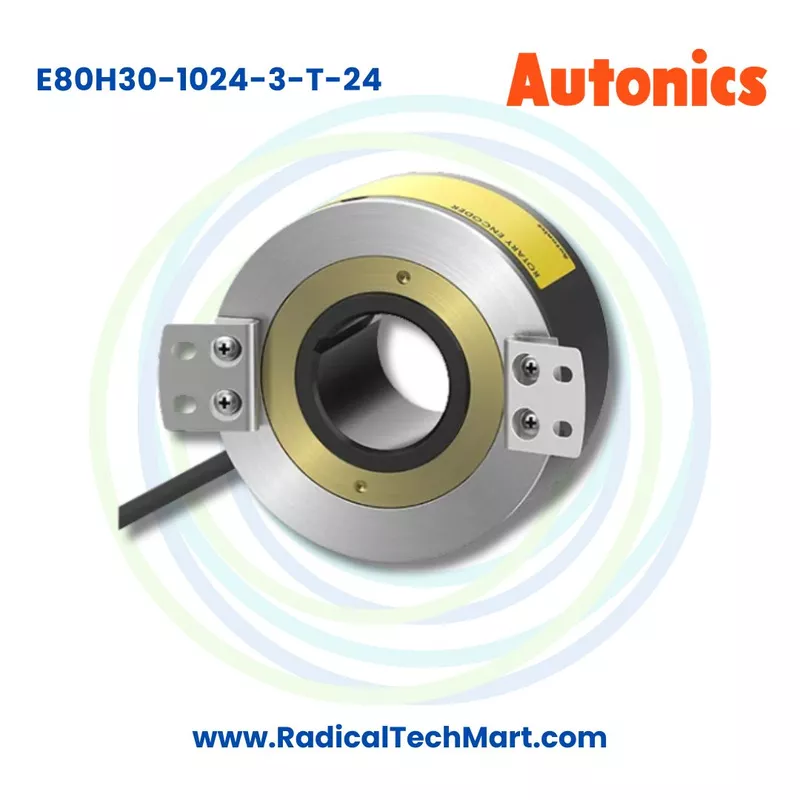

The Autonics E80H30-1024-3-T-24 is an 80 mm diameter incremental rotary encoder with a 30 mm hollow shaft.

It generates electrical pulse signals as the connected shaft rotates. These pulses can be received by PLCs, counters, motion controllers, drives, and other industrial control equipment to determine rotational movement.

The model provides 1024 pulses per revolution, allowing relatively precise monitoring of rotational position and speed.

Key Specifications

• Brand: Autonics

• Model: E80H30-1024-3-T-24

• Product Type: Incremental Rotary Encoder

• Encoder Type: Hollow Shaft

• Housing Diameter: 80 mm

• Hollow Shaft Inner Diameter: 30 mm

• Resolution: 1024 PPR

• Output Phases: A, B and Z

• Control Output: Totem Pole

• Power Supply: 12 to 24 VDC

• Power Supply Tolerance: Approximately plus or minus 5 percent

• Maximum Response Frequency: 200 kHz

• Maximum Allowable Revolution: 3600 rpm

• Starting Torque: Maximum 200 gf cm

• Starting Torque in SI Unit: Maximum approximately 0.0196 N m

• Connection Type: Radial Cable Type

• Protection Rating: IP50

• Operating Temperature: minus 10°C to 70°C

• Storage Temperature: minus 25°C to 85°C

• Operating Humidity: 35 to 85 percent RH

• Approximate Weight: 560 g

• Installation Accessory: Spring Bracket

The hollow shaft construction makes installation particularly convenient where the encoder needs to be mounted directly onto an existing rotating shaft.

B. Working Principle

The Autonics E80H30-1024-3-T-24 works by converting mechanical shaft rotation into electrical pulse signals.

The encoder is mounted directly around a rotating motor or machine shaft.

As the shaft rotates, the encoder produces a defined number of electrical pulses.

Because this model has a resolution of 1024 PPR, one complete mechanical revolution generates 1024 pulse cycles on the primary output channel.

The basic working process is:

1. The encoder is installed directly on the rotating shaft.

2. The shaft begins rotating.

3. The internal encoder mechanism detects rotational movement.

4. Electrical pulse signals are generated.

5. A and B phase signals provide rotational pulse information.

6. The phase relationship between A and B allows the control system to determine rotation direction.

7. The Z phase provides a reference pulse associated with a complete revolution.

8. A PLC, counter, motion controller, or drive processes these signals.

9. The system calculates parameters such as speed, direction, position, or rotational distance.

Example

Suppose the encoder is installed on a motor shaft.

If the motor completes one full revolution, the encoder generates 1024 PPR output signals.

A PLC can count these pulses to calculate:

• Motor speed

• Number of revolutions

• Shaft position

• Rotational direction

• Travel distance when mechanically linked to a roller or conveyor

This allows the control system to monitor machine movement accurately.

C. Why Is Autonics E80H30-1024-3-T-24 Used?

The Autonics E80H30-1024-3-T-24 hollow shaft encoder is used when an industrial machine requires feedback about rotating movement.

Unlike a simple proximity sensor that may only detect the presence of an object, an incremental rotary encoder continuously generates pulses as the shaft rotates.

These pulses allow the automation system to measure movement more precisely.

Main Parameters It Can Help Measure

• Rotational speed

• Shaft position

• Rotation direction

• Number of revolutions

• Angular movement

• Machine movement

• Conveyor travel

• Linear distance when mechanically converted from rotary motion

Common Applications

• Electric motors

• Conveyor systems

• Industrial machinery

• Packaging machines

• Printing machines

• Textile machinery

• Material handling equipment

• Machine tools

• Automated production lines

• Motor speed monitoring

• Position feedback systems

• Length measurement systems

• Cutting machines

• Rolling machines

• Winding machines

• Unwinding machines

• Industrial automation systems

• PLC based machine control

• Factory automation equipment

Why Use a Hollow Shaft Encoder?

A major advantage of the E80H30 series is its hollow shaft construction.

The encoder can be mounted directly onto the rotating shaft.

This can eliminate the need for a separate flexible coupling between the machine shaft and encoder shaft.

Potential advantages include:

• Easier mechanical installation

• Compact mounting

• Reduced coupling components

• Direct rotational feedback

• Better integration with motor shafts

• Simplified machine design

D. Suitable Buyers

The Autonics E80H30-1024-3-T-24 1024 PPR Hollow Shaft Encoder is suitable for:

• Industrial automation companies

• Machine manufacturers

• OEM machine builders

• Control panel manufacturers

• System integrators

• PLC programmers

• Motion control engineers

• Automation engineers

• Electrical engineers

• Maintenance engineers

• Motor manufacturers

• Conveyor manufacturers

• Packaging machine manufacturers

• Printing machine manufacturers

• Textile machine manufacturers

• Material handling companies

• Manufacturing plants

• Factory maintenance departments

• Production line manufacturers

• Industrial equipment manufacturers

It is particularly suitable for buyers requiring a 30 mm hollow shaft incremental encoder with 1024 PPR resolution, A, B and Z outputs, and Totem Pole control output.

Frequently Asked Questions

1. What is the Autonics E80H30-1024-3-T-24?

The Autonics E80H30-1024-3-T-24 is an incremental rotary encoder with a 30 mm hollow shaft and 1024 PPR resolution for industrial speed, position, direction, and rotational movement measurement.

2. What is the resolution of E80H30-1024-3-T-24?

The resolution is 1024 PPR.

3. What does 1024 PPR mean?

PPR means Pulses Per Revolution.

A resolution of 1024 PPR means the encoder generates 1024 pulse cycles during one complete shaft revolution on its primary output channel.

4. Is E80H30-1024-3-T-24 an incremental encoder?

Yes. It is an incremental rotary encoder.

5. Is it a hollow shaft encoder?

Yes. The E80H30-1024-3-T-24 uses a hollow shaft design.

6. What is the hollow shaft diameter?

The shaft inner diameter is 30 mm.

7. What is the encoder body diameter?

The E80H series uses an approximately 80 mm diameter housing.

8. What output phases are available?

The E80H30-1024-3-T-24 provides:

• A phase

• B phase

• Z phase

9. What is the purpose of A and B phases?

A and B pulse signals are used for rotational measurement.

Their phase relationship can also help the connected controller determine whether the shaft is rotating clockwise or counterclockwise.

10. What is the purpose of the Z phase?

The Z phase provides a reference pulse associated with shaft revolution and can be used as an index or reference position signal.

11. What output type does E80H30-1024-3-T-24 use?

This model uses a Totem Pole control output.

12. What is the power supply?

The required power supply is 12 to 24 VDC with approximately plus or minus 5 percent tolerance.
