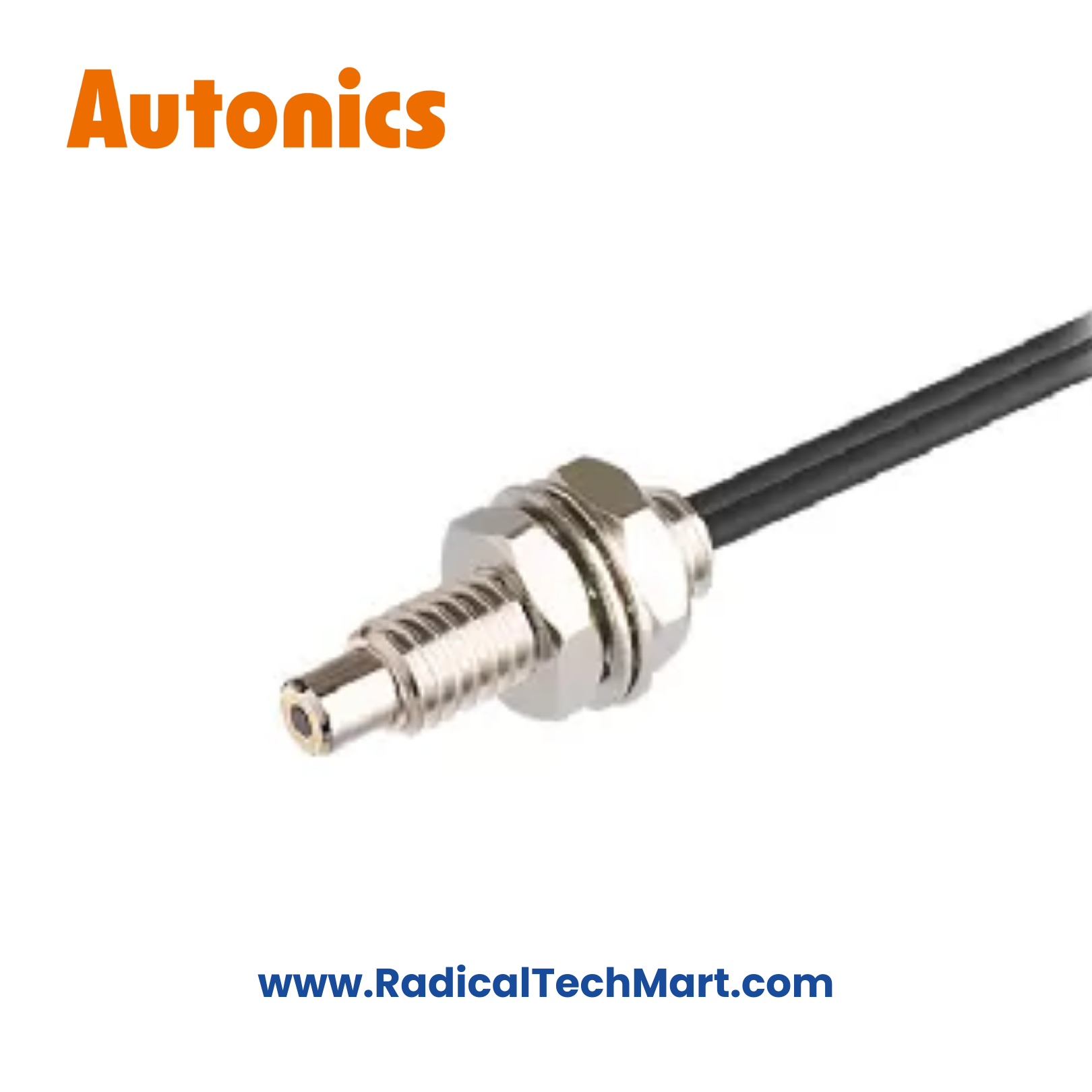

Autonics FD-420-05 Fiber Optic Sensor
Autonics FD-420-05 Diffuse Reflective Fiber Optic Sensor Unit
Autonics FD-420-05 is a diffuse reflective fiber optic sensing unit with 2 m of FREE-CUT plastic fiber, engineered for reliable small-object detection in compact and harsh industrial environments when paired with Autonics fiber amplifiers.
The Autonics FD-420-05 is a diffuse reflective type fiber optic sensor unit from the FD/GD Series, designed for accurate detection of small objects in tight installation spaces, high-vibration areas, and electrically noisy environments.
It features a 2 m FREE-CUT plastic fiber cable, allowing on-site length adjustment using a compatible cutter. The FD-420-05 must be used with an Autonics fiber optic amplifier (BF3RX, BF4R, BF5R series, etc.) to form a complete sensing system.
Key Features
Diffuse reflective fiber optic sensing unit
2 m FREE-CUT plastic fiber cable
Suitable for very small object detection
Compact head for confined installations
Resistant to EMI and electrical noise
Reliable performance with Autonics BF-series amplifiers
Easy routing and installation in machines
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FD-420-05 |
| Fiber Type | Plastic fiber |
| Sensing Type | Diffuse reflective |
| Cable Length | 2 m (FREE CUT) |
| Minimum Bend Radius | R15 |
| Minimum Detectable Object | Small/fine targets (diffuse type) |
| Ambient Temperature | −40 to +70 °C |
| Compatible Amplifiers | BF3RX, BF4R, BF5R, BFX, BFN |
| Head Type | Compact/threaded |
| Weight | Approx. 100 g |
Applications
Small component detection
Electronics & PCB assembly lines
Packaging and labeling machines
Conveyor object detection
Semiconductor and inspection equipment
Automation lines with limited mounting space
What’s in the Box?
Autonics FD-420-05 Fiber Optic Sensor Unit
FREE-CUT fiber cable
Instruction leaflet
FAQs
Q1. Can FD-420-05 be used alone?
No. It must be connected to a compatible Autonics fiber optic amplifier.
Q2. What does FREE-CUT mean?
The fiber cable can be cut to the required length on-site using a proper cutter.
Q3. What sensing method does this model use?
It uses a diffuse reflective sensing principle.
Q4. Is it suitable for high-temperature environments?
It supports ambient temperatures up to +70°C.
Q5. Which amplifiers are compatible?
BF3RX, BF4R, BF5R, BFX, and BFN series amplifiers.
