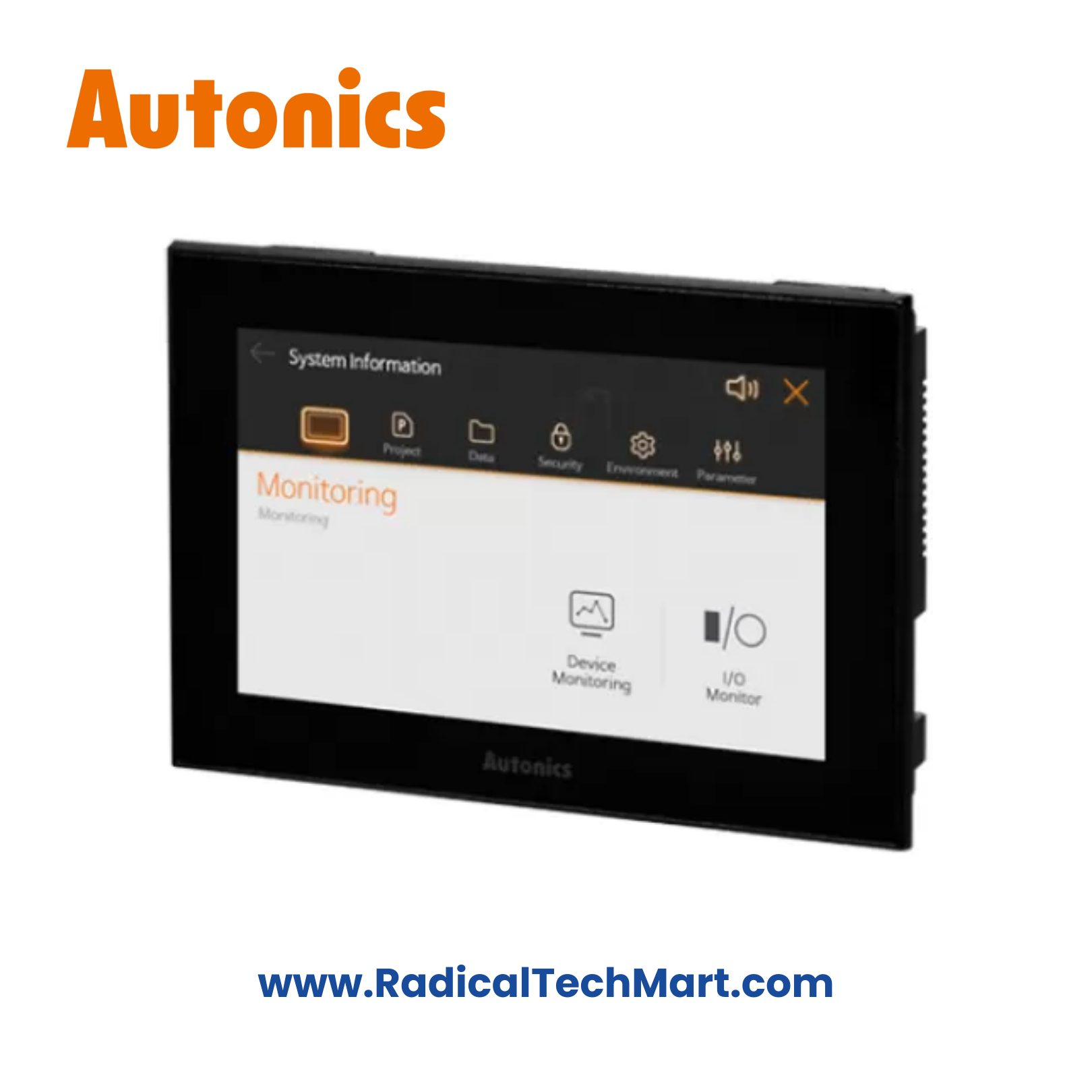

Autonics LP-A070-T9D6-C5T Logic Panel
Autonics LP-A070-T9D6-C5T Logic Panel (7″ Color LCD, 16 I/O)
Autonics LP-A070-T9D6-C5T is a 7-inch color LCD logic panel with built-in PLC and HMI, featuring 16 digital inputs and 16 transistor outputs, designed for compact machine automation and control panels.
Customize
Share :
The Autonics LP-A070-T9D6-C5T is a logic panel combining PLC and HMI functionality in a single compact unit. It features a 7.0-inch TFT color LCD touch screen with 16,777,216 colors, built-in 16 digital inputs and 16 transistor outputs, and multiple communication interfaces for seamless integration with industrial automation systems.
Designed for space-constrained control panels, this logic panel reduces wiring, saves panel space, and simplifies system architecture. Programming and screen design are performed using Autonics atLogic and atDesigner software.
Key Features
7.0-inch TFT color LCD touch panel
Integrated PLC + HMI all-in-one design
16 digital inputs + 16 transistor outputs
High-brightness display with software luminance control
Multiple communication interfaces (RS232C, RS422, USB, Ethernet)
Supports micro SD card (up to 32 GB)
DIN-panel mounting with IP65 front protection
Suitable for compact automation panels and OEM machines
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LP-A070-T9D6-C5T |
| Screen Size | 7.0 inch |
| LCD Type | TFT Color LCD |
| Resolution | 800 × 480 pixels |
| Display Colors | 16,777,216 colors |
| Touch Type | Analog resistive |
| Power Supply | 24 V DC |
| Digital Inputs | 16 points (source input) |
| Digital Outputs | 16 points (transistor, sink output) |
| Rated Output Current | 0.1 A/point, 1.6 A/COM |
| Communication | RS232C, RS422, USB Host, USB Device, Ethernet |
| External Storage | Micro SD up to 32 GB |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 to +50 °C |
| Mounting | Panel mount |
| Weight (Package) | Approx. 0.74 kg |
Applications
Packaging machinery
Small automation machines
Conveyor control systems
OEM control panels
Process automation skids
Stand-alone machine control
What’s in the Box?
Autonics LP-A070 Logic Panel (with built-in battery)
Power connector
Fixing brackets (7.0-inch set)
Instruction manual
FAQs
Q1. Is this a PLC or HMI?
It is a combined PLC + HMI logic panel in a single unit.
Q2. How many I/O points are available?
It provides 16 digital inputs and 16 transistor outputs.
Q3. What software is used for programming?
Autonics atLogic for PLC programming and atDesigner for screen design.
Q4. Does it support Ethernet communication?
Yes, Ethernet (10/100Base-T) is supported.
Q5. Is the front panel waterproof?
Yes, the front panel has IP65 protection.
