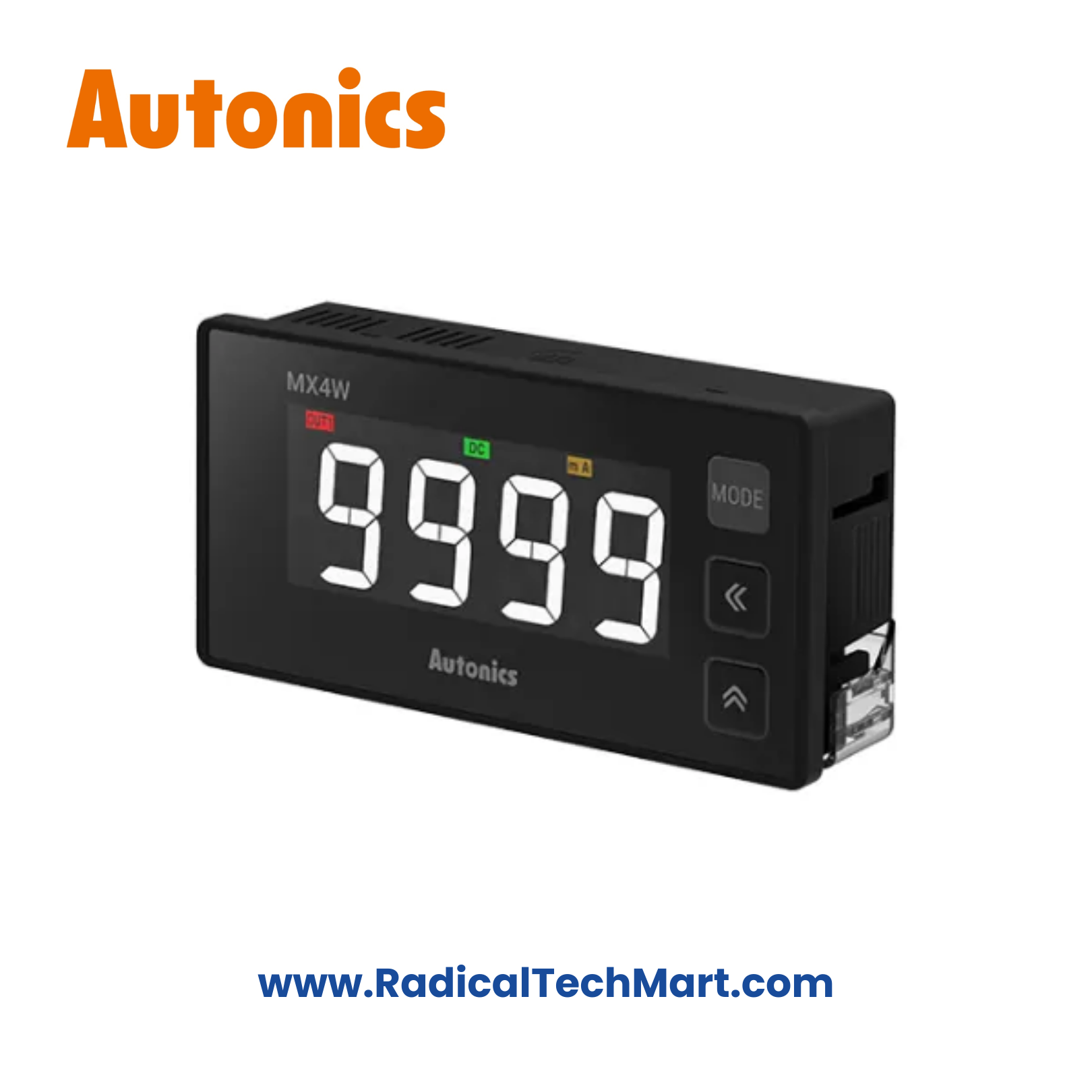

Autonics MX4W-A-F1 Panel Meter
Autonics MX4W-A-F1 AC/DC Current LCD Panel Meter with NPN Output
Compact 96×48 mm LCD multi-panel meter for AC & DC current measurement with preset NPN open-collector output.
Designed for space-saving control panels, OEM machinery, and industrial automation systems.
The Autonics MX4W-A-F1 is a compact LCD multi-panel meter designed for accurate AC and DC current measurement in industrial control panels. With its ultra-short 20 mm rear depth, universal power supply, and NPN preset output, it is ideal for space-constrained panels and OEM machinery.
Key Features
Measures AC & DC current (up to 5 A max.)
Clear 12-segment LCD display with white PV characters
Ultra-compact design (80% shorter depth vs MT4W)
NPN open-collector preset output (OUT1 / OUT2)
Supports 4–20 mA current signals
Peak value monitoring & zero adjustment
Universal power supply 24–240 VAC / VDC
IP54 front protection (panel mounted)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MX4W-A-F1 |
| Input Type | AC/DC Current |
| Max Allowable Input | AC 5 A / DC 5 A |
| Display Range | −9999 to 9999 |
| Display Type | LCD, 12-segment |
| Display Height | 19 mm |
| Accuracy (23 ±5 °C) | ±0.1% F.S. (DC), ±0.3% F.S. (AC) |
| Output Type | NPN open-collector |
| Load Voltage | ≤ 30 VDC |
| Load Current | ≤ 100 mA |
| Power Supply | 24–240 VAC / VDC |
| Protection Rating | IP54 (front) |
| Operating Temperature | −10 to +50 °C |
Applications
OEM machinery control panels
AC/DC current monitoring
Electrical & power distribution panels
Test benches & R&D panels
Compact automation enclosures
Industrial process equipment
What’s in the Box?
Autonics MX4W-A-F1 Panel Meter
Panel mounting brackets (2 pcs)
Terminal cover
Instruction manual
FAQ
Q1. Can MX4W-A-F1 measure both AC and DC current?
Yes, it supports both AC and DC current measurement.
Q2. Does this model support 4–20 mA input?
Yes, 4–20 mA current input is supported.
Q3. What type of output is provided?
It provides NPN open-collector preset output.
Q4. Is it suitable for compact panels?
Yes, it has only 20 mm rear depth, ideal for space-limited panels.
Q5. What is the panel cut-out size?
Standard 92 × 45 mm panel cut-out.
