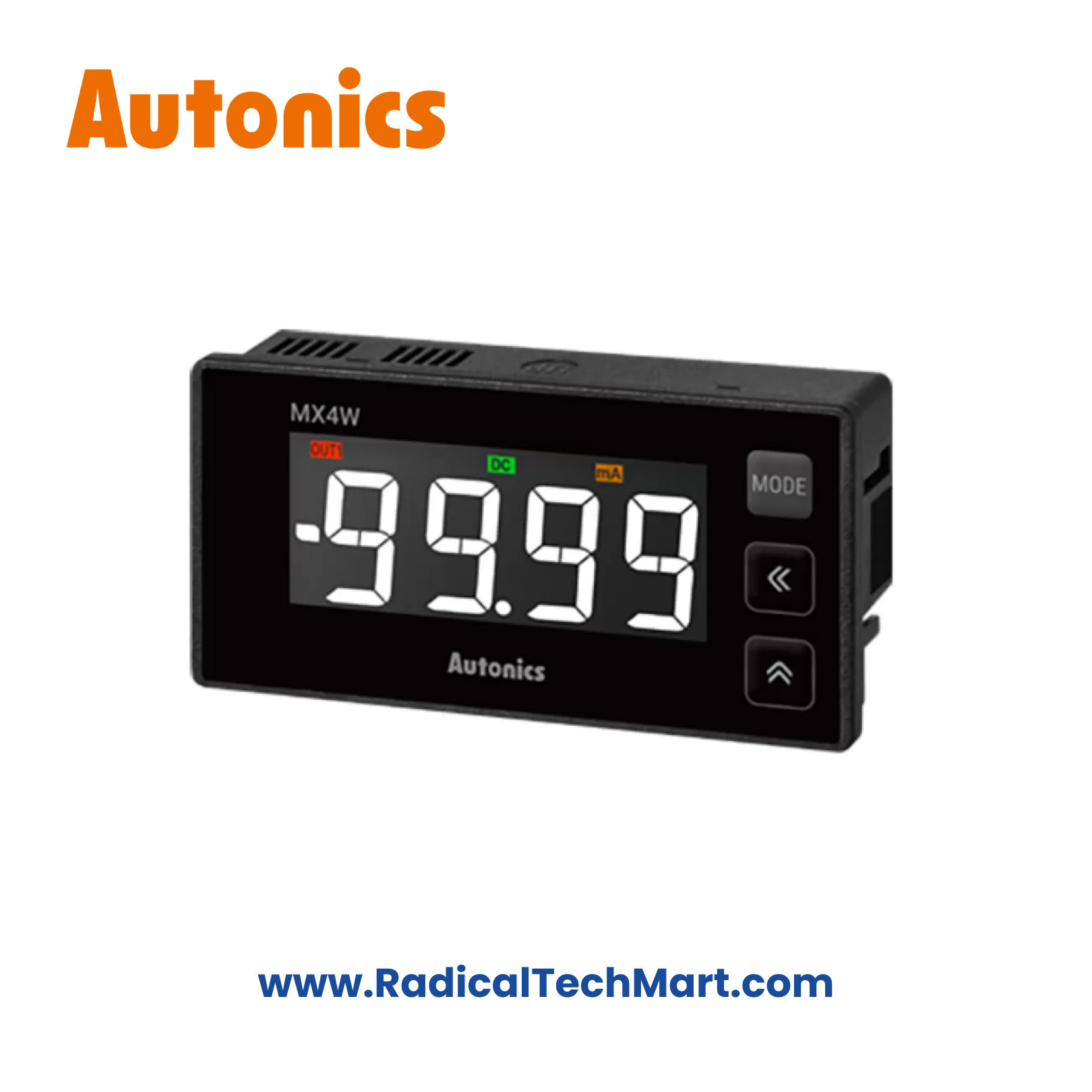

Autonics MX4W-A-F2 AC/DC Current LCD Panel Meter with Dual Preset Output
Ultra-compact 96×48 mm LCD panel meter for AC & DC current measurement with dual NPN open-collector outputs.
Ideal for compact OEM machines, automation panels, and current alarm applications.
The Autonics MX4W-A-F2 is a compact LCD multi-panel meter designed for accurate AC and DC current measurement in industrial and OEM panels. With its ultra-short depth design and dual NPN preset outputs, it is ideal for alarm, limit control, and automation logic in space-constrained enclosures.
Key Features
Measures AC & DC current up to 5 A
Supports 4–20 mA current signals
Clear 12-segment LCD display with large characters
Dual NPN open-collector preset outputs (OUT1 & OUT2)
Ultra-compact design (rear depth ~20 mm)
Peak value monitoring and zero adjustment
Wide power supply: 24–240 VAC / VDC
IP54 front protection (panel mounted)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MX4W-A-F2 |
| Input Type | AC/DC Current |
| Max Allowable Input | AC 5 A / DC 5 A |
| Display Range | −9999 to 9999 |
| Display Type | LCD, 12-segment |
| Character Height | Approx. 19 mm |
| Accuracy (23 ±5 °C) | ±0.1% F.S. (DC), ±0.3% F.S. (AC) |
| Output Type | Dual NPN open-collector |
| Output Capacity | ≤ 30 VDC, ≤ 100 mA |
| Power Supply | 24–240 VAC / VDC |
| Protection Rating | IP54 (front) |
| Operating Temperature | −10 to +50 °C |
Applications
OEM machinery panels
AC/DC current alarm systems
Automation & control panels
Compact electrical enclosures
Test benches & R&D setups
Industrial equipment monitoring
What’s in the Box?
Autonics MX4W-A-F2 Panel Meter
Panel mounting brackets (2 pcs)
Terminal protection cover
Instruction manual
FAQ
Q1. Can MX4W-A-F2 measure both AC and DC current?
Yes, it supports both AC and DC current measurement.
Q2. How many outputs does this model have?
It provides two NPN open-collector preset outputs.
Q3. Does it support 4–20 mA input signals?
Yes, 4–20 mA current input is supported.
Q4. Is this suitable for compact control panels?
Yes, it has an ultra-short rear depth of around 20 mm.
Q5. What is the panel cut-out size?
Standard 92 × 45 mm cut-out.
