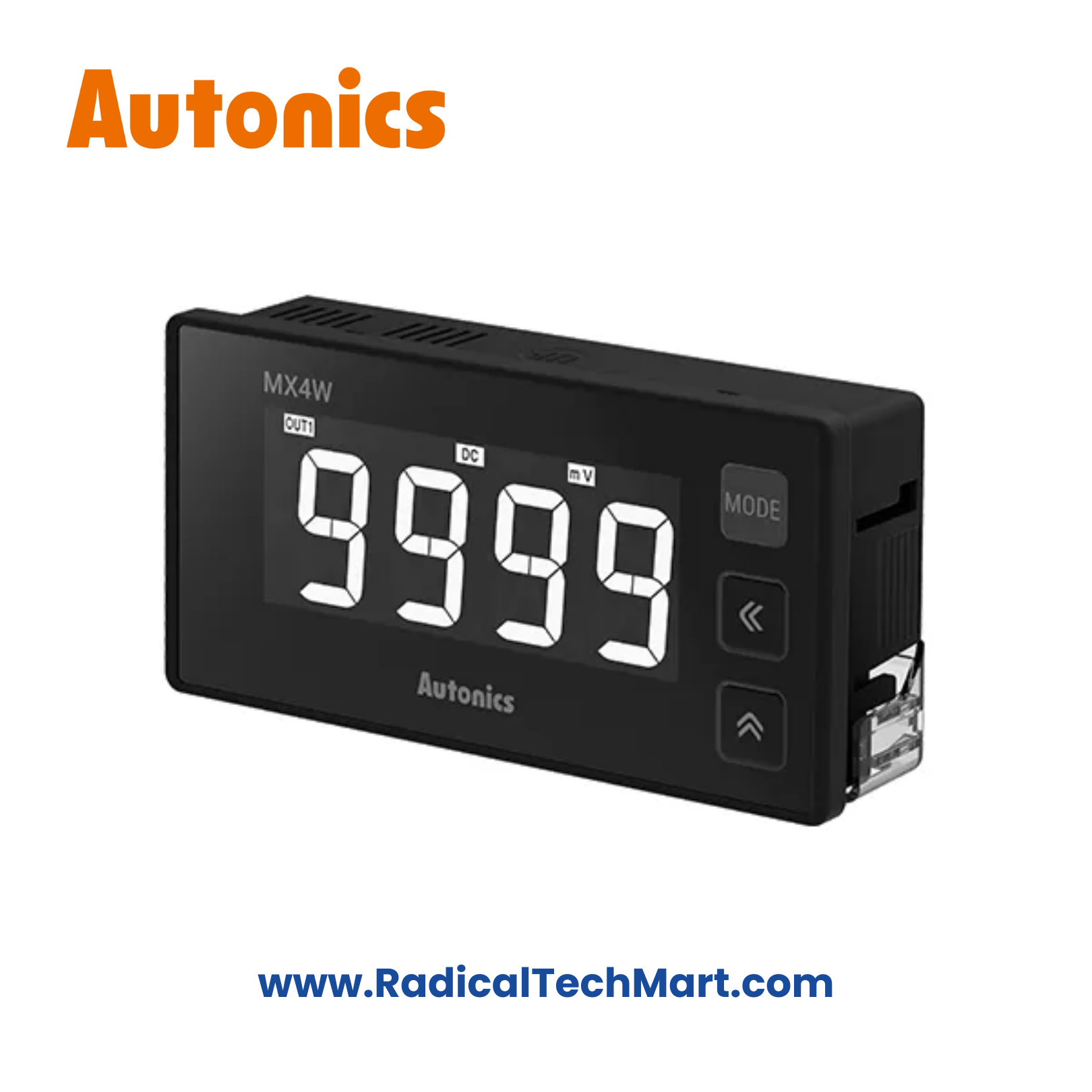

Autonics MX4W-V-FN Panel Meter
Autonics MX4W-V-FN AC/DC Voltage LCD Panel Meter (Indicator Only)
Ultra-compact 96×48 mm LCD panel meter for AC & DC voltage measurement with no output.
Ideal for basic voltage indication in compact OEM machines and electrical control panels.
The Autonics MX4W-V-FN is a compact LCD voltage panel meter designed for accurate AC and DC voltage indication without any control or communication output. With its ultra-short rear depth and wide power supply range, it is ideal for space-constrained panels and OEM equipment where only local voltage display is required.
Key Features
Measures AC & DC voltage up to 500 V
Clear 12-segment LCD display with large characters
Indicator-only model (no output)
Ultra-compact design with approx. 20 mm rear depth
Supports scaling and zero adjustment
Wide power supply: 24–240 VAC / VDC
IP54 front protection (panel mounted)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MX4W-V-FN |
| Input Type | AC/DC Voltage |
| Max Allowable Input | Up to 500 VAC / VDC |
| Display Range | −9999 to 9999 |
| Display Type | LCD, 12-segment |
| Character Height | Approx. 19 mm |
| Accuracy (23 ±5 °C) | ±0.1% F.S. (DC), ±0.3% F.S. (AC) |
| Output Type | None (Indicator only) |
| Power Supply | 24–240 VAC / VDC |
| Protection Rating | IP54 (front) |
| Operating Temperature | −10 to +50 °C |
Applications
Electrical control panels
AC/DC voltage indication
Compact OEM machinery
Power distribution panels
Test benches & R&D setups
Cost-sensitive automation panels
What’s in the Box?
Autonics MX4W-V-FN Panel Meter
Panel mounting brackets (2 pcs)
Terminal protection cover
Instruction manual
FAQ
Q1. Does MX4W-V-FN provide any output?
No. This is an indicator-only model with no preset or communication output.
Q2. Can it measure both AC and DC voltage?
Yes, it supports both AC and DC voltage measurement.
Q3. Is this suitable for compact panels?
Yes, it has an ultra-short rear depth of around 20 mm.
Q4. Can voltage scaling be configured?
Yes, scaling and decimal point adjustment are supported.
Q5. What is the panel cut-out size?
Standard 92 × 45 mm panel cut-out.
