A. Product Overview

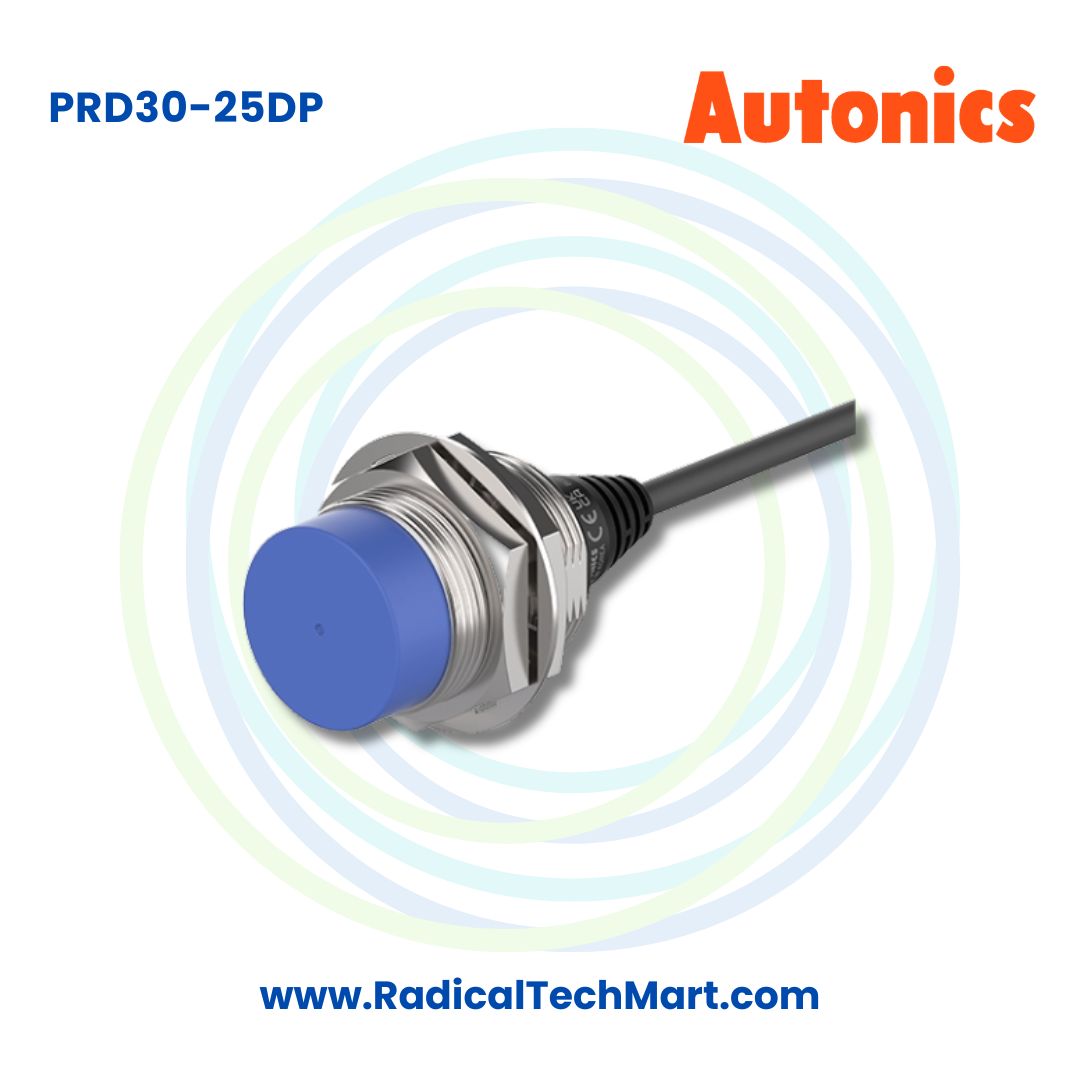

The Autonics PRD30-25DP is a cylindrical inductive proximity sensor designed for applications requiring a longer sensing distance than conventional inductive sensors.

With an M30 sensing head diameter and 25 mm sensing distance, the PRD30-25DP can detect metallic objects without requiring physical contact with the target.

The sensor uses a non-flush mounting arrangement and provides a PNP output suitable for compatible PLCs, controllers and industrial automation systems.

Its rugged construction, protection circuits and IP67 enclosure make it suitable for demanding industrial environments.

Key Features

• Brand: Autonics

• Model: PRD30-25DP

• Series: PRD

• Product type: Long distance inductive proximity sensor

• Sensor shape: Cylindrical

• Sensing side diameter: 30 mm

• Sensing distance: 25 mm

• Installation type: Non-flush

• Output type: PNP

• Standard sensing target: 75 x 75 x 1 mm iron

• Response frequency: 100 Hz

• Rated power supply: 12 to 24 VDC

• Operating voltage: 10 to 30 VDC

• Current consumption: Maximum 10 mA

• Control output: Maximum 200 mA

• Residual voltage: Maximum 1.5 V

• Indicator: Red LED operation indicator

• Protection rating: IP67

• Connection: Cable type

• Ambient operating temperature: Minus 25°C to 70°C

• Ambient operating humidity: 35 to 95 percent RH

• Case and nut material: Nickel plated brass

• Sensing surface material: PBT

• Approximate unit weight: 143 g

The sensor also includes protection against surge voltage, output short overcurrent and reverse polarity.

B. Working Principle

The Autonics PRD30-25DP inductive proximity sensor detects metallic objects using an electromagnetic sensing field.

The sensor generates an electromagnetic field from its sensing surface.

When no metallic object is present, this field remains in its normal condition.

When a metal target enters the sensing area, the electromagnetic field changes. The internal electronic circuit detects this change and switches the sensor output.

The PNP output signal can then be used by a compatible:

• PLC

• Industrial controller

• Counter

• Machine control circuit

• Automation system

Because detection is performed without physical contact, the sensor can repeatedly detect moving metal components without the mechanical wear associated with conventional limit switches.

C. Why Is the Autonics PRD30-25DP Used?

The PRD30-25DP is particularly useful when a machine requires reliable metal detection from a relatively long sensing distance.

1. Long Distance Metal Detection

The 25 mm sensing distance provides greater detection range than many conventional M30 proximity sensors.

2. Machine Position Detection

The sensor can detect whether a metallic machine component has reached a required position.

3. Conveyor Object Detection

It can detect metallic products, fixtures or components moving along conveyor systems.

4. Production Counting

The sensor output can be connected to a PLC or counter for counting metallic parts passing through a production process.

5. Automation Sequence Control

Detection of a metal target can be used as a condition for starting the next stage of an automated process.

6. Limit Position Detection

The sensor can be used to confirm the end position of suitable metallic machine components.

7. Non-Contact Detection

There is no need for the target to physically press or touch the sensor.

8. Reduced Mechanical Wear

Unlike mechanical limit switches, inductive sensing does not rely on repeated physical contact.

9. Industrial Environment Protection

The IP67 protection rating makes the sensor suitable for industrial environments where dust and moisture may be present.

10. PLC Integration

The PNP output allows the sensor to be integrated with compatible PLC digital input systems.

D. Suitable Buyers

The Autonics PRD30-25DP M30 25 mm PNP Long Distance Proximity Sensor is suitable for:

• Industrial automation companies

• Machine manufacturers

• OEM machine builders

• PLC system integrators

• Control panel manufacturers

• Conveyor manufacturers

• Material handling companies

• Packaging machine manufacturers

• CNC machine manufacturers

• Assembly line manufacturers

• Automotive component manufacturers

• Metal processing industries

• Robotics integrators

• Special purpose machine manufacturers

• Factory maintenance departments

• Production plants

• Automation engineers

• Electrical contractors

• Industrial maintenance teams

• Manufacturing companies

It is especially relevant for buyers searching for an M30 proximity sensor, 25 mm proximity sensor, PNP inductive sensor, long distance proximity sensor, Autonics proximity sensor or non-contact metal detection sensor.

FAQ

1. What is the Autonics PRD30-25DP?

The Autonics PRD30-25DP is an M30 cylindrical long distance inductive proximity sensor designed for non-contact detection of metallic objects.

2. What is the sensing distance of the PRD30-25DP?

The sensing distance is 25 mm.

3. What is the diameter of the PRD30-25DP?

The sensing side diameter is 30 mm, commonly referred to as an M30 proximity sensor size.

4. Is the PRD30-25DP an inductive proximity sensor?

Yes. It uses inductive sensing technology for detecting metallic objects.

5. Is the Autonics PRD30-25DP PNP or NPN?

The PRD30-25DP is a PNP output proximity sensor.

6. What type of objects can the PRD30-25DP detect?

It is designed to detect metallic objects.

7. What is the standard sensing target?

The standard sensing target is 75 x 75 x 1 mm iron.

8. Is PRD30-25DP flush or non-flush?

The PRD30-25DP requires non-flush installation.

9. What does non-flush proximity sensor mounting mean?

A non-flush sensor requires sufficient free space around the sensing head instead of being completely surrounded by metal.

This helps the sensor achieve its specified sensing performance.

10. What power supply does PRD30-25DP require?

The rated power supply is 12 to 24 VDC.

Its specified operating voltage range is 10 to 30 VDC.

11. What is the response frequency?

The response frequency is 100 Hz.

12. What is the maximum control output current?

The control output is rated up to 200 mA.
