Baumer DE/DH Flush Diaphragm Sanitary Seal

A. Product Overview

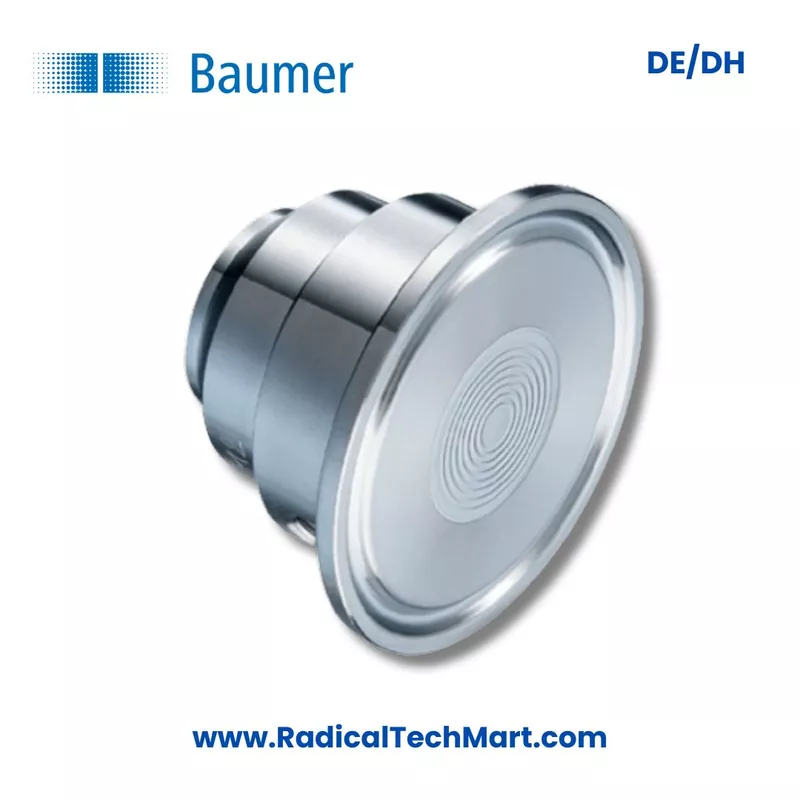

Baumer DE and DH flush diaphragm sanitary seal is a hygienic diaphragm seal used with pressure instruments in clean and sanitary process environments. It is suitable for applications where the process media should not enter the pressure gauge, pressure switch or pressure transmitter directly.

The seal has a flush diaphragm sanitary type design, which helps prevent material buildup and makes cleaning easier. With AISI 316L SS wetted parts, it is suitable for demanding applications where corrosion resistance, hygiene and cleanability are important.

This model is suitable for pressure ranges from -1 to 0 bar and 0 to 40 bar. It can operate from -10 degree C to 180 degree C with FDA suitability or as per the selected fill fluid. Available process connections include 1 inch, 1 1/2 inch and 2 inch as per DIN 11851, DIN 32676 and SMS 1147 standards. Special material can be supplied on request depending on application requirements.

B. Working Principle

The Baumer DE and DH sanitary diaphragm seal works by isolating the pressure instrument from the process media. The process pressure acts on the flush diaphragm, and this pressure is transferred through a suitable fill fluid to the connected pressure gauge, switch or transmitter.

Because the diaphragm is flush with the process connection, the media does not get trapped inside cavities or narrow passages. This helps maintain hygienic measurement and reduces the chances of clogging, contamination, crystallization or product buildup.

The pressure instrument receives the pressure signal without coming into direct contact with the process fluid. This improves instrument life and helps maintain measurement reliability in sanitary applications.

C. Why It Is Used

Baumer DE and DH flush diaphragm sanitary seal is used to protect pressure instruments in hygienic and difficult process applications. It is especially useful when the process media is sticky, viscous, corrosive, crystallizing, contaminated or sensitive to hygiene.

It is used because it helps prevent clogging inside the pressure instrument connection. In food, dairy, beverage and pharmaceutical processes, a normal pressure connection may create dead zones where product residue can collect. A flush diaphragm sanitary seal helps reduce this issue and supports easier cleaning.

This seal is also used where the process media must not contaminate the pressure instrument and where the instrument must not contaminate the process. The AISI 316L SS wetted part construction makes it suitable for clean process industries requiring durability and hygiene.

D. Suitable Buyers

Baumer DE and DH flush diaphragm sanitary seal is suitable for buyers who need hygienic pressure measurement solutions for sanitary processes. It is commonly useful for:

Food processing plants requiring pressure measurement in clean pipelines and tanks
Dairy plants handling milk, cream, yogurt and other dairy products
Beverage manufacturers handling liquids, syrups and clean process fluids
Pharmaceutical manufacturers requiring hygienic instrumentation
OEM machine manufacturers building sanitary process equipment
Process automation companies supplying pressure measurement systems
System integrators working on food, dairy, pharma and beverage projects
Maintenance teams replacing diaphragm seals in sanitary pipelines
Instrumentation engineers selecting pressure gauges, switches and transmitters for hygienic applications
Purchase teams looking for Baumer sanitary diaphragm seal suppliers and dealers

FAQ

1. What is Baumer DE and DH flush diaphragm sanitary seal?
Baumer DE and DH flush diaphragm sanitary seal is a hygienic diaphragm seal used to isolate pressure instruments from process media. It is suitable for pressure gauges, pressure switches and pressure transmitters in sanitary applications.

2. Where is Baumer DE and DH sanitary seal used?
It is used in food, dairy, beverage, pharmaceutical and other hygienic process industries where clean pressure measurement is required.

3. What is the pressure range of Baumer DE and DH flush diaphragm sanitary seal?
The pressure range is -1 to 0 bar and 0 to 40 bar.

4. What are the wetted parts of this diaphragm seal?
The wetted parts are made from AISI 316L SS, which provides good corrosion resistance and hygienic compatibility for sanitary process applications.

5. What is the operating temperature range?
The operating temperature range is -10 degree C to 180 degree C with FDA suitability, or as per the selected fill fluid.

6. Which process connections are available?
Available process connections include 1 inch, 1 1/2 inch and 2 inch as per DIN 11851, DIN 32676 and SMS 1147 standards.

7. Why is a flush diaphragm design preferred in sanitary applications?
A flush diaphragm design helps reduce product buildup, clogging and dead zones. It also supports easier cleaning and more hygienic pressure measurement.

8. Can this seal be used with pressure transmitters?
Yes, Baumer DE and DH flush diaphragm sanitary seal can be used with pressure transmitters, pressure gauges and pressure switches.

9. Is special material available for this model?
Yes, special material is available on request depending on the process media and application requirement.

10. Who should buy Baumer DE and DH flush diaphragm sanitary seal?
It is suitable for food plants, dairy plants, beverage manufacturers, pharmaceutical companies, OEMs, system integrators, instrumentation suppliers and maintenance teams requiring sanitary pressure measurement solutions.
