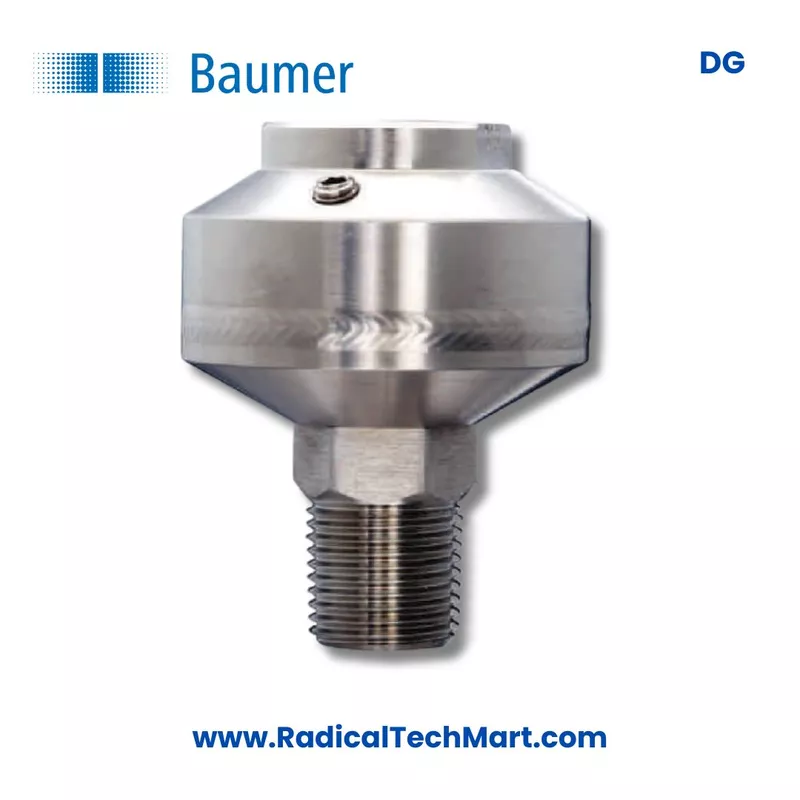

Baumer DG Heavy Duty Mini Diaphragm Seal
Baumer DG is a heavy duty mini diaphragm seal designed to protect pressure gauges, pressure switches and pressure measuring instruments from corrosive, viscous, high-temperature and high-pressure process media. It is available with AISI 316 SS and AISI 316L wetted parts, pressure ranges up to 600 bar, operating temperature from -40 degree C to 200 degree C and optional Monel and Hastelloy C materials.
Customize
Share :
A. Product Overview
The Baumer DG heavy duty mini diaphragm seal is a compact and durable pressure instrument accessory used to isolate measuring instruments from difficult process media. It is suitable for use with pressure gauges, pressure switches and other pressure monitoring instruments where direct contact with the process fluid may damage the instrument or reduce its working life.
This diaphragm seal is designed for heavy duty industrial applications and supports multiple pressure ranges. The available ranges include S11 from -1 to 0 bar and 0 to 4 bar, S12 from 6 to 70 bar, S13 from 100 to 400 bar and S14 from 250 to 600 bar.
The wetted parts are made from AISI 316 SS and AISI 316L, making the seal suitable for many process fluids. For more demanding media, special materials such as Monel and Hastelloy C are also available. The operating temperature range is from -40 degree C to 200 degree C, or as per the selected fill fluid.
Available process connections include 1/4 inch NPT male, 1/2 inch BSP male and 1/2 inch NPT male, making it suitable for different industrial installation requirements.
B. Working Principle
The Baumer DG diaphragm seal works by separating the process medium from the pressure measuring instrument. The diaphragm comes in contact with the process fluid, while the pressure gauge or pressure switch remains isolated from the actual media.
When pressure is applied to the diaphragm, the diaphragm deflects. This pressure is transferred through the internal fill fluid to the connected pressure instrument. The pressure gauge, pressure switch or transmitter then measures the pressure without being directly exposed to the process fluid.
This working principle helps protect the instrument from corrosion, clogging, crystallization, high temperature and aggressive process conditions. It also improves instrument life and measurement reliability in difficult applications.
C. Why It Is Used
The Baumer DG heavy duty mini diaphragm seal is used to protect pressure instruments in applications where the process media is not suitable for direct contact with the instrument sensing element.
It is commonly used when the media is corrosive, viscous, sticky, crystallizing, sediment-forming, hot or high pressure. Without a diaphragm seal, such media can damage the internal parts of a pressure gauge or pressure switch, block the pressure port or affect measurement accuracy.
The DG diaphragm seal provides a protective barrier between the process and the instrument. This makes pressure measurement safer, cleaner and more reliable in harsh industrial conditions.
It is especially useful for high pressure applications up to 600 bar, where a compact but strong diaphragm seal is required.
D. Suitable Buyers
Baumer DG heavy duty mini diaphragm seal is suitable for:
Pressure gauge users
Pressure switch users
Instrumentation engineers
Process automation companies
Panel builders and system integrators
Chemical plants
Petrochemical industries
Oil and gas industries
Pharmaceutical plants
Food processing units
Water treatment plants
Boiler and furnace manufacturers
Pump and compressor manufacturers
Hydraulic system manufacturers
OEM machine manufacturers
Maintenance and utility departments
Industrial product dealers and resellers
Purchase teams looking for Baumer diaphragm seals
FAQ
1. What is Baumer DG?
Baumer DG is a heavy duty mini diaphragm seal used to protect pressure gauges, pressure switches and pressure measuring instruments from harsh process media.
2. What is the pressure range of Baumer DG diaphragm seal?
Baumer DG is available in multiple pressure ranges, including S11 from -1 to 0 bar and 0 to 4 bar, S12 from 6 to 70 bar, S13 from 100 to 400 bar and S14 from 250 to 600 bar.
3. What are the wetted parts of Baumer DG made from?
The wetted parts are made from AISI 316 SS and AISI 316L.
4. What is the operating temperature of Baumer DG?
The operating temperature is from -40 degree C to 200 degree C, or as per the selected fill fluid.
5. Which process connections are available in Baumer DG?
Baumer DG is available with 1/4 inch NPT male, 1/2 inch BSP male and 1/2 inch NPT male process connections.
6. Is Baumer DG suitable for high pressure applications?
Yes. Baumer DG is suitable for high pressure applications, with available ranges up to 600 bar.
7. Can Baumer DG be used with corrosive media?
Yes. It can be used with corrosive media, depending on the material compatibility. Special materials such as Monel and Hastelloy C are available for more aggressive applications.
8. Why is a diaphragm seal used with a pressure gauge?
A diaphragm seal is used to isolate the pressure gauge from the process media. This protects the gauge from corrosion, clogging, high temperature and damage caused by difficult fluids.
9. Can Baumer DG be used with pressure switches?
Yes. Baumer DG can be used with pressure switches to protect them from direct contact with process media.
10. What special materials are available for Baumer DG?
Special materials available for Baumer DG include Monel and Hastelloy C.
11. Where is Baumer DG commonly used?
Baumer DG is commonly used in chemical plants, oil and gas systems, hydraulic systems, boilers, pumps, compressors, water treatment plants, pharmaceutical industries, food processing units and general process industries.
12. Why choose Baumer DG heavy duty mini diaphragm seal?
Baumer DG is preferred because it offers a compact heavy duty design, stainless steel wetted parts, high pressure suitability, wide temperature compatibility and optional special materials for demanding industrial applications.
