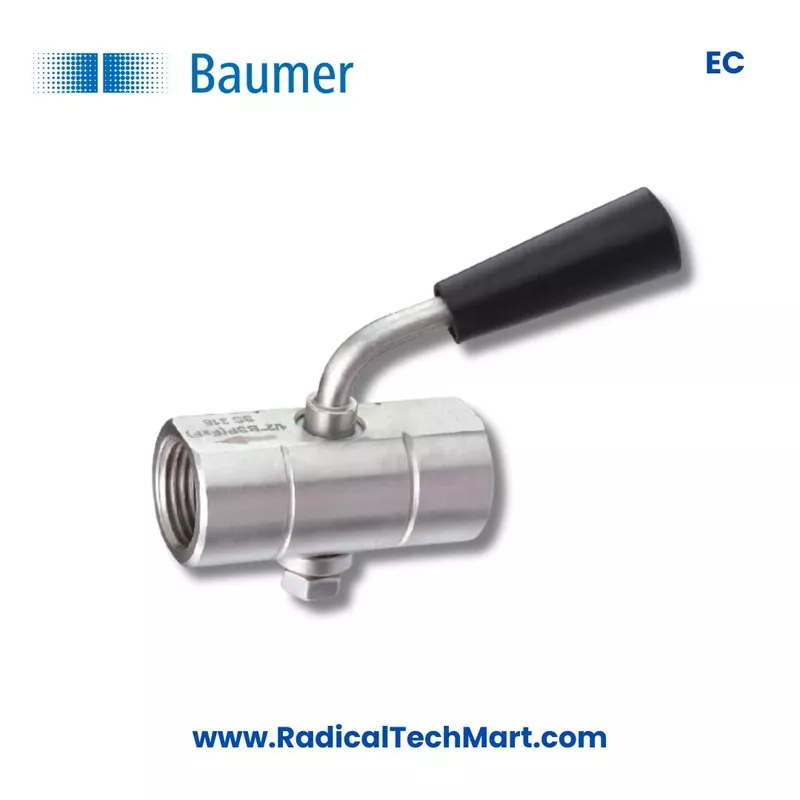

Baumer EC Gauge Cock
Baumer EC gauge cock available in 2 way and 3 way type. Pressure rating 100 bar. Process connection options: 1/4 inch, 3/8 inch and 1/2 inch BSP or NPT. Wetted parts available in AISI 316 SS and AISI 304 SS. Suitable for working temperature up to 180 degree C. Used as a pressure gauge isolation accessory in industrial pressure measurement applications.
Customize
Share :
A. Product Overview
Baumer EC gauge cock is designed for safe isolation of pressure gauges from the process line. It is available in 2 way and 3 way type, making it suitable for different pressure measurement and gauge maintenance requirements.
The gauge cock is suitable for industrial applications where the pressure gauge needs to be connected, isolated, vented or serviced without directly disturbing the process line. It is available with process connection options of 1/4 inch, 3/8 inch and 1/2 inch BSP or NPT.
The wetted parts are available in AISI 316 SS and AISI 304 SS, offering good corrosion resistance and durability for industrial environments. The Baumer EC gauge cock is suitable for pressure ratings up to 100 bar and working temperatures up to 180 degree C.
B. Working Principle
The Baumer EC gauge cock works as a manual isolation valve between the process line and the pressure gauge. When the valve is opened, process pressure reaches the pressure gauge and allows pressure reading. When the valve is closed, the pressure gauge is isolated from the process media.
In a 2 way gauge cock, the valve mainly allows opening and closing of the pressure path between the process and the gauge.
In a 3 way gauge cock, the valve can help in isolation and venting, which is useful during gauge removal, calibration, replacement or maintenance. This helps reduce the risk of sudden pressure release and protects the pressure gauge from continuous process exposure when not required.
C. Why It Is Used
Baumer EC gauge cock is used to protect pressure gauges and improve safety during pressure measurement. It allows the operator to isolate the gauge when maintenance, calibration or replacement is required.
It is commonly used because it helps:
Reduce direct exposure of the pressure gauge to process media
Improve safety during gauge servicing
Allow pressure gauge isolation without stopping the full process
Support pressure gauge calibration and maintenance
Protect the gauge from pressure shocks and continuous media contact
Provide reliable pressure measurement accessory support in industrial systems
This makes it an important accessory for pressure gauge installations in hydraulic machines, compressors, pipelines, process plants and general industrial pressure measurement applications.
D. Suitable Buyers
Baumer EC gauge cock is suitable for buyers who require a reliable pressure gauge isolation accessory for industrial applications.
Suitable buyers include:
Instrumentation engineers
Maintenance engineers
Process plant operators
Hydraulic machine manufacturers
Compressor manufacturers
Panel builders and system integrators
Pressure gauge suppliers
Industrial automation suppliers
Chemical and process industry buyers
OEM machine manufacturers
MRO and plant maintenance teams
FAQ
1. What is Baumer EC gauge cock used for?
Baumer EC gauge cock is used to isolate a pressure gauge from the process line. It helps in safe pressure measurement, gauge maintenance, calibration and replacement.
2. Is Baumer EC gauge cock available in 2 way and 3 way type?
Yes, Baumer EC gauge cock is available in both 2 way and 3 way type for different pressure gauge isolation and venting requirements.
3. What is the pressure rating of Baumer EC gauge cock?
Baumer EC gauge cock has a pressure rating of up to 100 bar.
4. What is the maximum working temperature of Baumer EC gauge cock?
Baumer EC gauge cock is suitable for working temperature up to 180 degree C.
5. Which process connections are available in Baumer EC gauge cock?
Baumer EC gauge cock is available with 1/4 inch, 3/8 inch and 1/2 inch BSP or NPT process connection options.
6. Which materials are available for wetted parts?
The wetted parts are available in AISI 316 SS and AISI 304 SS.
7. Can Baumer EC gauge cock be used with pressure gauges?
Yes, Baumer EC gauge cock is mainly used as a pressure gauge isolation accessory in industrial pressure measurement applications.
8. Where is Baumer EC gauge cock commonly used?
It is commonly used in hydraulic machines, compressors, process plants, industrial pipelines and pressure measurement systems.
9. Why should a gauge cock be installed with a pressure gauge?
A gauge cock helps isolate the pressure gauge from the process line, making maintenance, calibration and replacement safer and easier.
10. Is stainless steel gauge cock suitable for industrial applications?
Yes, stainless steel gauge cock is suitable for industrial applications because it offers strength, corrosion resistance and long service life in demanding environments.
