Baumer EH Siphon

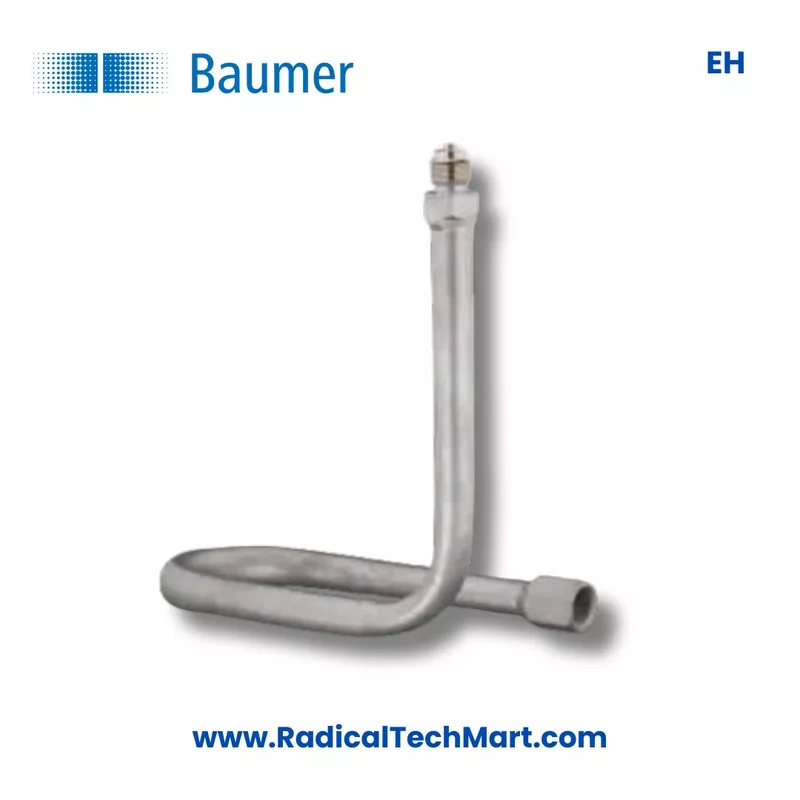

Baumer EH siphon is a pressure gauge protection accessory used in steam and high temperature media applications. It is available in coil type, pig tail type and U type construction with pressure rating up to 260 bar and working temperature suitability up to 400 degree C.
Customize
Share :
A. Product Overview
Baumer EH siphon is designed to protect pressure gauges from direct exposure to steam, hot vapours and high temperature process media. It works as a cooling barrier between the process line and the pressure gauge, helping improve gauge life and measurement reliability.
The Baumer EH siphon is available in coil type, pig tail type and U type construction. It is suitable for applications with maximum pressure rating up to 260 bar and working temperature up to 400 degree C. Process connection options include 1/4 inch, 3/8 inch and 1/2 inch BSP and NPT.
Wetted parts are available in AISI 304 SS, AISI 316 SS, AISI 316L SS and CS, making it suitable for different industrial pressure measurement applications.
B. Working Principle
The Baumer EH siphon works by creating a protective cooling loop between the hot process media and the pressure gauge. When used in steam or high temperature service, the siphon allows condensate to form inside the loop.
This condensate acts as a barrier and reduces the direct transfer of heat to the pressure gauge. As a result, the pressure gauge receives the process pressure but is protected from excessive temperature.
In coil type, pig tail type and U type designs, the siphon provides additional distance and cooling volume between the process connection and the gauge. This helps prevent overheating of the gauge internal components and supports stable pressure indication.
C. Why It Is Used
Baumer EH siphon is used to protect pressure gauges in high temperature and steam applications. Direct steam or hot media can damage the pressure gauge movement, bourdon tube, seals and internal components.
It is used because it helps reduce heat transfer, improves pressure gauge service life and supports safe pressure measurement. In boiler lines, steam pipelines, hot water systems and thermal process equipment, a siphon is commonly installed before the pressure gauge.
The Baumer EH siphon is also useful where process temperature is too high for direct mounting of a pressure gauge. Its different construction types and material options make it suitable for multiple industrial applications.
D. Suitable Buyers
Baumer EH siphon is suitable for buyers who need pressure gauge protection in steam and high temperature applications.
Suitable buyers include:
Boiler manufacturers and boiler maintenance teams
Steam pipeline contractors
Process plant maintenance departments
Chemical and petrochemical plants
Food and beverage plants using steam lines
Pharmaceutical plants with utility steam systems
Textile and dyeing industries
OEM machine manufacturers
Pressure gauge dealers and instrumentation suppliers
System integrators working on pressure measurement projects
Purchase teams looking for Baumer siphon suppliers and dealers
FAQ
1. What is Baumer EH siphon?
Baumer EH siphon is a pressure gauge accessory used to protect pressure gauges from direct contact with steam, hot vapours and high temperature process media.
2. Where is Baumer EH siphon used?
It is used in steam lines, boiler applications, hot water systems, process plants and other high temperature pressure measurement applications.
3. What construction types are available in Baumer EH siphon?
Baumer EH siphon is available in coil type, pig tail type and U type construction.
4. What is the maximum pressure rating of Baumer EH siphon?
The maximum pressure rating is 260 bar.
5. What is the working temperature range of Baumer EH siphon?
Baumer EH siphon is suitable for working temperature up to 400 degree C.
6. Which process connections are available?
Available process connection options include 1/4 inch, 3/8 inch and 1/2 inch BSP and NPT.
7. Which wetted part materials are available?
Wetted parts are available in AISI 304 SS, AISI 316 SS, AISI 316L SS and CS.
8. Why is a siphon used with a pressure gauge?
A siphon is used to reduce direct heat transfer from hot media to the pressure gauge. It helps protect the gauge from damage and improves service life.
9. Can Baumer EH siphon be used for steam service?
Yes, Baumer EH siphon is suitable for steam service and high temperature media applications.
10. Which type of Baumer EH siphon should be selected?
The selection depends on the application layout, installation space, process temperature, pressure rating, material requirement and connection type. Coil type, pig tail type and U type options are available for different installation needs.
