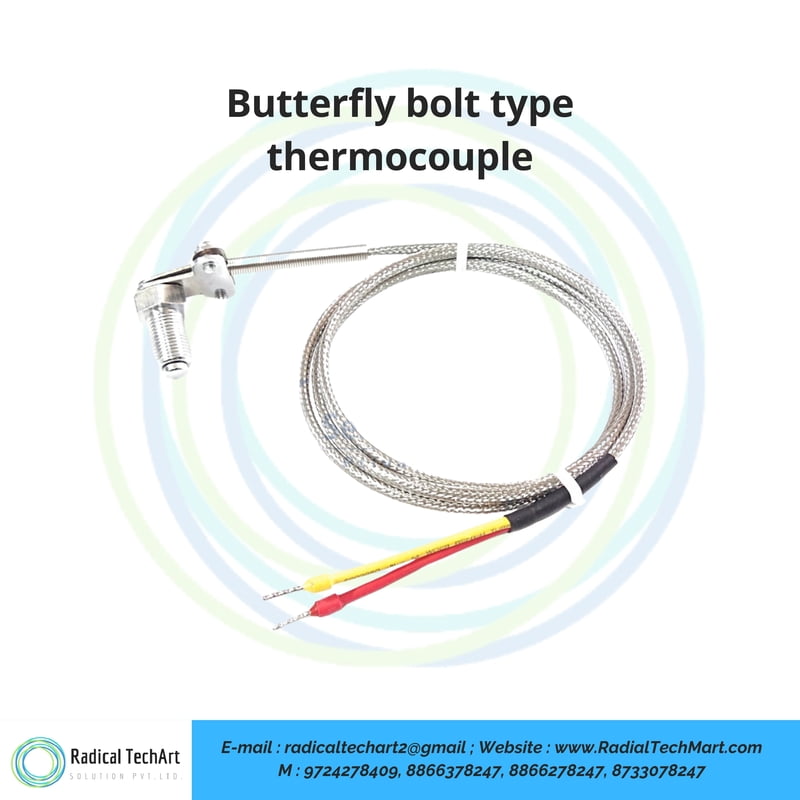

Butterfly Bolt Temperature Sensor | Type K & J |

A. Product Overview

Butterfly Bolt Temperature Sensor is a bolt-mounted thermocouple sensor designed for measuring surface and contact temperature in industrial applications. It is commonly used where the sensor needs to be fixed directly on machinery, engine bodies, heaters, molds, dies, or equipment surfaces.

This sensor is available in Type K and Type J thermocouple options, making it suitable for different temperature measurement requirements. It can operate from 35 degree Celsius to 500 degree Celsius, depending on the application and sensor construction.

The sensor is available with 1/8 BSP and 1/4 BSP thread options for easy mounting. Brass and Stainless Steel body options are available for durability and long service life in demanding industrial environments. Wire length can be selected from 0.5 meter to 10 meter as per installation requirement.

Grounded junction is suitable when faster temperature response is required. Ungrounded junction is suitable when electrical isolation is required between the sensor and the equipment body.

B. Working Principle

Butterfly Bolt Temperature Sensor works on the thermocouple principle. In a thermocouple, two different metal wires are joined at one end to form a measuring junction. When this junction comes in contact with heat, it generates a small voltage signal according to the temperature.

This voltage signal is sent to a temperature controller, temperature indicator, programmable logic controller, data logger, or control panel. The connected instrument converts the thermocouple signal into a temperature reading.

In this sensor, the bolt-type design helps the sensing tip stay in direct contact with the surface of the machine or equipment. This allows stable and reliable temperature measurement in industrial applications.

C. Why It Is Used

Butterfly Bolt Temperature Sensor is used when direct surface temperature measurement is required. In many machines and engines, it is not possible to insert a probe inside the process. In such cases, a bolt-mounted temperature sensor can be fixed on the body or surface of the equipment.

It is mainly used to monitor temperature for safety, process control, preventive maintenance, and equipment protection. If machinery or engine temperature increases beyond the safe limit, the connected controller or monitoring system can alert the operator or take control action.

This sensor is preferred because it is compact, easy to mount, durable, and suitable for high temperature industrial environments. It is also useful where space is limited and a standard long probe sensor cannot be installed.

D. Suitable Buyers

Butterfly Bolt Temperature Sensor is suitable for industrial buyers who need reliable contact temperature measurement.

Suitable buyers include:

Machine manufacturers
Engine manufacturers
Heater manufacturers
Plastic machinery manufacturers
Die and mold manufacturers
Industrial automation companies
Control panel manufacturers
Maintenance teams
Original equipment manufacturers
Process industries
Engineering contractors
Temperature controller users
Industrial equipment manufacturers
Service and repair teams

This product is also suitable for customers who require customized thermocouple sensors as per thread size, wire length, material, junction type, and application requirement.

FAQ

What is a Butterfly Bolt Temperature Sensor?

Butterfly Bolt Temperature Sensor is a bolt-mounted thermocouple sensor used for contact temperature measurement on machinery, engines, heaters, molds, dies, and industrial equipment.

Which thermocouple types are available?

This sensor is available in Type K and Type J thermocouple options.

What is the temperature range of this sensor?

The sensor can operate from 35 degree Celsius to 500 degree Celsius, depending on the application and construction.

Which thread sizes are available?

Common thread size options include 1/8 BSP and 1/4 BSP.

Which materials are available?

The sensor is available in Brass and Stainless Steel construction.

What wire lengths are available?

Wire length can be selected from 0.5 meter to 10 meter as per application requirement.

What is the difference between grounded and ungrounded junction?

Grounded junction gives faster temperature response because the thermocouple junction is connected to the sensor body. Ungrounded junction provides electrical isolation between the thermocouple junction and the sensor body.

Where is Butterfly Bolt Temperature Sensor used?

It is used in machinery, engines, heaters, molds, dies, industrial equipment, control panels, and process applications for contact temperature measurement.

Can this sensor be connected to a temperature controller?

Yes, it can be connected to a compatible temperature controller, temperature indicator, programmable logic controller, data logger, or monitoring system.

Can this sensor be customized?

Yes, Butterfly Bolt Temperature Sensor can be customized based on thermocouple type, thread size, wire length, body material, junction type, and application requirement.
