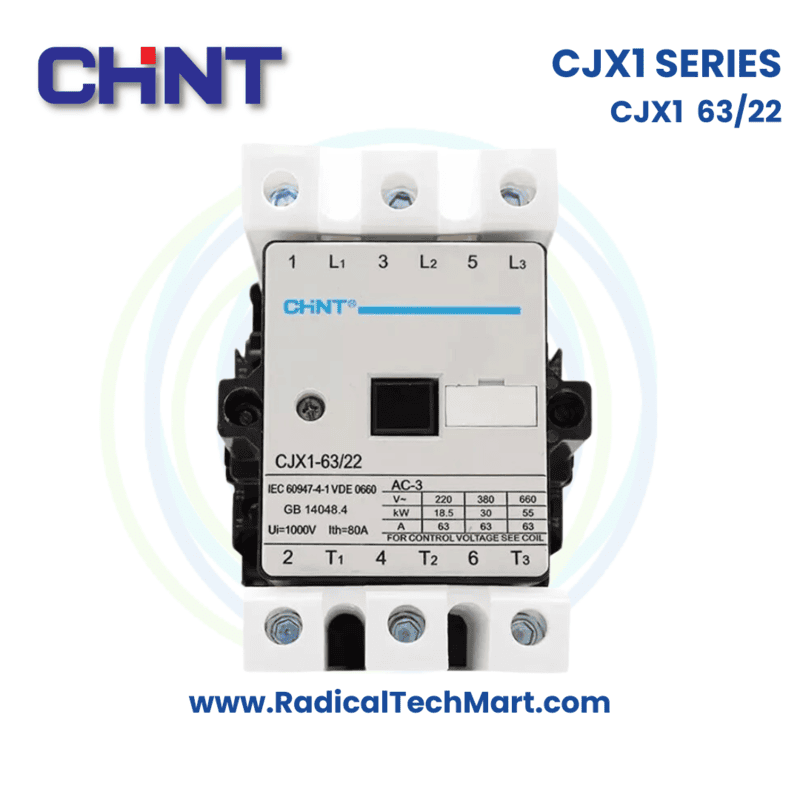

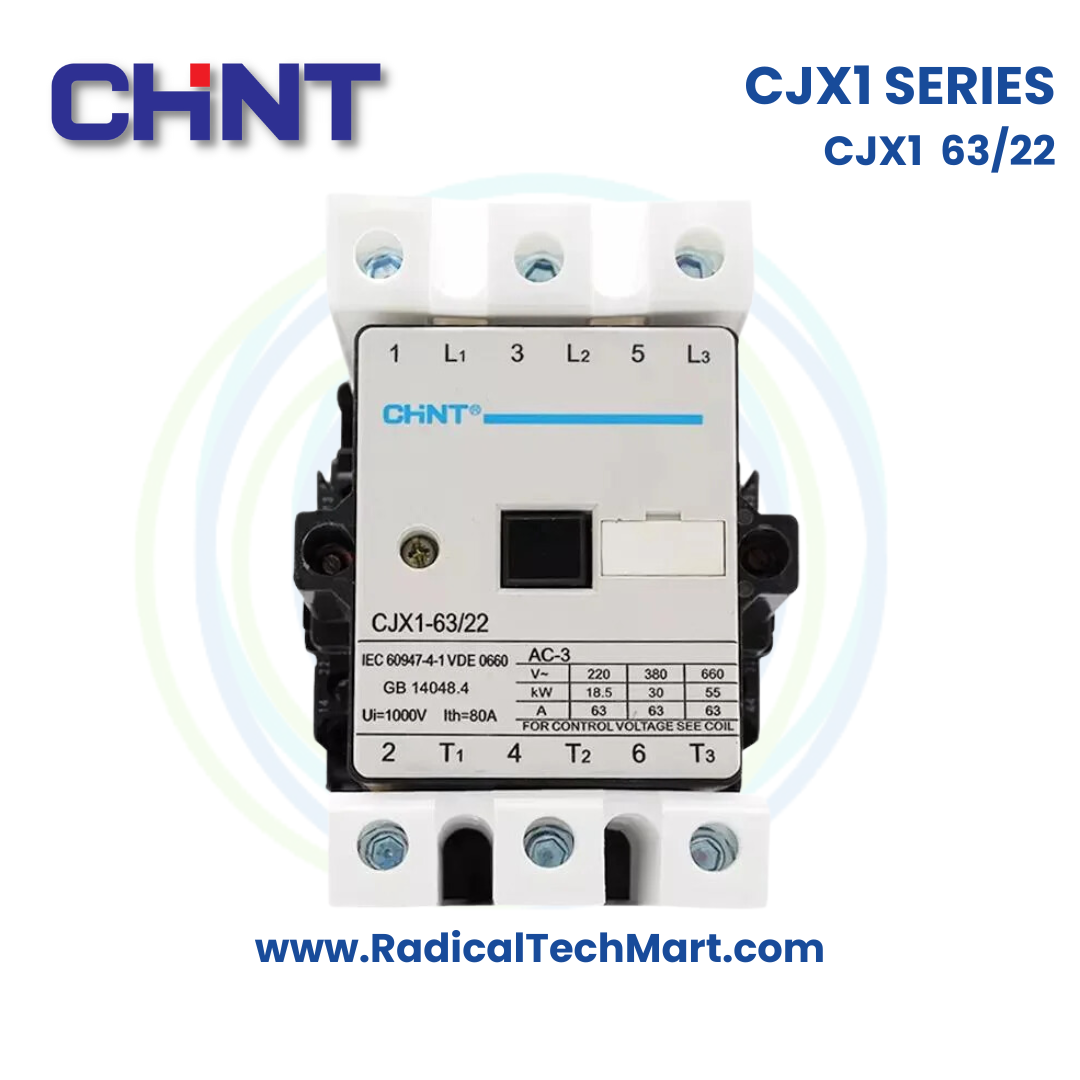

Chint CJX1 63/22 Contactor
Robust 63A contactor with dual auxiliary contacts for motor and power control in demanding industrial environments.
Customize
Share :
Product Summary:
The Chint CJX1 63/22 Contactor is engineered for high-reliability switching in AC circuits, ideal for motor start/stop and load control applications up to 63A.
Key Features:
Rated current: 63A
3P configuration with 3 NO main contacts
Coil voltage: Available in 110V & 220V AC
Includes 2 NO + 2 NC auxiliary contacts
Rated insulation voltage: 660V–1000V
Operational voltage: 380V (AC-3 Utilization)
Heavy-duty construction for industrial use
Long mechanical & electrical life
Compact size, easy panel mounting
Applications:
AC motor control (start/stop)
Industrial automation panels
HVAC systems
Power distribution units
Machine tools and conveyors
Product Benefits:
Ensures safe and reliable motor switching
Flexible auxiliary contact setup
Withstands high electrical loads
Reduces downtime with long-lasting build
Suitable for harsh industrial conditions
FAQ
Q1: What is the rated current and voltage of the Chint CJX1 63/22 contactor?
A1: It supports a rated current of 63A and operates effectively at up to 380V AC for AC-3 applications.
Q2: Can I get this contactor with a 110V coil voltage?
A2: Yes, it is available in both 110V and 220V coil voltage options.
Q3: What auxiliary contact configuration does it include?
A3: It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for extended control functionality.
