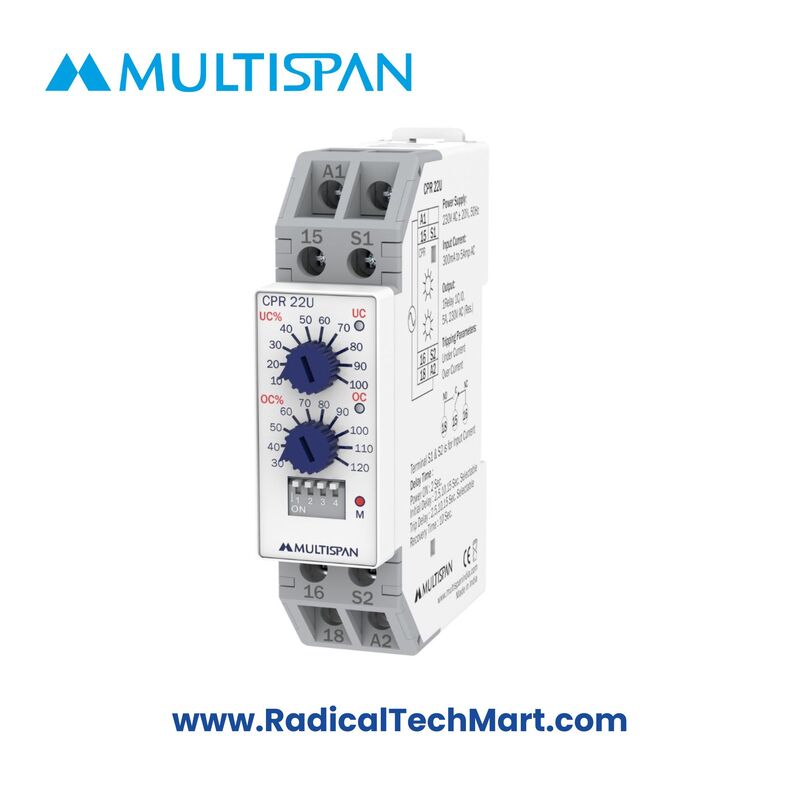

CPR-22U Multispan

Product Summary:
The Multispan CPR-22U is a programmable over and under current protection relay designed to ensure the safety and longevity of electrical systems by detecting abnormal current conditions. It offers a reliable 1-relay 1-C/O output and supports both fail-safe and non-fail-safe modes.

Key Features:

• Programmable Over & Under Current Protection

• Single relay with 1 C/O contact

• Selectable Fail Safe / Non-Fail Safe Mode

• Compatible with 1Ø and 3Ø systems

• Compact DIN Rail mountable design: 90 x 22.5 x 72 mm

• Rated Current: 5A AC with Input Range: 300mA to 5A AC

• Output: 1 Relay (5A, 230V AC Resistive)

• Supply Voltage: 230V ± 20% AC

Applications:

• DG Set Panels

• Motor Control Centers (MCC)

• Electrical Control Panels

• Power Distribution Panels

• Industrial Process Control Systems

Product Benefits:

• Prevents equipment damage due to abnormal current conditions

• Easy integration with compact panel size

• Enhances electrical safety and system reliability

• Versatile use across various panel applications

• Reduces downtime with fail-safe configuration

FAQs:

Q1: What type of load can the relay output handle?
A1: The CPR-22U supports a 5A, 230V AC resistive load through its 1-relay output.

Q2: Can this device work with both single-phase and three-phase systems?
A2: Yes, the CPR-22U is suitable for both 1Ø (single-phase) and 3Ø (three-phase) systems.

Q3: What is the difference between Fail Safe and Non-Fail Safe mode?
A3: In Fail Safe mode, the relay de-energizes during fault or power loss, enhancing safety. In Non-Fail Safe, it stays energized unless a fault occurs.
