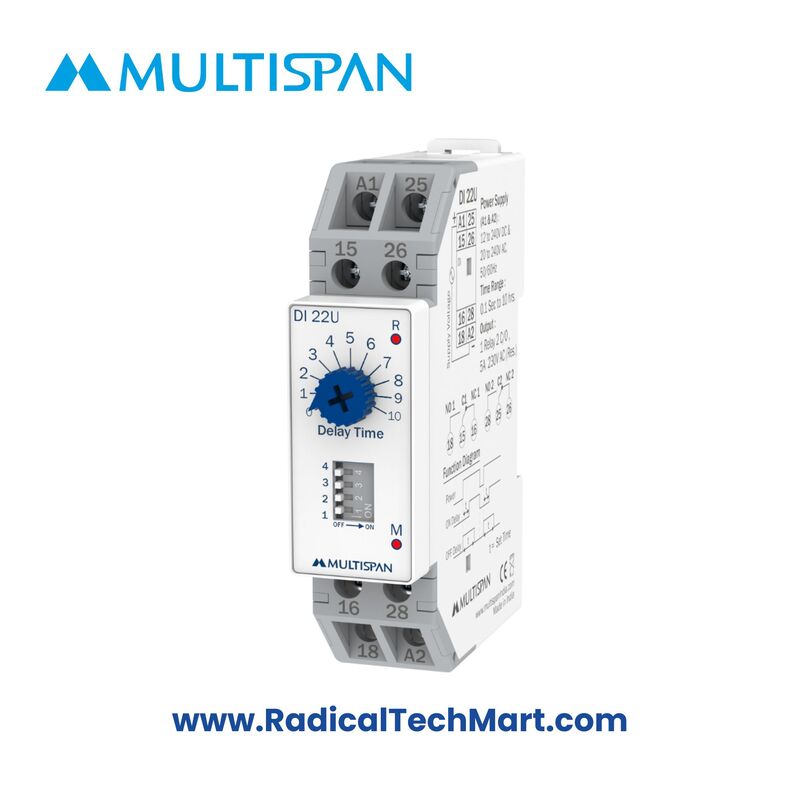

DI-22U Multispan

Product Summary:
The multispan DI-22U is a compact DIN rail-mounted on-off delay timer with a universal power supply and a wide timing range from 0.1 seconds to 10 hours. It is ideal for industrial automation panels requiring precise time delay functionality with relay output.

Key Features:

• Wide time range: 0.1 sec to 10 hours

• On-delay and Off-delay selectable

• Universal auxiliary supply: 12–240V DC / 20–240V AC

• 1 Relay Output (2 C/O), 5A @ 230V AC

• Compact design: 22.5mm width, DIN rail mount

• LED indication for relay status

Applications:

• Industrial process automation

• Control panels and motor starters

• HVAC systems and chillers

• Packaging and bottling machinery

• Sequential control operations

Product Benefits:

• Versatile timing control for multiple industrial applications

• Space-saving DIN-rail mounting for compact panels

• Reduces wiring complexity with universal supply

• Robust build for long-term durability

• Enhances system protection with reliable switching

FAQs:

Q. What is the time range supported by the DI-22U timer?
A. The timer supports a programmable range from 0.1 seconds to 10 hours, selectable in seconds, minutes, or hours.

Q. Can this timer operate on both AC and DC power?
A. Yes, it supports universal auxiliary supply ranging from 12V–240V DC and 20V–240V AC.

Q. How do I mount this timer in my panel?
A. The DI-22U is designed for DIN rail mounting. Simply pull the rear clamp, place on the rail, and release to lock.
