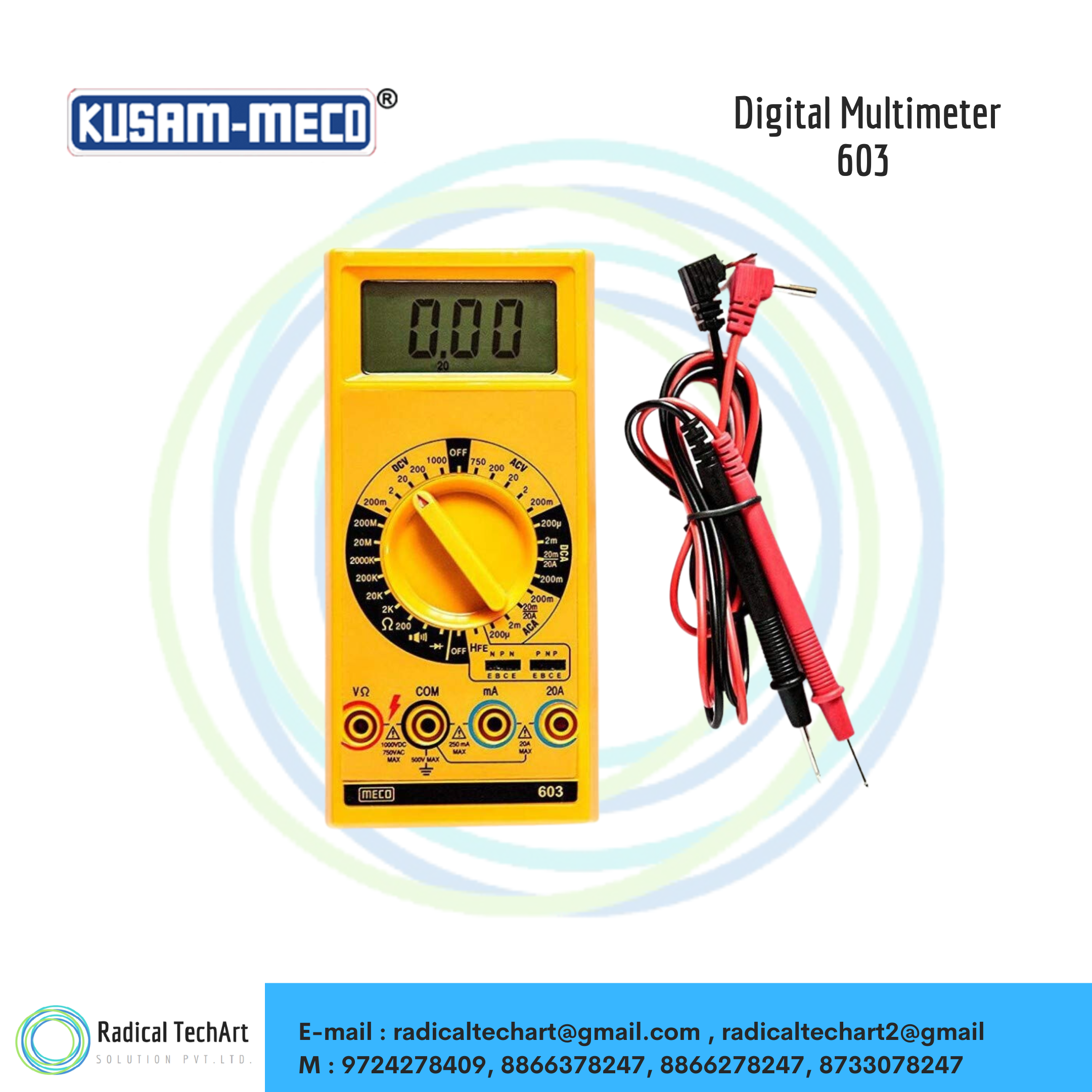

Digital Multimeter 603
₹2,000.00
Features
• High Accuracy, Digital Reading
• Large LCD for easy reading
• Automatic Zero adjustment.
• Instant continuity buzzer
• OverLoad Protection on all ranges
• Recessed safety designed Input Jacks
• Diode, Continuity Test & Transistor hFE Test.
• Automatic -ve polarity indication
• High Accuracy, Digital Reading
• Large LCD for easy reading
• Automatic Zero adjustment.
• Instant continuity buzzer
• OverLoad Protection on all ranges
• Recessed safety designed Input Jacks
• Diode, Continuity Test & Transistor hFE Test.
• Automatic -ve polarity indication
General Specifications
• Sensing : Average Sensing.
• Basic Accuracy : ± (0.5%rdg + 1dgt)
• Display : 3 ½ digit Max. 1999 Counts Large LCD display
• Display Size : 18 mm
• Measurement Rate : 3 measurements per second nominal
• Over range Indication : MSB (highest) digit (1) or (-1) is displayed.
• Low battery : The "
" sign is displayed when the battery voltage drops below the operating Voltage.
• Operating Temperature : 0 °C to +50 °C; 70%R.H.
• Storage Temperature : -20 °C to 60 °C; 0-80%R.H. (With Battery Removed)
• Power : Single, Standard 9V battery.
• Dimension : 170(L) x 80(W) x 40(H)mm
• Weight : Approx. 250g (including battery)
• Sensing : Average Sensing.
• Basic Accuracy : ± (0.5%rdg + 1dgt)
• Display : 3 ½ digit Max. 1999 Counts Large LCD display
• Display Size : 18 mm
• Measurement Rate : 3 measurements per second nominal
• Over range Indication : MSB (highest) digit (1) or (-1) is displayed.
• Low battery : The "
" sign is displayed when the battery voltage drops below the operating Voltage.• Operating Temperature : 0 °C to +50 °C; 70%R.H.
• Storage Temperature : -20 °C to 60 °C; 0-80%R.H. (With Battery Removed)
• Power : Single, Standard 9V battery.
• Dimension : 170(L) x 80(W) x 40(H)mm
• Weight : Approx. 250g (including battery)
