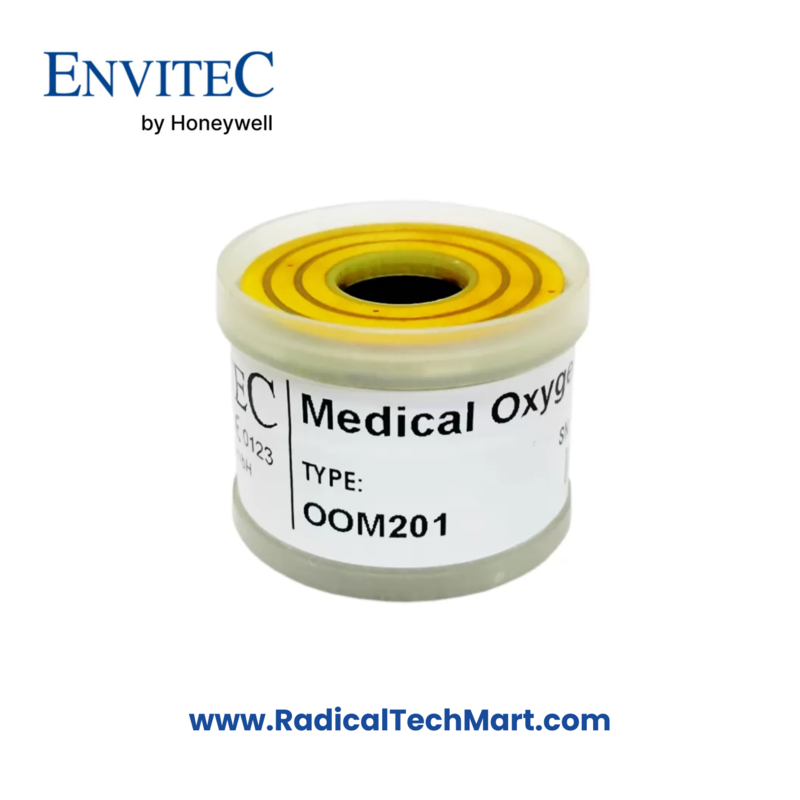

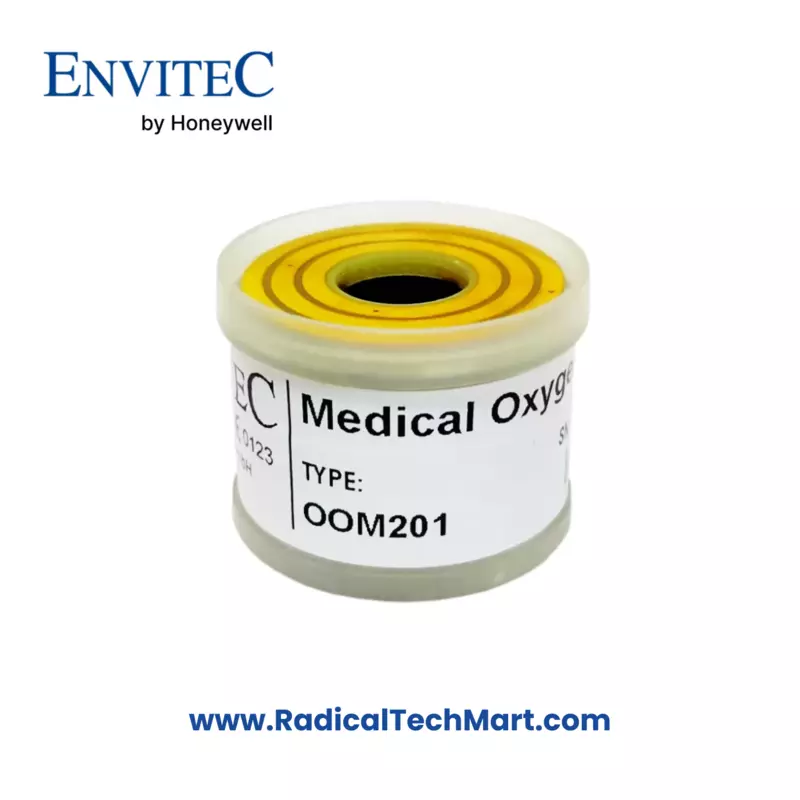

Envitec Oxygen Sensor OOM201

The Honeywell Envitec OOM201 Oxygen Sensor is designed for medical applications, offering precise and reliable oxygen concentration measurements. Below are its key specifications:

• Measurement Range: 0% to 100% oxygen at atmospheric pressure.

• Output Voltage: 14 mV to 20.7 mV (Dual Cathode) with a load of 600 Ohms.

• Electrical Interface: Gold-plated slip rings.

• Accuracy and Repeatability: Less than 1% volume O₂ when calibrated at 100%.

• Influence of Mechanical Shock: Less than 1% relative after a fall from 1 meter.

• Operating Temperature: 0°C to 50°C.

• Recommended Storage Temperature: +5°C to +15°C.

• Recommended Load: Greater than or equal to 10 kΩ.

• Warm-Up Time: Less than 30 minutes after sensor replacement.

• Nominal Sensor Lifetime: Greater than or equal to 500,000% volume oxygen hours.

• Weight: Approximately 28 grams.

These specifications ensure the OOM201 sensor meets the stringent requirements of medical respiratory gas monitoring devices.
