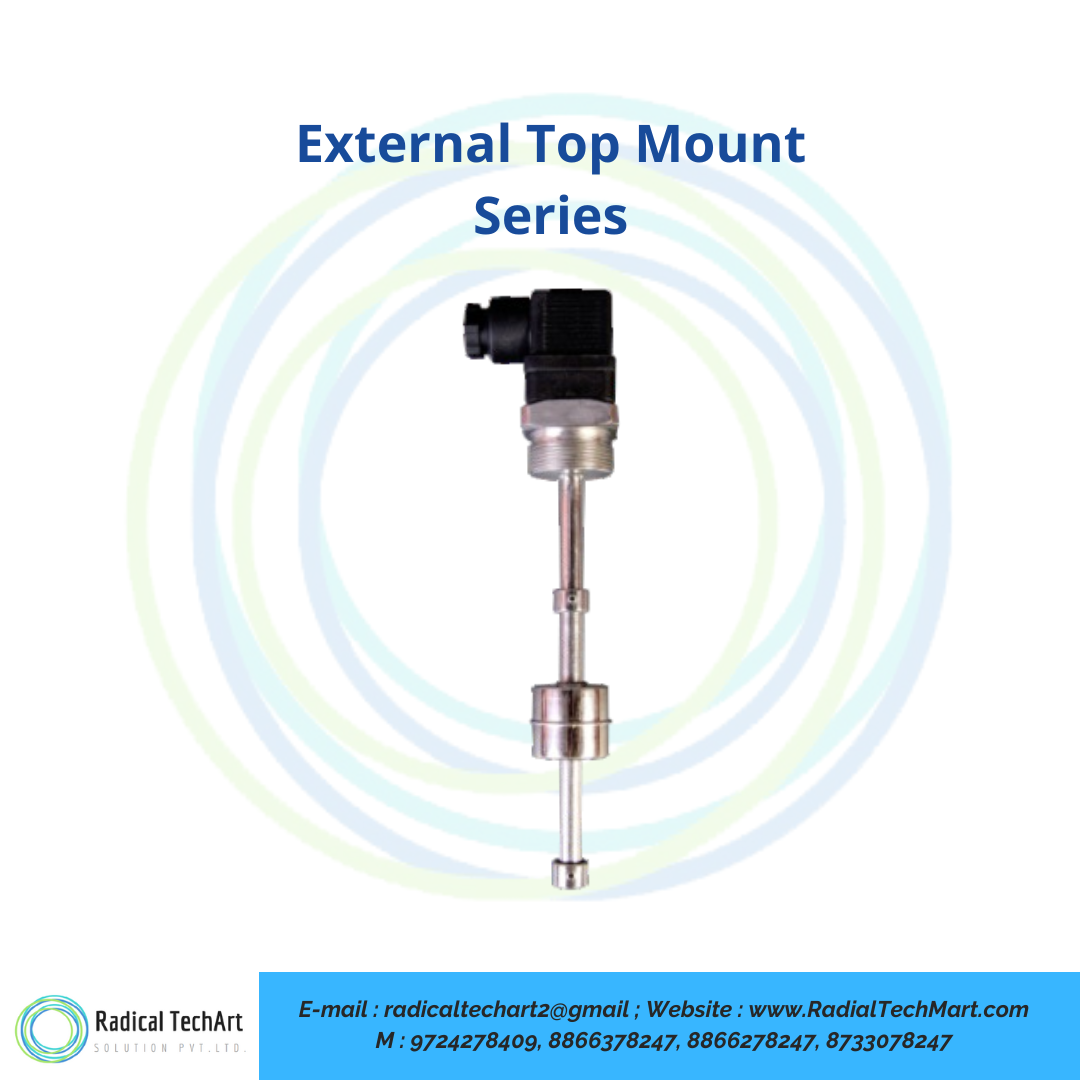

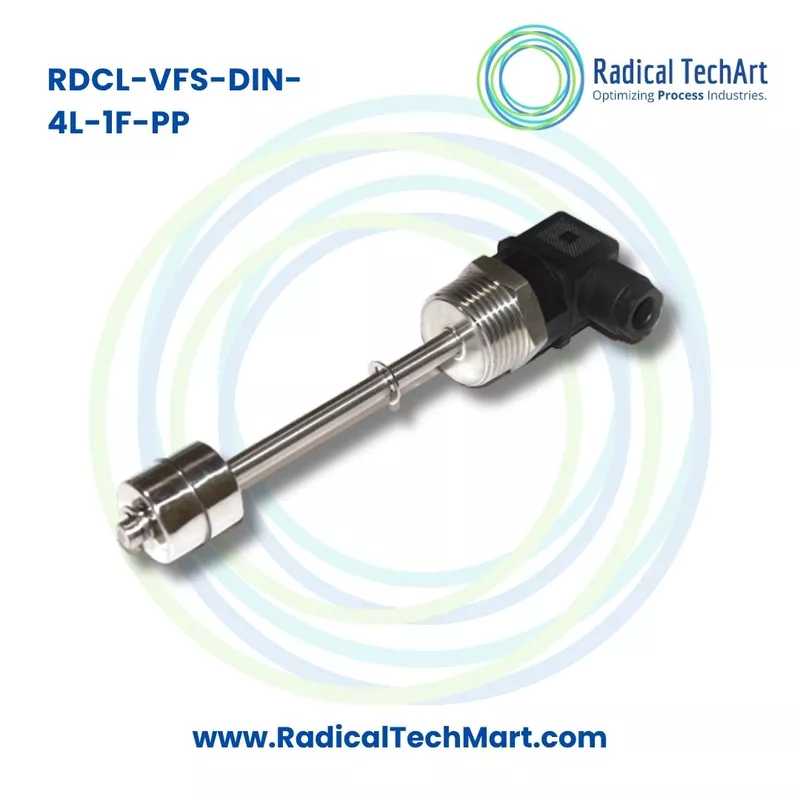

External Top Mount DIN Connector Level Switch

A. Product Overview

The External Top Mount DIN Connector Level Switch is a compact top mounted liquid level switch used for detecting and controlling liquid levels in tanks and reservoirs. It is designed with a stainless steel stem and float options in SS 316L, Nylon and Polypropylene, depending on the application requirement.

This level switch comes with an easy DIN 43650 connector for quick electrical termination and convenient maintenance. The mounting is available with 1 inch BSP male plug, and customized options such as 1 and 1/2 inch BSP, flange and TC fitting can also be provided as per tank design.

The switch can be used for single point level detection and can be customized for different insertion depths and switching points. It is suitable for industrial applications where reliable level sensing, compact construction and easy installation are required.

B. Working Principle

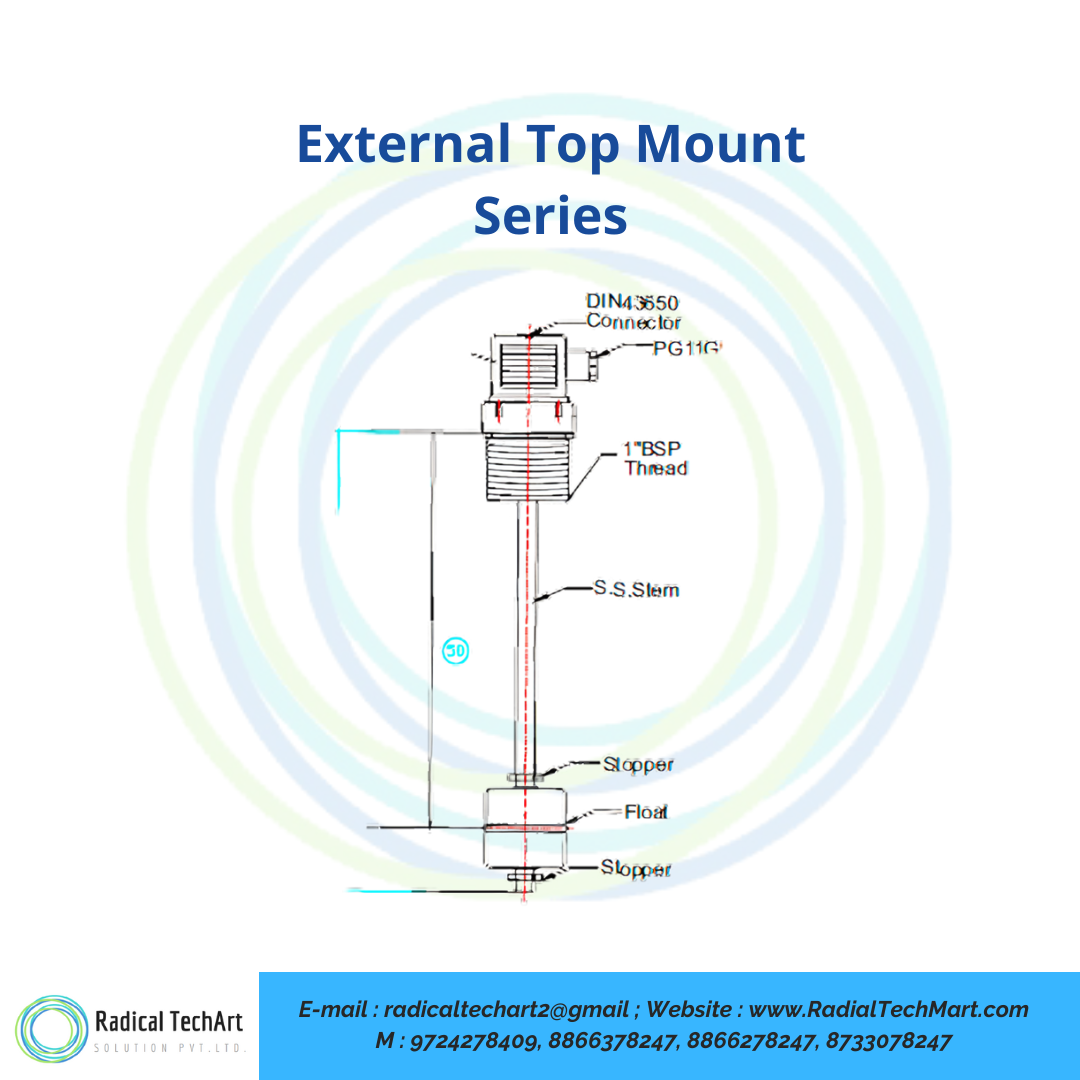

The External Top Mount DIN Connector Level Switch works on the magnetic float and reed switch principle.

A float moves up and down with the liquid level inside the tank. As the liquid level rises or falls, the float moves along the stainless steel stem. Inside the stem, a reed switch is positioned at the required switching point. When the magnetic float reaches that point, the magnet inside the float activates the reed switch and changes the electrical contact status.

The switching action can be configured as normally open and normally closed by selecting the correct float orientation during installation. This allows the same level switch to be used for high level detection, low level detection, pump control, alarm indication and tank level protection.

C. Why It Is Used

This level switch is used to provide accurate and dependable liquid level detection in tanks where compact top mounting and easy wiring are required. It helps automate level monitoring and prevents manual checking of liquid levels.

It is mainly used for:

High level alarm in tanks
Low level alarm in tanks
Pump dry run protection
Overflow prevention
Oil level monitoring
Liquid level control in machinery
Tank automation and process control
Single point and customized level switching

The DIN connector makes wiring simple and service-friendly, while the stainless steel and engineering plastic float options make it suitable for different liquid types and operating conditions.

D. Suitable Buyers

This product is suitable for buyers who need compact and reliable tank level sensing solutions.

Suitable buyers include:

Automotive machinery manufacturers
Food and liquid processing industries
Printing machinery manufacturers
Industrial automation companies
Panel builders and system integrators
Oil tank and hydraulic system manufacturers
OEM machine manufacturers
Water treatment and process tank users
Maintenance and utility departments
Chemical and process industries
Instrumentation suppliers and resellers

Key Features

Compact external top mount design
DIN 43650 connector for easy wiring
SS 304 and SS 316 stem options
SS 316L, Nylon and Polypropylene float options
Magnetic float operated reed switch mechanism
Normally open and normally closed configurable switching
SPST switching type
Customizable insertion length
Customizable float size and switching points
Suitable for oil, water and industrial liquids
1 inch BSP mounting with custom connection options
Available with Teflon gasket and silicone gasket
Suitable for harsh industrial environments

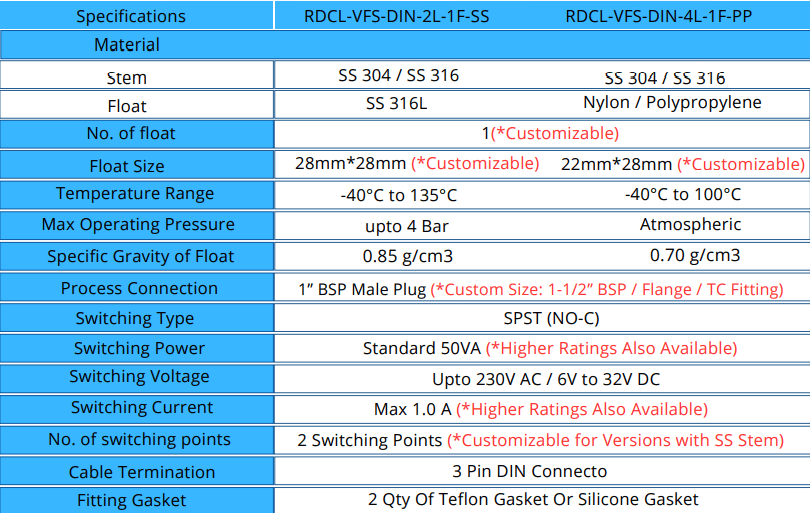

Technical Highlights

Material: SS 304 and SS 316 stem
Float material: SS 316L, Nylon and Polypropylene
Float size: 28 mm x 28 mm and 22 mm x 28 mm, customizable
Temperature range: minus 40 degree Celsius to 135 degree Celsius for SS float model
Temperature range: minus 40 degree Celsius to 100 degree Celsius for PP float model
Maximum operating pressure: Up to 4 bar for SS float model
Operating pressure for PP float model: Atmospheric
Specific gravity: 0.85 g per cm3 for SS float model and 0.70 g per cm3 for PP float model
Process connection: 1 inch BSP male plug
Custom connection: 1 and 1/2 inch BSP, flange and TC fitting
Switching type: SPST
Switching voltage: Up to 230 V AC and 6 V to 32 V DC
Switching current: Maximum 1 Ampere
Cable termination: 3 pin DIN connector

FAQ

1. What is an External Top Mount DIN Connector Level Switch?
An External Top Mount DIN Connector Level Switch is a tank mounted float level switch used to detect liquid level from the top side of a tank. It uses a magnetic float and reed switch to provide ON and OFF switching.

2. What is the use of the DIN connector in this level switch?
The DIN connector allows quick and easy electrical connection. It makes wiring simple, improves serviceability and helps reduce installation time.

3. Can this level switch be used for oil tanks?
Yes, this switch is suitable for oil tanks, hydraulic oil tanks, lubrication tanks and other industrial liquid storage tanks, depending on material compatibility.

4. What materials are available for the float?
The float can be supplied in SS 316L, Nylon and Polypropylene based on the liquid type, temperature and application requirement.

5. Can the switching action be changed from normally open to normally closed?
Yes, the switching action can be configured as normally open and normally closed by changing the float orientation during installation.

6. Is this level switch suitable for high temperature applications?
The stainless steel float model can operate up to 135 degree Celsius, making it suitable for many industrial high temperature liquid level sensing applications.

7. Can the insertion length be customized?
Yes, the insertion depth can be customized as per tank height and required switching level.

8. Can this switch provide multiple switching points?
Yes, customized versions with multiple switching points can be provided, especially with stainless steel stem construction.

9. What process connections are available?
The standard connection is 1 inch BSP male plug. Custom options such as 1 and 1/2 inch BSP, flange and TC fitting can also be provided.

10. Where is this level switch commonly used?
It is commonly used in automotive applications, liquid food applications, printing machinery, industrial tanks, oil reservoirs, process tanks and automation systems.
