A. Product Overview

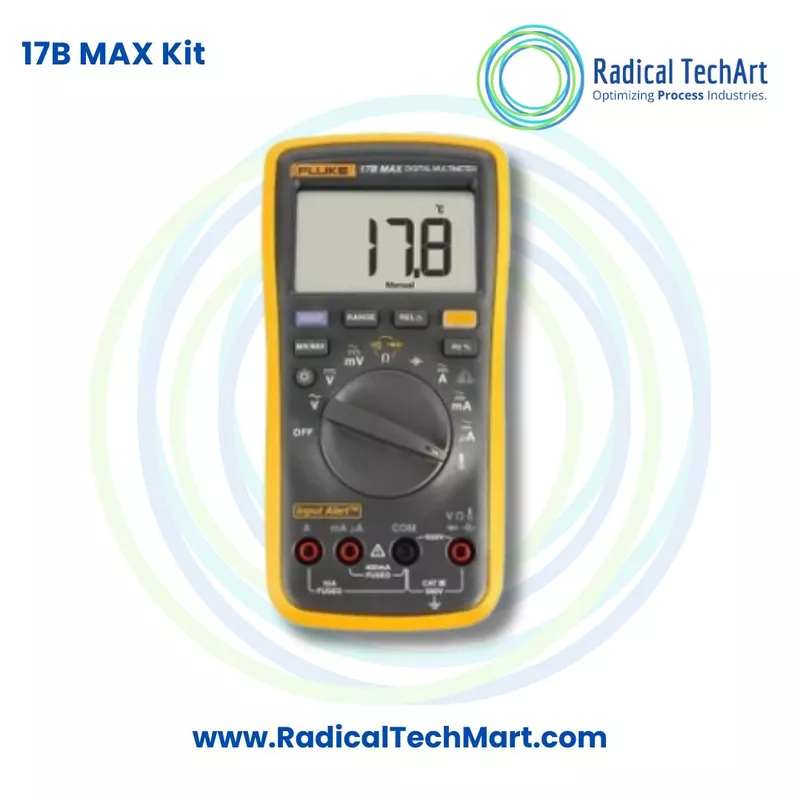

The Fluke 17B MAX Kit Digital Multimeter is a versatile handheld testing instrument developed for technicians who work with electrical installations, industrial equipment and electronic circuit boards. It combines common electrical measurements with temperature, frequency, duty cycle and capacitance testing in one portable meter.

Its 6000-count LCD provides clear measurement readings and updates approximately three times per second. The meter measures AC and DC voltage up to 1000 V, current up to 10 A, resistance up to 40 MΩ, capacitance up to 2000 µF and frequency from 10 Hz to 100 kHz. Temperature can be measured from minus 55°C to 400°C using the supplied Type K thermocouple.

An audible and visual Input Alert alarm warns the user when the test leads are connected to an incorrect terminal for the selected measurement function. This helps reduce connection errors during electrical testing. The meter can also be awakened from sleep mode by pressing any button.

Main Features

• 6000-count backlit LCD
• AC and DC voltage measurement up to 1000 V
• AC and DC current measurement up to 10 A
• Resistance measurement up to 40 MΩ
• Capacitance measurement up to 2000 µF
• Frequency measurement from 10 Hz to 100 kHz
• Duty-cycle measurement from 1 percent to 99 percent
• Temperature measurement using a Type K thermocouple
• Continuity and diode testing
• Audible and visual incorrect-input warning
• CAT III 600 V safety rating
• Minimum battery life of approximately 500 hours
• TL75 general-purpose and TL31 extra-slim test leads included

The Fluke 17B MAX Kit includes both TL75 test leads and TL31 extra-slim test leads, each supplied with protective caps. It also includes a Type K thermocouple, two AA batteries and safety information.

B. Working Principle

The Fluke 17B MAX works by receiving an electrical signal through its test leads and processing that signal through its internal measurement circuits. The user selects the required function using the rotary selector, connects the leads to the appropriate input terminals and places the probes across or within the circuit being tested.

For voltage measurement, the test leads are connected across two points in a circuit. The meter detects the electrical potential difference and converts it into a digital reading.

For current measurement, the meter is connected in series with the circuit so that current passes through the meter’s protected current-measurement section.

For resistance and continuity testing, the meter applies a small internal test signal to the disconnected circuit or component. It measures the resulting response and calculates the resistance. During continuity testing, an audible signal helps identify a complete electrical path.

For capacitance measurement, the meter charges and discharges the connected capacitor internally and calculates its capacitance from the electrical response.

For frequency and duty-cycle measurement, the meter analyses the repeating electrical waveform and displays its frequency or the proportion of time the signal remains active.

For temperature measurement, the supplied Type K thermocouple produces a small voltage corresponding to the measured temperature. The multimeter processes this signal and displays the temperature value.

The Input Alert system monitors the selected measurement mode and test-lead terminal positions. If the leads are inserted incorrectly for the chosen function, the meter provides an audible and visual warning.

C. Why It Is Used

The Fluke 17B MAX Kit is used to diagnose electrical faults, verify circuit conditions and test electrical or electronic components. It reduces the need to carry separate instruments for voltage, current, resistance, temperature, frequency and capacitance measurements.

It is commonly used for:

• Checking AC and DC power supplies
• Measuring voltage in electrical panels
• Testing batteries and DC circuits
• Measuring electrical load current
• Finding open circuits and broken wires
• Checking switches, relays, fuses and cables
• Testing resistors, capacitors and diodes
• Diagnosing control panels and electronic boards
• Measuring frequency and duty-cycle signals
• Checking equipment and component temperature
• Carrying out preventive electrical maintenance
• Troubleshooting industrial machinery

The TL75 leads are suitable for general electrical testing, while the TL31 extra-slim leads provide better access to small terminals, closely spaced components and printed circuit boards. The catalogue visually demonstrates the fine-tip probes being used on small circuit-board components on page 2.

D. Suitable Buyers

The Fluke 17B MAX Kit is suitable for:

• Industrial electricians
• Electrical maintenance technicians
• Electronics repair technicians
• Control-panel manufacturers
• Automation engineers
• Field service engineers
• Electrical contractors
• Facility maintenance teams
• Heating, ventilation and air-conditioning technicians
• Laboratory and testing personnel
• Electronic research and development teams
• Technical training institutes
• Power-supply and circuit-board repair centres
• Original equipment manufacturers
• Industrial production and maintenance departments

It is particularly useful for professionals who need both general-purpose electrical probes and extra-slim probes for detailed electronic testing.

Frequently Asked Questions

1. What is the Fluke 17B MAX Kit?

The Fluke 17B MAX Kit is a handheld digital multimeter package that includes the Fluke 17B MAX meter, TL75 general-purpose test leads, TL31 extra-slim test leads, protective caps, a Type K thermocouple, two AA batteries and safety information.

2. What can the Fluke 17B MAX measure?

It can measure AC voltage, DC voltage, AC current, DC current, resistance, capacitance, frequency, duty cycle and temperature. It also supports continuity and diode testing.

3. What is the maximum voltage range of the Fluke 17B MAX?

The meter can measure AC and DC voltage up to 1000 V. Its safety classification is CAT III 600 V.

4. What is the maximum current measurement range?

The Fluke 17B MAX can measure AC and DC current up to 10 A.

5. Does the Fluke 17B MAX measure temperature?

Yes. It measures temperature using a Type K thermocouple. The specified temperature range extends from minus 55°C to 400°C, depending on the portion of the range being measured.

6. What is the capacitance range of the Fluke 17B MAX?

The meter can measure capacitance from 40 nF ranges up to a maximum range of 2000 µF.

7. What is the difference between TL75 and TL31 test leads?

TL75 test leads are general-purpose probes suitable for routine electrical measurements. TL31 extra-slim test leads have finer probe tips designed for small terminals, densely arranged components and printed circuit-board testing.

8. Does the kit include both TL75 and TL31 leads?

Yes. The Fluke 17B MAX Kit includes one set of TL75 test leads and one set of TL31 extra-slim test leads. Both sets are supplied with protective caps.

9. What does the Input Alert feature do?

The Input Alert feature produces an audible and visual warning when the test leads are connected to an incorrect input terminal for the selected measurement function. It helps the user identify connection mistakes before testing.

10. Does the Fluke 17B MAX have a backlit display?

Yes. It has a 6000-count backlit LCD that updates approximately three times per second.

11. Can the Fluke 17B MAX test circuit boards?

Yes. The TL31 extra-slim test leads are designed to reach small components, narrow contact points and closely spaced terminals on electronic circuit boards.

12. Can it measure frequency and duty cycle?

Yes. The Fluke 17B MAX measures frequency from 10 Hz to 100 kHz and duty cycle from 1 percent to 99 percent.

13. Is the Fluke 17B MAX suitable for industrial electrical work?

Yes. Its CAT III 600 V safety rating, fused current inputs, wide measurement range and Input Alert warning make it suitable for industrial maintenance, control-panel testing and electrical troubleshooting.

14. What batteries does the Fluke 17B MAX use?

It operates using two AA batteries. The specified minimum battery life is approximately 500 hours under stated operating conditions.

15. Is the Type K thermocouple included in the kit?

Yes. A Type K thermocouple is included with the Fluke 17B MAX Kit for temperature measurement.
