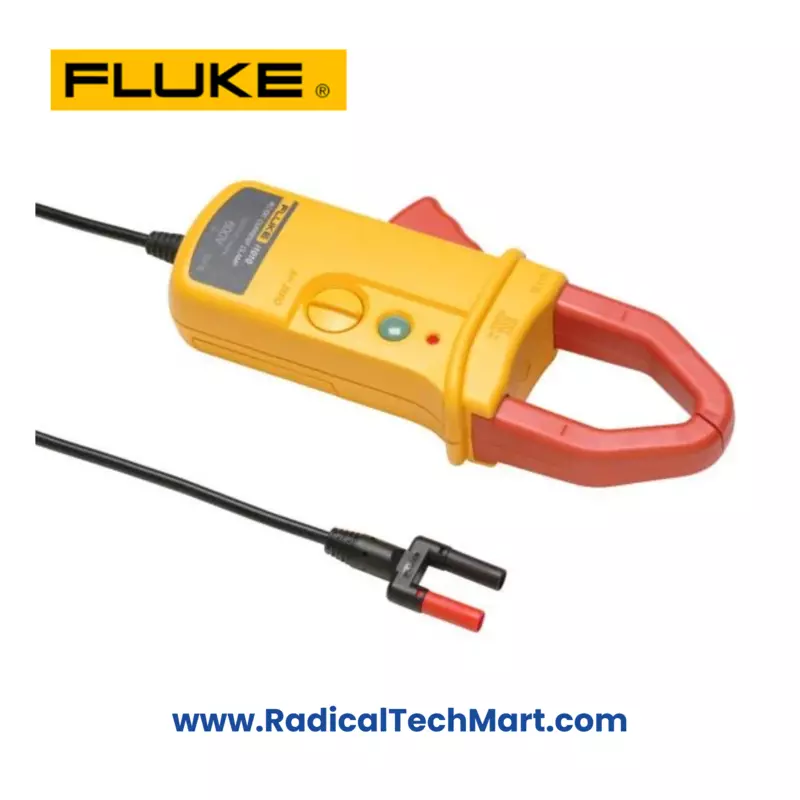

Fluke i1010 AC/DC Current Clamp

Summary:
The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect sensor that seamlessly extends the current measurement range of Fluke DMMs, covering 1 A–600 A AC and 1 A–1000 A DC without circuit interruption.

Key Features:

• AC current range: 1 A to 600 A RMS

• DC current range: 1 A to 1000 A

• Basic accuracy: ±(2% of reading + 0.5 A)

• Hall-effect measurement with 1 mV/A output

• Zero-error adjustment for precise readings

• CAT III 600 V safety rating

• 1.6 m (5.25 ft) shrouded banana-plug output cable

• 1-year warranty; battery life ≈ 60 h on one 9 V battery

Applications:

• Electrical load testing & commissioning

• HVAC system diagnostics

• Industrial machinery maintenance

• Motor and drive current analysis

• Automotive electrical troubleshooting

Product Benefits:

• Extends multimeter capabilities for high-current jobs

• Non-intrusive clamp design; no circuit breaks

• Wide AC/DC range for versatile use

• High safety rating for field and shop use

• Long battery life and rugged build ensure uptime

FAQs:

Q.1 Is the i1010 compatible with all Fluke DMMs?
Yes—fits most Fluke handheld multimeters (e.g., 117, 175, 287, 289).

Q.2 What’s the maximum conductor size it accepts?
Up to 30 mm diameter or two 25 mm conductors side by side.

Q.3 Can it measure both AC and DC current down to 0.5 A?
It’s specified down to 1 A with usable response to 0.5 A.
