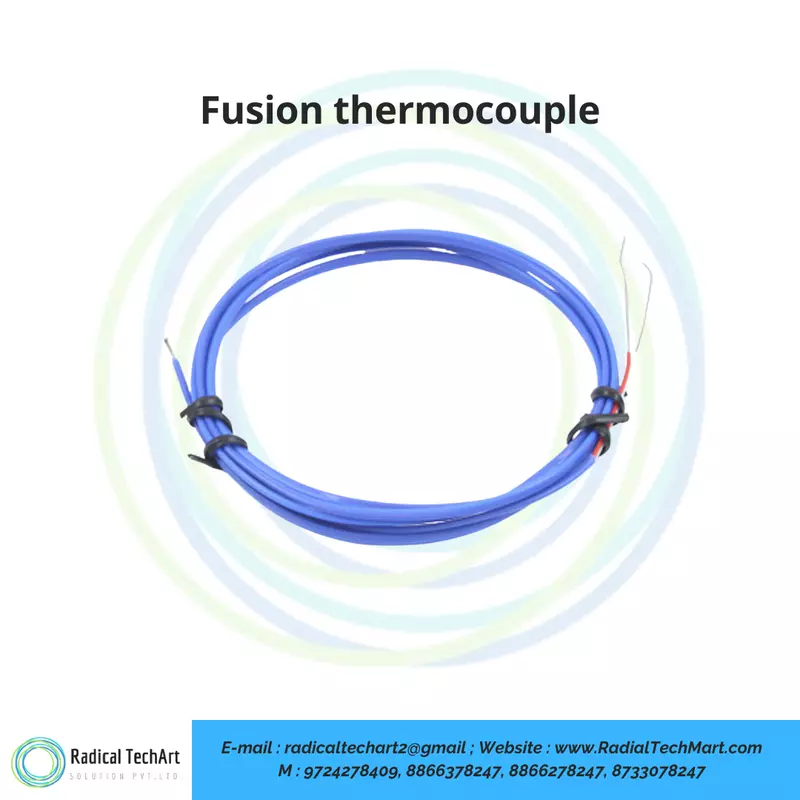

Fusion Thermocouple Sensor

A. Product Overview

Fusion Thermocouple is used for accurate temperature measurement in applications where quick response and direct temperature sensing are required. It works by using two different metal wires joined at a sensing junction. When this junction is exposed to heat, it generates a small voltage signal that changes according to the temperature difference.

This thermocouple is available in E, K, J, and T type options, making it suitable for different temperature sensing requirements. With insulation options such as SS braided, Teflon, and Fiberglass, it can be selected based on the working environment, mechanical protection requirement, and installation condition.

The exposed junction design provides faster response time because the sensing tip comes directly in contact with the temperature source. It is suitable for temperature monitoring in industrial process control, laboratory setups, heating systems, testing equipment, and general measurement applications.

B. Working Principle

A Fusion Thermocouple works on the thermoelectric effect. It is made by joining two different metal conductors at one end, known as the measuring junction. When this junction is heated, a voltage is produced due to the temperature difference between the measuring junction and the reference end.

This voltage signal is very small, but it changes in proportion to temperature. A temperature controller, indicator, data logger, or measuring instrument reads this signal and converts it into a temperature value.

The exposed junction design allows the thermocouple to sense temperature quickly because the junction is directly exposed to the medium or surface being measured. This makes it useful where fast temperature response is required.

C. Why It Is Used

Fusion Thermocouple is used because it provides quick, reliable, and cost-effective temperature measurement. It is easy to install, compatible with many temperature indicators and controllers, and available in different thermocouple types for different application needs.

It is especially useful in applications where fast response time is important. The exposed junction helps detect temperature changes faster than protected or grounded junction designs.

It is also preferred because it can be customized with different wire insulation materials and wire lengths. SS braided insulation provides mechanical protection, Teflon insulation provides good chemical resistance and electrical insulation, and Fiberglass insulation is suitable for higher temperature surroundings.

D. Suitable Buyers

Fusion Thermocouple is suitable for buyers who need accurate and quick temperature measurement in industrial and testing applications.

Suitable buyers include:

Industrial manufacturers

Laboratory equipment users

Heating equipment manufacturers

Process control system users

Machine manufacturers

Panel builders

Automation system integrators

Maintenance teams

Temperature controller users

Research and testing laboratories

OEM machine manufacturers

Pharmaceutical plants

Food processing units

Packaging machine manufacturers

HVAC and refrigeration service providers

FAQ

1. What is a Fusion Thermocouple?

A Fusion Thermocouple is a temperature sensor used to measure temperature by generating a voltage signal based on the temperature difference between two junctions. It is commonly used in industrial, laboratory, and process temperature measurement applications.

2. Which thermocouple types are available in this product?

This product is available in E, K, J, and T type options. The correct type can be selected based on the application temperature range, accuracy requirement, and instrument compatibility.

3. What is the temperature range of this Fusion Thermocouple?

The available temperature range is 0 to 400 °C, depending on the selected thermocouple type, wire insulation, and application condition.

4. What insulation options are available?

This thermocouple is available with SS braided, Teflon, and Fiberglass insulation. Each insulation type is selected based on temperature, flexibility, mechanical protection, and environmental condition.

5. What is the use of an exposed junction thermocouple?

An exposed junction thermocouple is used where fast temperature response is required. Since the sensing junction is directly exposed, it can detect temperature changes quickly.

6. What wire length options are available?

Fusion Thermocouple is available in wire length options from 0.5 mtr to 10 mtr, depending on installation requirement.

7. Where can Fusion Thermocouple be used?

It can be used in industrial temperature monitoring, laboratory testing, process control, heating systems, machine temperature measurement, automation panels, and testing equipment.

8. Which insulation is better for industrial use?

SS braided insulation is preferred where mechanical protection is required. Teflon insulation is suitable where chemical resistance and clean insulation are needed. Fiberglass insulation is suitable for applications with higher surrounding temperature.

9. Can this thermocouple be connected to a temperature controller?

Yes, Fusion Thermocouple can be connected to compatible temperature controllers, indicators, data loggers, and PLC input modules that support the selected thermocouple type.

10. How do I select the right Fusion Thermocouple?

To select the right Fusion Thermocouple, check the thermocouple type, temperature range, wire insulation, wire gauge, wire length, junction type, and compatibility with your controller or measuring instrument.
