HIOKI Digital Insulation Testers
HIOKI Digital Insulation Testers are professional instruments designed for insulation resistance testing in electrical maintenance, industrial equipment, cables, motors, panels, switchgear and photovoltaic systems. Models such as HIOKI IR4056, IR4057 and IR4053 provide selectable test voltages up to 1000 V and insulation resistance measurement up to 4000 MΩ. Depending on the model, features include PASS and FAIL comparator indication, continuity testing, AC and DC voltage measurement, automatic discharge, live circuit detection, wireless data transfer and dedicated solar PV insulation testing.
Customize
Share :
A. Product Overview
HIOKI Digital Insulation Testers are used to evaluate the insulation condition of electrical wiring, equipment and power systems. They help technicians detect insulation deterioration, leakage risks and potential electrical faults before they develop into serious failures.
The HIOKI range includes models for general electrical maintenance as well as specialized photovoltaic applications.
Key models include:
HIOKI IR4056 Series

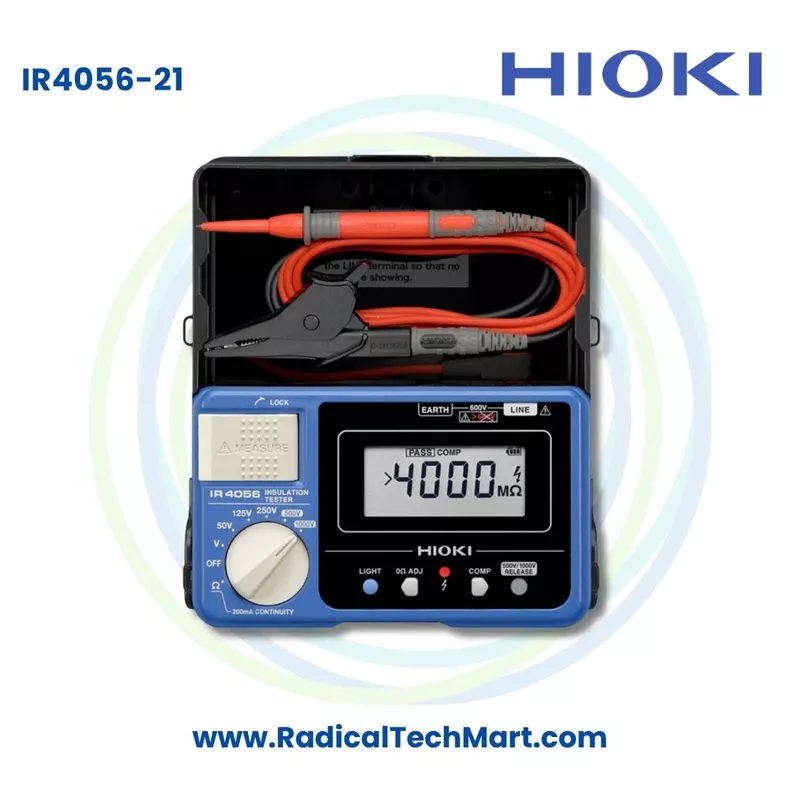

A five range digital insulation tester with selectable 50 V, 125 V, 250 V, 500 V and 1000 V test voltages. It supports insulation resistance measurement up to 4000 MΩ and is suitable for routine electrical maintenance.
HIOKI IR4057 Series
A professional digital insulation tester with fast PASS and FAIL judgment, continuity testing and voltage measurement. Selected versions can support wireless data transfer using the HIOKI Z3210 Wireless Adapter and GENNECT Cross.
HIOKI IR4053 Series
Designed specifically for photovoltaic and solar power systems. It allows insulation resistance testing of PV installations and supports DC voltage measurement up to 1000 V.
These instruments are designed for electricians, maintenance engineers, service technicians and electrical testing professionals who require fast and reliable insulation testing.
B. Working Principle
A digital insulation tester applies a controlled DC test voltage between the conductor and insulation or between selected points of an electrical circuit.
The tester measures the very small current that passes through the insulation. Using the applied voltage and measured leakage current, the instrument determines the insulation resistance and displays the result in megohms.
Higher insulation resistance generally indicates better electrical insulation, while a low insulation resistance value may indicate deterioration, moisture, contamination, damaged cables or insulation failure.
HIOKI Digital Insulation Testers provide selectable test voltages depending on the equipment being tested. Common test voltage ranges include:
50 V
125 V
250 V
500 V
1000 V
The instrument displays the measured insulation resistance and, on supported models, provides comparator based PASS and FAIL indication for faster testing.
After testing, the automatic discharge function helps discharge residual electrical energy from the circuit.
For photovoltaic applications, models such as the HIOKI IR4053 include a dedicated PV measurement function designed for testing solar power systems.
C. Why HIOKI Digital Insulation Testers Are Used
HIOKI Digital Insulation Testers are used to verify whether electrical insulation is still performing safely and effectively.
They are commonly used for:
- Testing motor insulation
- Testing electrical cables and wiring
- Checking switchgear insulation
- Testing electrical distribution panels
- Inspecting transformers and electrical equipment
- Preventive electrical maintenance
- Troubleshooting insulation leakage
- Testing solar photovoltaic installations
- Verifying electrical equipment after installation or repair
- Identifying deteriorated or damaged insulation
Routine insulation resistance testing can help maintenance teams identify developing electrical problems before equipment failure occurs.
D. Suitable Buyers
HIOKI Digital Insulation Testers are suitable for:
Electrical contractors
Industrial maintenance engineers
Electrical maintenance departments
Panel builders
Motor repair workshops
Electrical equipment manufacturers
Facility management companies
Solar EPC companies
Solar plant maintenance teams
Electrical testing laboratories
Power distribution contractors
HVAC maintenance companies
Automation and control panel manufacturers
Machine manufacturers
Electrical service technicians
Preventive maintenance teams
They are especially useful in industries where regular insulation testing is part of equipment inspection and electrical safety procedures.
Frequently Asked Questions
1. What is a HIOKI Digital Insulation Tester?
A HIOKI Digital Insulation Tester is an electrical testing instrument used to measure insulation resistance in cables, motors, electrical panels, machines and other electrical systems.
2. Which HIOKI insulation tester models are available?
Common models include HIOKI IR4056, HIOKI IR4057 and HIOKI IR4053. Each model is designed for different electrical maintenance and testing applications.
3. What test voltages are available in HIOKI insulation testers?
Models such as the IR4056 and IR4057 provide selectable test voltages of 50 V, 125 V, 250 V, 500 V and 1000 V.
4. What is the maximum insulation resistance measurement range?
Selected HIOKI models can measure insulation resistance up to 4000 MΩ.
5. Can HIOKI insulation testers be used for motors?
Yes. They can be used for checking the insulation resistance of motors and other electrical machinery.
6. Can HIOKI insulation testers test electrical cables?
Yes. They are commonly used for insulation resistance testing of electrical cables, wiring and distribution circuits.
7. Which HIOKI model is suitable for solar PV systems?
The HIOKI IR4053 is designed specifically for photovoltaic and solar power system insulation testing.
8. Can the HIOKI IR4053 measure DC voltage?
Yes. The HIOKI IR4053 supports DC voltage measurement up to 1000 V.
9. Does the HIOKI IR4057 support wireless communication?
Supported IR4057 versions can use the optional HIOKI Z3210 Wireless Adapter for transferring measurement data to compatible devices using GENNECT Cross.
10. What is the PASS and FAIL function?
The comparator function compares the measured insulation resistance against a predefined reference value and indicates whether the measurement passes or fails.
11. Do HIOKI insulation testers have an automatic discharge function?
Selected models include an automatic discharge function that helps discharge residual voltage after insulation resistance testing.
12. What is the difference between a megger and an insulation tester?
Both terms are commonly used for instruments that measure insulation resistance. HIOKI refers to these instruments as insulation testers or insulation resistance testers.
13. Can HIOKI insulation testers be used for preventive maintenance?
Yes. Regular insulation testing can help identify insulation deterioration before it results in equipment failure or electrical problems.
14. Are HIOKI insulation testers suitable for industrial applications?
Yes. They are suitable for electrical maintenance, industrial machinery, switchgear, panels, motors, cables and other electrical installations.
15. Where can HIOKI Digital Insulation Testers be used?
They can be used in factories, electrical panels, machine installations, motor repair facilities, commercial buildings, solar plants, manufacturing facilities and electrical maintenance operations.
