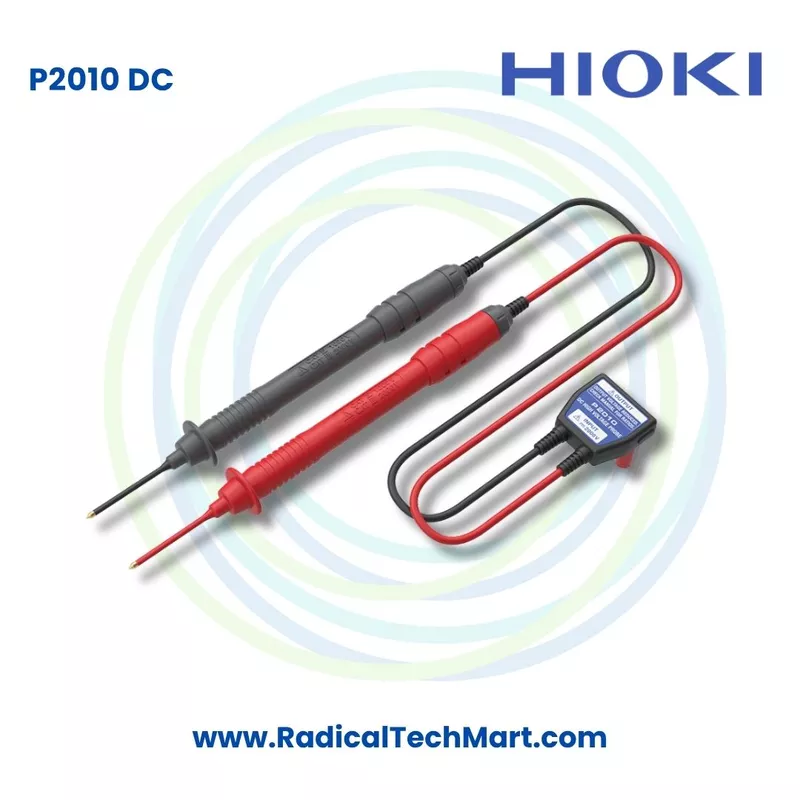

HIOKI P2010 DC High Voltage Probe
Customize
Share :
A. Product Overview
The HIOKI P2010 is a DC high voltage probe designed for professional electrical testing applications. It enables compatible HIOKI clamp meters and digital multimeters to measure high DC voltages up to 2000 V.
The probe is particularly useful in modern solar photovoltaic installations, where DC system voltages can be significantly higher than the direct measurement range of standard measuring instruments.
The P2010 is designed for professional technicians who need to carry out high voltage testing, commissioning, maintenance and troubleshooting work.
Key Features
• DC voltage measurement up to 2000 V
• CAT III 2000 V measurement capability
• Designed for solar PV high voltage applications
• Compatible with selected HIOKI clamp meters and digital multimeters
• Suitable for electrical inspection and maintenance
• Professional accessory for high voltage DC measurement
• Useful for solar installation testing and troubleshooting
B. Working Principle
The HIOKI P2010 works by reducing the high input DC voltage to a level that can be safely measured by a compatible HIOKI measuring instrument.
The probe is connected between the electrical circuit being tested and the compatible clamp meter or digital multimeter.
When a high DC voltage is applied to the probe, the internal circuitry scales the voltage before passing the measurement signal to the connected instrument.
The connected HIOKI instrument then displays the corresponding high voltage reading.
This allows technicians to measure voltages up to 2000 V DC without directly applying the full high voltage to the meter input.
C. Why HIOKI P2010 Is Used
The HIOKI P2010 is used when the DC voltage in an electrical system exceeds the normal measurement capability of a standard multimeter or clamp meter.
It is especially important in solar PV installations where series connected solar panels can generate very high DC voltages.
Using the P2010 allows technicians to perform high voltage measurements with compatible HIOKI instruments while maintaining an appropriate measurement configuration for high voltage work.
It can be used for:
• Solar PV string voltage measurement
• High voltage DC system testing
• Electrical installation commissioning
• Solar plant maintenance
• DC circuit troubleshooting
• Preventive maintenance
• High voltage inspection
• Electrical fault diagnosis
D. Suitable Buyers
The HIOKI P2010 DC High Voltage Probe is suitable for:
• Solar PV installation companies
• Solar maintenance engineers
• Electrical contractors
• Electrical testing technicians
• Industrial maintenance teams
• Electrical inspection professionals
• Solar EPC companies
• Power system engineers
• Field service engineers
• Renewable energy companies
• Solar commissioning engineers
• Electrical laboratories
• Facility maintenance departments
• Technicians working with high voltage DC systems
• Companies already using compatible HIOKI clamp meters or digital multimeters
Frequently Asked Questions
1. What is the HIOKI P2010?
The HIOKI P2010 is a DC high voltage probe designed for measuring high DC voltages with compatible HIOKI measuring instruments.
2. What is the maximum voltage range of the HIOKI P2010?
The HIOKI P2010 supports DC voltage measurement up to 2000 V.
3. Is the HIOKI P2010 suitable for solar PV systems?
Yes. It is designed for high voltage DC measurement and is particularly suitable for solar photovoltaic system testing and maintenance.
4. What is the measurement category of the HIOKI P2010?
The P2010 supports CAT III 2000 V measurement applications.
5. Can the HIOKI P2010 be used alone?
No. The P2010 is a high voltage probe and must be used with a compatible HIOKI measuring instrument.
6. Can it be connected to a HIOKI clamp meter?
Yes. It can be used with selected compatible HIOKI clamp meters.
7. Can it be used with a digital multimeter?
Yes. The probe can be used with compatible HIOKI digital multimeters.
8. Why is a high voltage probe required for solar systems?
Large solar PV strings can generate DC voltages beyond the direct input range of standard measuring instruments. A suitable high voltage probe allows those voltages to be measured with compatible equipment.
9. Can the HIOKI P2010 measure AC voltage?
The P2010 is designed specifically for DC high voltage measurement. Users should refer to the compatible instrument specifications for other measurement functions.
10. Is the HIOKI P2010 suitable for electrical maintenance?
Yes. It is useful for inspection, maintenance, testing and troubleshooting of high voltage DC electrical systems.
11. Who should use the HIOKI P2010?
It is suitable for solar engineers, electricians, field technicians, maintenance engineers, electrical contractors and professionals working with high voltage DC systems.
12. Where is the HIOKI P2010 commonly used?
Typical applications include solar power plants, rooftop solar installations, industrial electrical systems, high voltage DC testing, maintenance and electrical commissioning.
