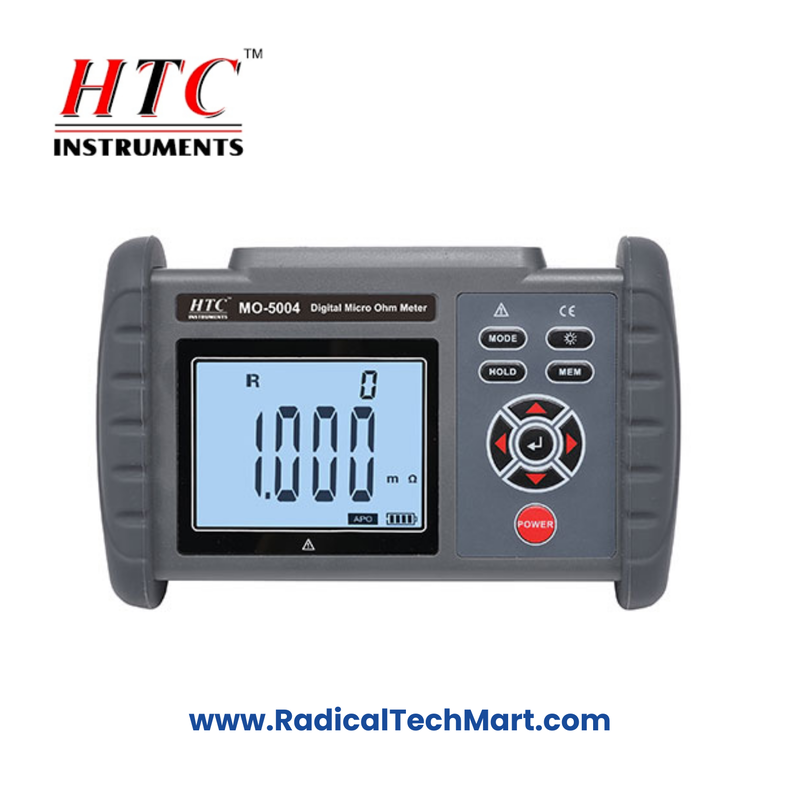

HTC MO-5004 Milli Micro Ohm Meter

Product Summary:
HTC MO-5004 is a high-performance Milli & Micro Ohm Meter designed for accurate low-resistance measurement with data storage, functional protection, and a large LCD display for easy readability.

Key Features:

• Large 75 x 52 mm LCD Display

• 500 Group Data Storage Capability

• Auto Power Off (APO)

• Functional Protection Enabled

• Conforms to IEC 61010-1, CAT III Safety Standards

• Standard Accessories: Kelvin Test Lead (Red 3M, Black 2M), Charger

• Sampling Rate: 2 times/sec

• Manual Range Operation

• Max Display Count: 1999

• Power: 3.7V, 2000mAh DC Battery

• Compact Size: 187(H) x 119(W) x 50(D) mm

• Low Battery Indication at ~3.7V

Application:

• Electrical maintenance & testing

• Transformer & motor resistance measurement

• Busbar, switchgear & PCB trace testing

• Industrial QA/QC labs

• Field service testing for utilities

Product Benefits:

• Ensures precise low-resistance readings

• Stores up to 500 measurement records

• Portable and lightweight for field use

• Enhances safety with CAT III compliance

• Supports Kelvin 4-wire method for accuracy

FAQs

Q1: What is the main purpose of the HTC MO-5004?
A1: It is used for measuring very low resistances in components like transformers, busbars, and circuit breakers.

Q2: Can I use this meter in field applications?
A2: Yes, it is compact, battery-powered, and designed for both lab and field testing.

Q3: What type of leads are included?
A3: The unit comes with standard Kelvin test leads (Red 3M and Black 2M) for accurate four-wire measurements.
