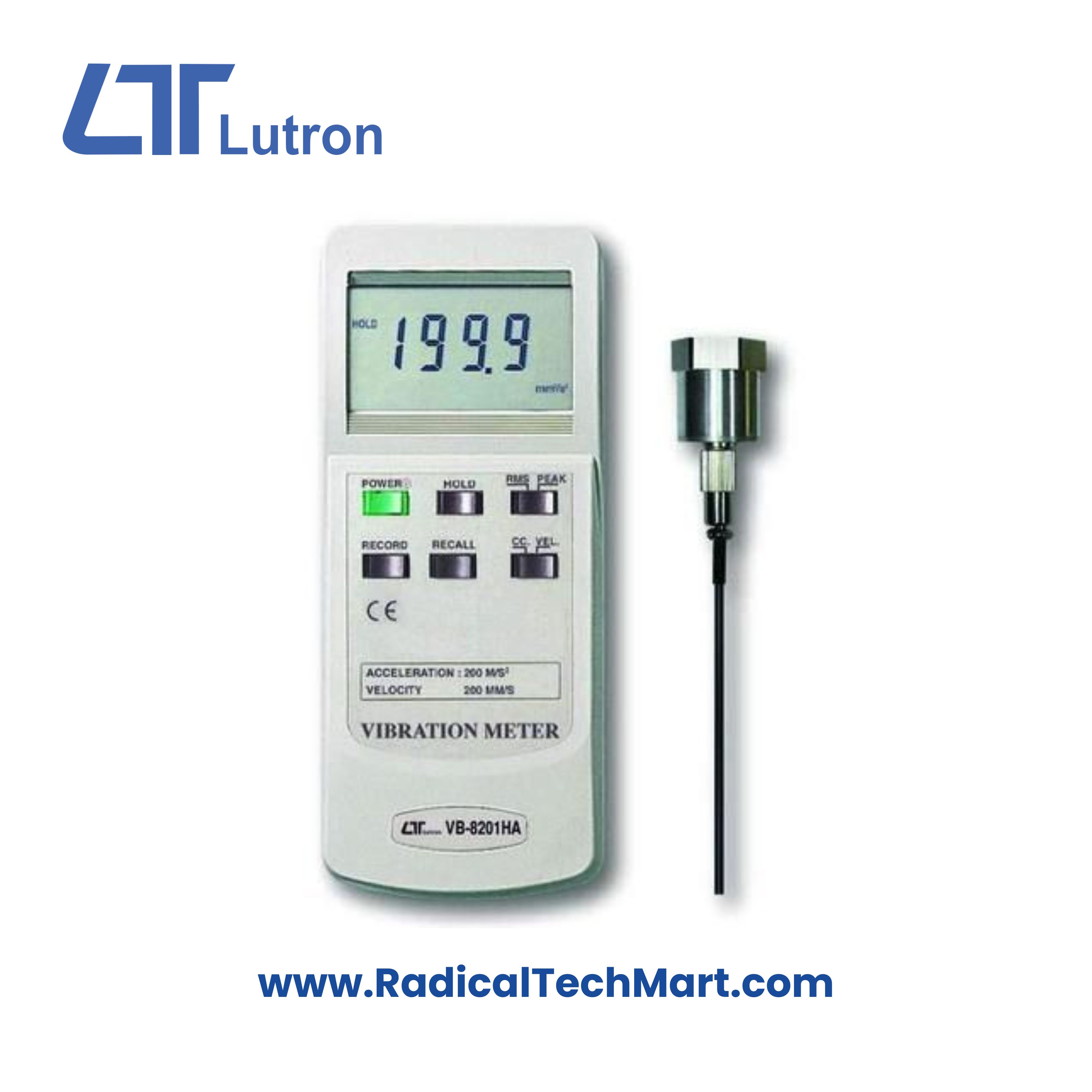

Lutron VB-8201HA Vibration Meter

Product Summary:
The Lutron VB-8201HA is a professional-grade vibration meter designed to accurately measure velocity and acceleration for predictive maintenance and industrial applications.

Key Features:

• Professional vibration sensor included

• Measures vibration velocity and acceleration

• RMS, Peak Hold, Max/Min functions

• Wide frequency range: 10 Hz to 1 kHz

• Large 61 mm x 34 mm LCD display

• Velocity range: 0.5 to 199.9 mm/s

• Acceleration range: 0.5 to 199.9 m/s²

• Accuracy ±(5% + 2d) at standard conditions

• Data hold function for accurate readings

• Powered by 9V battery (006P or equivalent)

Applications:

• Predictive maintenance

• Machine condition monitoring

• Industrial motors and pumps testing

• Quality assurance in manufacturing

• HVAC and building services

Product Benefits:

• Portable and easy to operate

• Accurate multi-parameter vibration analysis

• Ideal for both field and lab use

• Helps reduce unplanned machine downtime

• Saves cost by early detection of mechanical faults

FAQs:

Q1. What parameters does the VB-8201HA measure?
A1. It measures vibration velocity and acceleration using RMS, peak, and max/min values.

Q2. Can this vibration meter be used for industrial maintenance?
A2. Yes, it's ideal for predictive maintenance of machines, motors, and HVAC systems.

Q3. What is the power source of this meter?
A3. It operates on a standard 9V battery (006P, MN1604, or PP3 equivalent).
