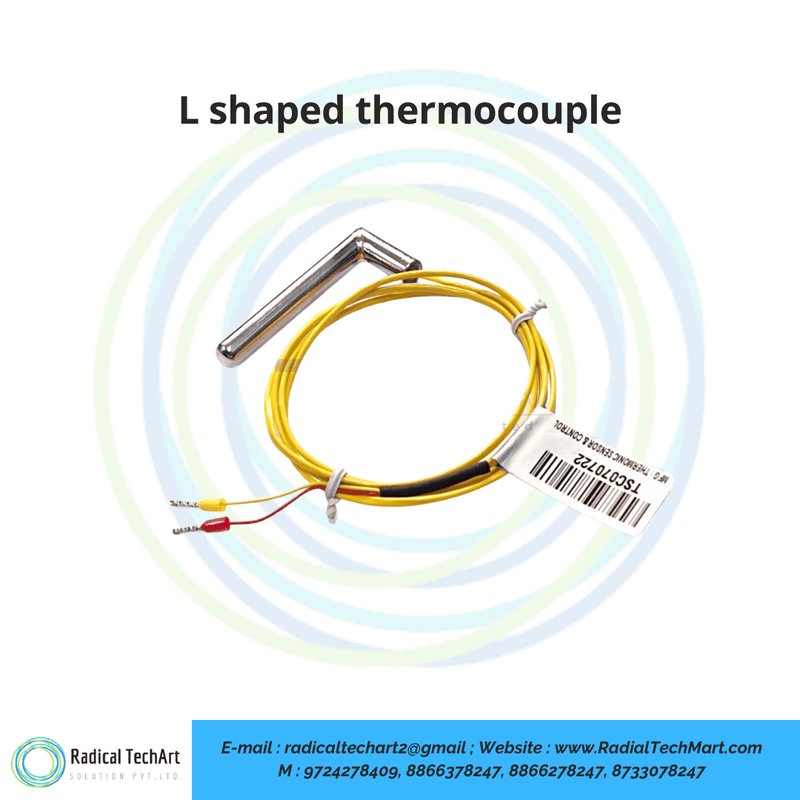

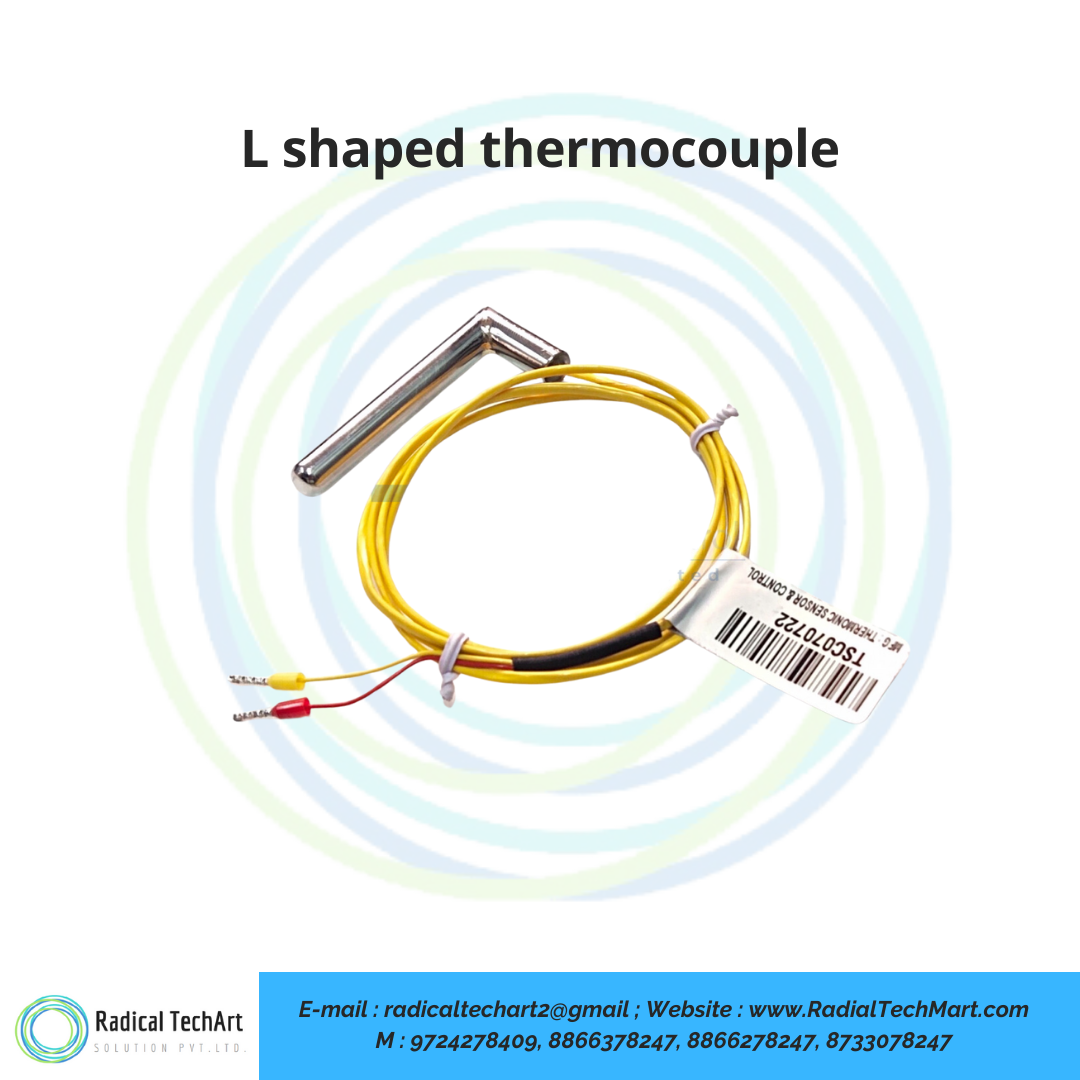

L Shaped Thermocouple Temperature Sensor

A. Product Overview

An L Shaped Thermocouple is a specially designed thermocouple probe with a bent or angled construction, usually in an L shape or U shape. This design helps the sensor reach areas where straight temperature probes are difficult to install or position.

The probe is made using thermocouple wire protected inside a durable outer sheath. Common sheath materials include stainless steel, Inconel and other high-temperature materials depending on the application requirement. The thermocouple wire type can be selected based on the required temperature range and accuracy, with common options including Type K, Type J and Type T thermocouples.

L shaped thermocouples are widely used in HVAC systems, automotive testing, industrial machines, furnaces, ducts, chambers and process equipment where reliable temperature measurement is required in compact or angled locations.

B. Working Principle

An L Shaped Thermocouple works on the thermoelectric effect. It uses two different metal wires joined at one end to form a sensing junction. When the sensing junction is exposed to heat, it generates a small voltage. This voltage changes according to the temperature.

The generated voltage is measured by a temperature controller, temperature indicator, data logger or PLC system and then converted into a temperature reading.

The L shaped design does not change the basic working principle of the thermocouple. It only changes the probe shape so that the sensor can be positioned correctly in difficult installation areas. For accurate measurement, the bend angle, probe length, sheath material and thermocouple type should be selected according to the application.

C. Why It Is Used

L Shaped Thermocouples are used when a straight thermocouple probe cannot be easily inserted, aligned or installed. The angled design helps the sensor reach corners, side-mounted locations, narrow spaces and areas with restricted access.

They are commonly used because they offer:

• Easy installation in tight and hard-to-reach spaces
• Better positioning around corners and bends
• Accurate temperature measurement in industrial processes
• Suitable design for HVAC, automotive and machinery applications
• Strong construction with stainless steel or Inconel sheath options
• Compatibility with Type K, Type J and Type T thermocouple elements
• Reliable performance in high-temperature and process applications

The correct bend angle and probe design are important because improper positioning can affect response time and measurement accuracy.

D. Suitable Buyers

L Shaped Thermocouples are suitable for buyers who need temperature measurement in compact, angled or difficult mounting areas.

Suitable buyers include:

• HVAC system manufacturers
• Furnace manufacturers
• Industrial machine manufacturers
• Automotive testing companies
• Process industry plants
• Control panel manufacturers
• Automation system integrators
• Maintenance and utility departments
• Research and development laboratories
• OEM equipment manufacturers
• Electrical and instrumentation contractors
• Temperature controller and sensor dealers

This product is ideal for customers looking for a customized thermocouple probe for specific temperature measurement applications.

FAQ

1. What is an L Shaped Thermocouple?

An L Shaped Thermocouple is a temperature sensor with a bent or angled probe design. It is used where a straight thermocouple cannot be installed easily, such as in tight spaces, corners, ducts and industrial machines.

2. Where is an L Shaped Thermocouple used?

It is used in HVAC systems, automotive applications, industrial processes, furnaces, machinery, ducts, chambers and hard-to-reach temperature measurement points.

3. Which thermocouple types are available in L shaped design?

L shaped thermocouples can be made with Type K, Type J, Type T and other thermocouple wire types depending on the temperature range and application.

4. Which sheath material is used for L Shaped Thermocouples?

The sheath is commonly made from stainless steel, Inconel or other suitable materials based on temperature, corrosion resistance and process conditions.

5. Why is the bend angle important in an L Shaped Thermocouple?

The bend angle is important because it helps the probe fit correctly into the application. An incorrect bend angle may affect sensor placement, response time and measurement accuracy.

6. Can L Shaped Thermocouples be customized?

Yes, L Shaped Thermocouples can be customized in terms of probe length, sheath diameter, bend angle, cable length, thermocouple type, handle design and termination type.

7. Is an L Shaped Thermocouple suitable for high-temperature applications?

Yes, it can be used for high-temperature applications when the correct thermocouple type and sheath material are selected, such as Type K with stainless steel or Inconel sheath.

8. Can it be connected to a temperature controller or PLC?

Yes, an L Shaped Thermocouple can be connected to temperature controllers, indicators, data loggers, PLC systems and other temperature monitoring devices.

9. What details are required to select the right L Shaped Thermocouple?

To select the right model, you should confirm the thermocouple type, temperature range, probe length, bend angle, sheath diameter, sheath material, cable length, mounting requirement and application details.

10. Why should I choose an L Shaped Thermocouple instead of a straight thermocouple?

You should choose an L Shaped Thermocouple when the measurement point is not easily accessible with a straight probe. Its angled shape allows better installation and positioning in restricted spaces.
