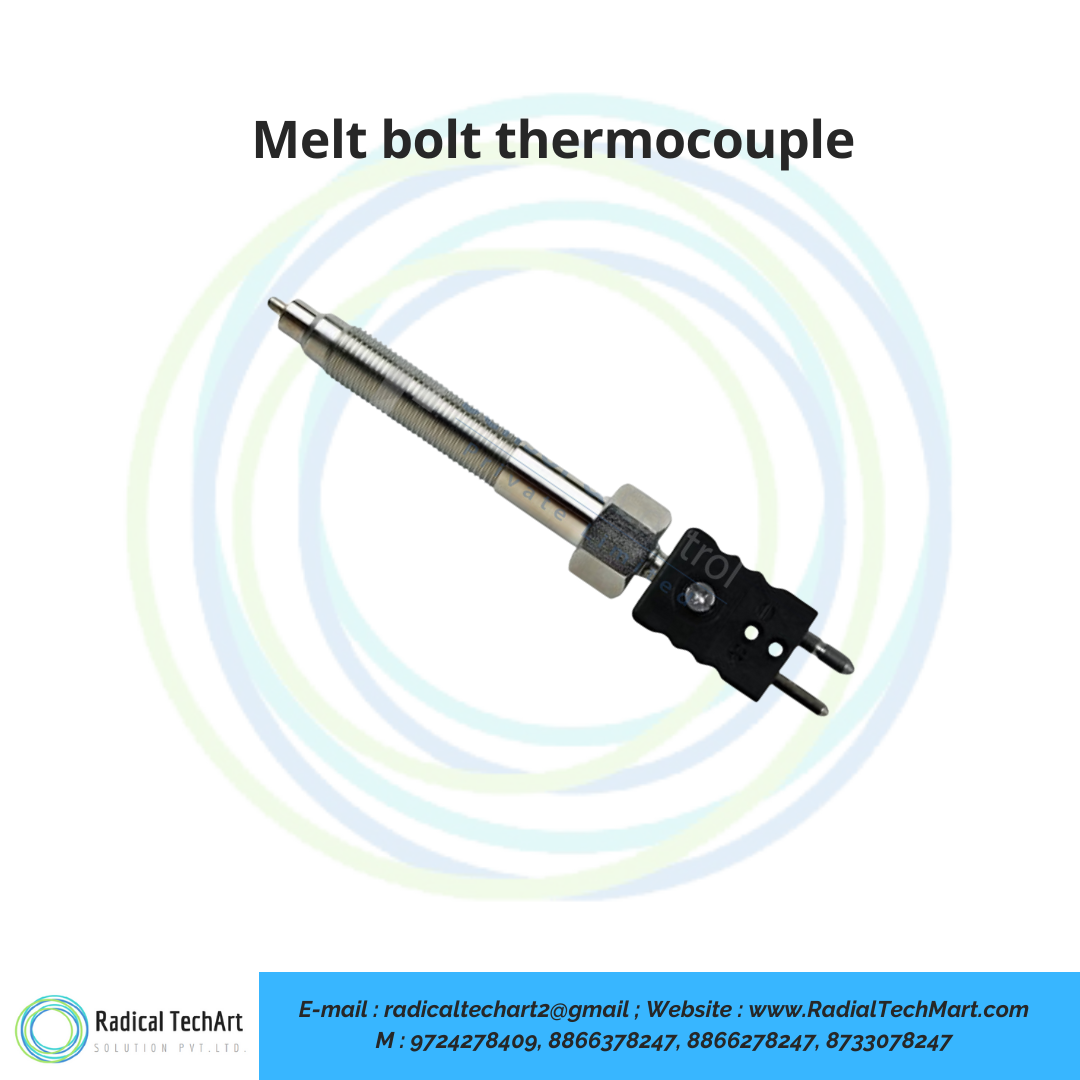

Melt Bolt Thermocouple Sensor

A. Product Overview

A Melt Bolt Thermocouple is a specially designed temperature sensor used for measuring the temperature of molten plastics and other heated materials during plastic extrusion and injection molding processes. The thermocouple probe is fitted inside a bolt or plug style housing, which is installed directly into the melt stream.

This design allows the sensor tip to come in contact with the flowing molten material, giving accurate and fast temperature readings. Melt bolt thermocouples are commonly used in plastic processing machines, extrusion lines, injection molding machines, hot runner systems, die heads, and barrel temperature monitoring applications.

They are useful wherever precise melt temperature control is required to maintain product quality, reduce material wastage, and improve process consistency.

B. Working Principle

A Melt Bolt Thermocouple works on the thermoelectric principle. Inside the sensor, two dissimilar metal wires are joined together at one end to form a temperature sensing junction. When this junction is exposed to heat from the molten plastic or material, it generates a small voltage signal.

This voltage changes according to the temperature at the sensing point. The signal is then sent to a temperature controller, indicator, recorder, or PLC system, where it is converted into a readable temperature value.

The bolt or plug body holds the thermocouple probe securely in position and allows easy installation into the machine barrel, die head, or melt flow path. Since the sensing tip is placed close to or directly inside the melt stream, it provides reliable temperature feedback during production.

C. Why It Is Used

A Melt Bolt Thermocouple is used to monitor and control the actual temperature of molten plastic during processing. In extrusion and injection molding, incorrect melt temperature can lead to poor product quality, material degradation, surface defects, dimensional issues, and production rejection.

It is used because it helps in:

Accurate measurement of molten plastic temperature.

Better control of extrusion and injection molding processes.

Improved product quality and consistency.

Reduced overheating and underheating problems.

Prevention of material burning or improper melting.

Stable machine performance during continuous production.

Monitoring temperature in die heads, barrels, nozzles, and hot runner systems.

Supporting research and development for new plastic materials and process conditions.

D. Suitable Buyers

Melt Bolt Thermocouples are suitable for industries and buyers who work with plastic, rubber, polymer, and heated material processing applications.

Suitable buyers include:

Plastic extrusion machine manufacturers.

Injection molding machine users.

Plastic product manufacturers.

Polymer processing plants.

Rubber processing industries.

Hot runner system users.

Packaging material manufacturers.

Pipe and profile extrusion plants.

Cable extrusion plants.

Plastic sheet and film manufacturers.

Machine maintenance teams.

OEM machine builders.

Automation and instrumentation engineers.

Research and development laboratories.

Industrial temperature sensor dealers and distributors.

FAQ

Q1. What is a Melt Bolt Thermocouple?
A Melt Bolt Thermocouple is a temperature sensor used to measure the temperature of molten plastic or heated material in extrusion and injection molding machines.

Q2. Where is a Melt Bolt Thermocouple used?
It is used in plastic extrusion machines, injection molding machines, die heads, barrels, nozzles, hot runner systems, and polymer processing equipment.

Q3. Why is melt temperature measurement important?
Melt temperature measurement is important because it helps maintain proper material flow, product quality, and process stability during plastic processing.

Q4. How does a Melt Bolt Thermocouple work?
It works by using two dissimilar metals joined at a sensing junction. When the junction is heated by molten plastic, it produces a voltage signal that is converted into a temperature reading.

Q5. What is the benefit of using a bolt type design?
The bolt type design allows the thermocouple to be securely installed into the machine and positioned directly in the melt stream for accurate temperature measurement.

Q6. Can Melt Bolt Thermocouples be used in injection molding machines?
Yes, Melt Bolt Thermocouples are commonly used in injection molding machines to monitor melt temperature and improve process control.

Q7. Are Melt Bolt Thermocouples suitable for extrusion machines?
Yes, they are widely used in extrusion machines for measuring plastic melt temperature in barrels, die heads, and adapters.

Q8. Which industries use Melt Bolt Thermocouples?
They are used in plastic processing, rubber processing, polymer manufacturing, packaging, cable extrusion, pipe extrusion, and research and development applications.

Q9. What problem does a Melt Bolt Thermocouple help solve?
It helps solve issues related to inaccurate melt temperature, poor product finish, material burning, improper melting, and unstable production quality.

Q10. Who should buy a Melt Bolt Thermocouple?
Machine manufacturers, plastic processing plants, maintenance teams, instrumentation engineers, OEMs, and industrial automation suppliers should consider buying Melt Bolt Thermocouples.
