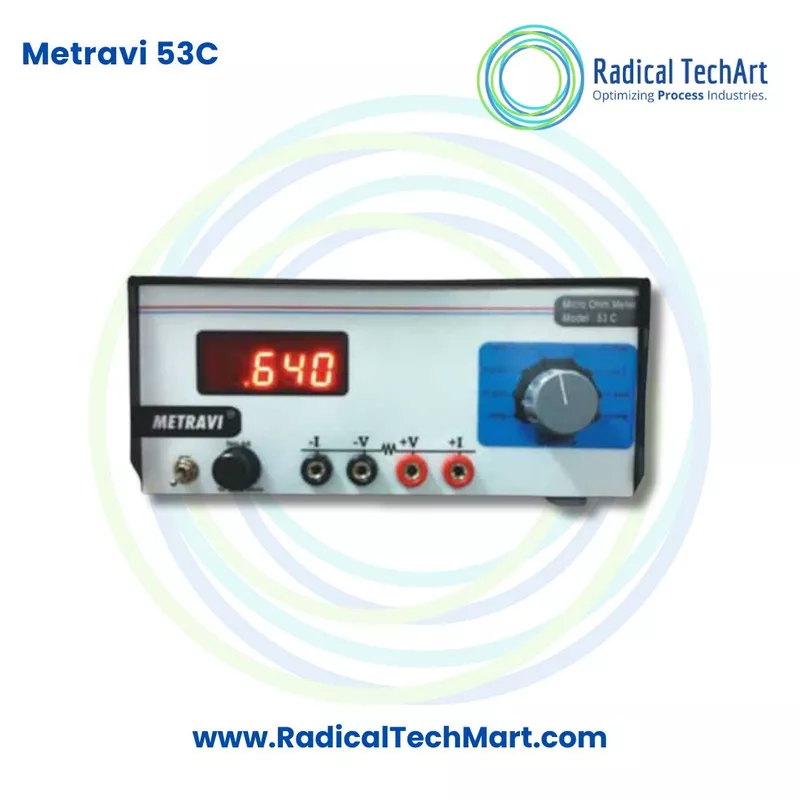

Metravi 53C Digital Micro Ohms Meter

A. Product Overview

The Metravi 53C Digital Micro Ohms Meter is designed for accurate measurement of very low resistance values in electrical and industrial components. It is useful where normal multimeters cannot provide reliable readings for micro-ohm and milli-ohm level resistance.

This instrument is suitable for measuring the resistivity of copper wires, resistance of cables, motor windings, transformer windings, coils, heater elements, switches, relays and contact points. It uses a 3.5 digit LED display with 12.5 mm height for clear reading visibility.

Key highlights include:

4-terminal resistance measurement
Compact and high-reliability design
Quick, stable and repeatable readings
Resistance range from micro-ohm level up to 19.99 kilo ohm
Suitable for copper wires from 7/0 SWG to 50 SWG
230 V AC input supply
Warm-up time of 3 minutes for rated accuracy

B. Working Principle

The Metravi 53C works on the 4-terminal measurement method, also known as Kelvin measurement. In normal 2-wire resistance measurement, the resistance of test leads and probe contact points can affect the final reading, especially when measuring very low resistance values.

In the 4-terminal method, separate current and voltage terminals are used. The meter passes a known test current through the component and measures the voltage drop across it. Based on this voltage drop and test current, the actual resistance value is calculated and shown directly on the LED display.

This method helps remove the effect of lead resistance and contact resistance, giving a more accurate low-resistance reading.

C. Why It Is Used

The Metravi 53C is used when accurate low-resistance measurement is required in electrical testing, quality inspection, maintenance and troubleshooting.

It is mainly used to:

Measure low resistance values accurately
Check cable and conductor resistance
Test motor and transformer windings
Measure contact resistance of switches and relays
Check coils and heater elements
Verify copper wire resistivity
Identify loose, weak or high-resistance electrical connections
Support preventive maintenance in electrical panels and industrial systems

This meter is especially important because small resistance changes in electrical contacts, windings and conductors can cause heating, voltage drop, energy loss or equipment failure.

D. Suitable Buyers

The Metravi 53C Digital Micro Ohms Meter is suitable for:

Electrical contractors
Panel manufacturers
Transformer manufacturers
Motor rewinding workshops
Cable manufacturers
Switchgear manufacturers
Relay and contactor testing teams
Industrial maintenance engineers
Electrical testing laboratories
Quality control departments
Power plant maintenance teams
Automation and instrumentation service providers
Educational and technical training institutes

FAQ

1. What is the Metravi 53C Digital Micro Ohms Meter used for?

The Metravi 53C is used for measuring very low resistance values in copper wires, cables, windings, coils, heater elements, switches, relays and electrical contacts.

2. Why is a micro-ohm meter better than a normal multimeter for low resistance testing?

A normal multimeter may not give accurate results at very low resistance levels because test lead resistance and contact resistance can affect the reading. A micro-ohm meter like the Metravi 53C uses 4-terminal measurement to reduce these errors.

3. What is 4-terminal measurement?

4-terminal measurement uses separate current and voltage terminals. This helps eliminate test lead and contact resistance from the measurement, giving a more accurate result for low-resistance testing.

4. Can the Metravi 53C be used for cable testing?

Yes. The Metravi 53C can be used for checking cable resistance, conductor resistance and continuity quality in electrical cables.

5. Is the Metravi 53C suitable for motor and transformer winding resistance measurement?

Yes. It is suitable for measuring resistance in motor windings, transformer windings and coils where low-resistance accuracy is required.

6. What display does the Metravi 53C have?

The Metravi 53C has a 3.5 digit LED display with 12.5 mm character height for clear resistance reading.

7. What is the input supply of the Metravi 53C?

The instrument operates on 230 V AC supply with ten percent tolerance.

8. Where is this meter commonly used?

It is commonly used in electrical maintenance, switchgear testing, cable testing, transformer testing, motor testing, industrial quality control and electrical laboratories.

9. Does the Metravi 53C give direct resistance readings?

Yes. The actual resistance value is directly displayed on the seven-segment LED display.

10. Who should buy the Metravi 53C Digital Micro Ohms Meter?

It is suitable for electrical engineers, maintenance teams, testing labs, panel builders, motor repair workshops, transformer manufacturers and industrial service providers.
