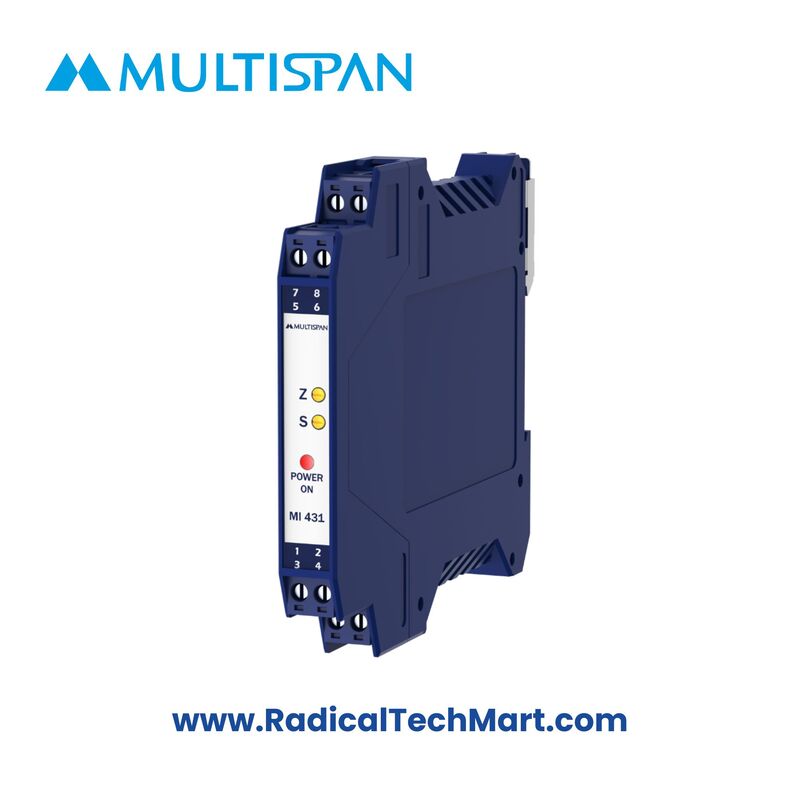

MI-431 Multispan

Product Summary:
The Multispan MI-431 Slim Signal Isolator offers accurate and compact signal isolation for analog signals with options for single or dual outputs and a built-in transmitter power supply. Ideal for factory automation and signal conditioning applications.

Key Features:

• Slim 17.5mm/12.5mm DIN-rail mount design

• Fixed analog inputs and outputs (4-20mA, 0-10V DC)

• Available in single and dual output variants

• High noise rejection and 3-way optical isolation

• Built-in 24V DC transmitter power supply (TPS)

• Supports 100–270V AC or 24V DC supply

• ±1% FSD accuracy

• Operating temp: 0°C to 55°C; up to 95% RH non-condensing

Applications:

• Field signal interface and impedance matching

• Signal isolation between field instruments and control systems

• Distribution of analog signals to multiple receivers

• Powering 2-wire field transmitters

• Factory automation and process control panels

Product Benefits:

• Saves panel space due to ultra-slim design

• Protects equipment with 3-way isolation

• Ensures reliable performance in high-noise environments

• Simplifies installation with DIN-rail mounting

• Flexible output configurations for varied system designs

FAQs:

Q1: What is the difference between single and dual output models?
A1: Single output models provide one isolated analog signal output, while dual output models provide two isolated outputs—useful for signal duplication or parallel system interfacing.

Q2: Can the MI-431 power 2-wire transmitters?
A2: Yes, it includes an inbuilt 24V DC TPS (Transmitter Power Supply) for field transmitter powering.

Q3: Is this isolator suitable for noisy industrial environments?
A3: Absolutely. It features high noise rejection and 3-way optical isolation for superior protection and signal integrity.
