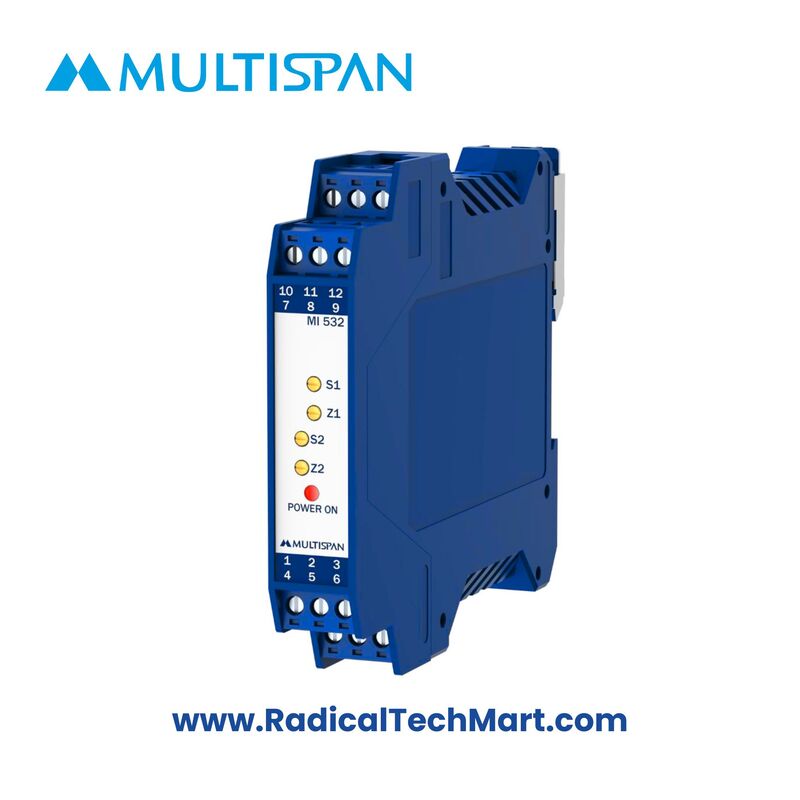

MI-532 Multispan

Product Summary:
The Multispan MI-532 is a slim-profile signal isolator offering fixed analog inputs and outputs with an inbuilt sensor supply. Designed to minimize panel space and provide high noise rejection, it is ideal for industrial automation and signal integrity.

Key Features:

• Fix Analog Input: 4-20 mA / 0-10 V DC (factory set)

• Slim DIN rail design—only 12.5 mm (single output) or 17.5 mm (dual output) wide

• Dual output models available

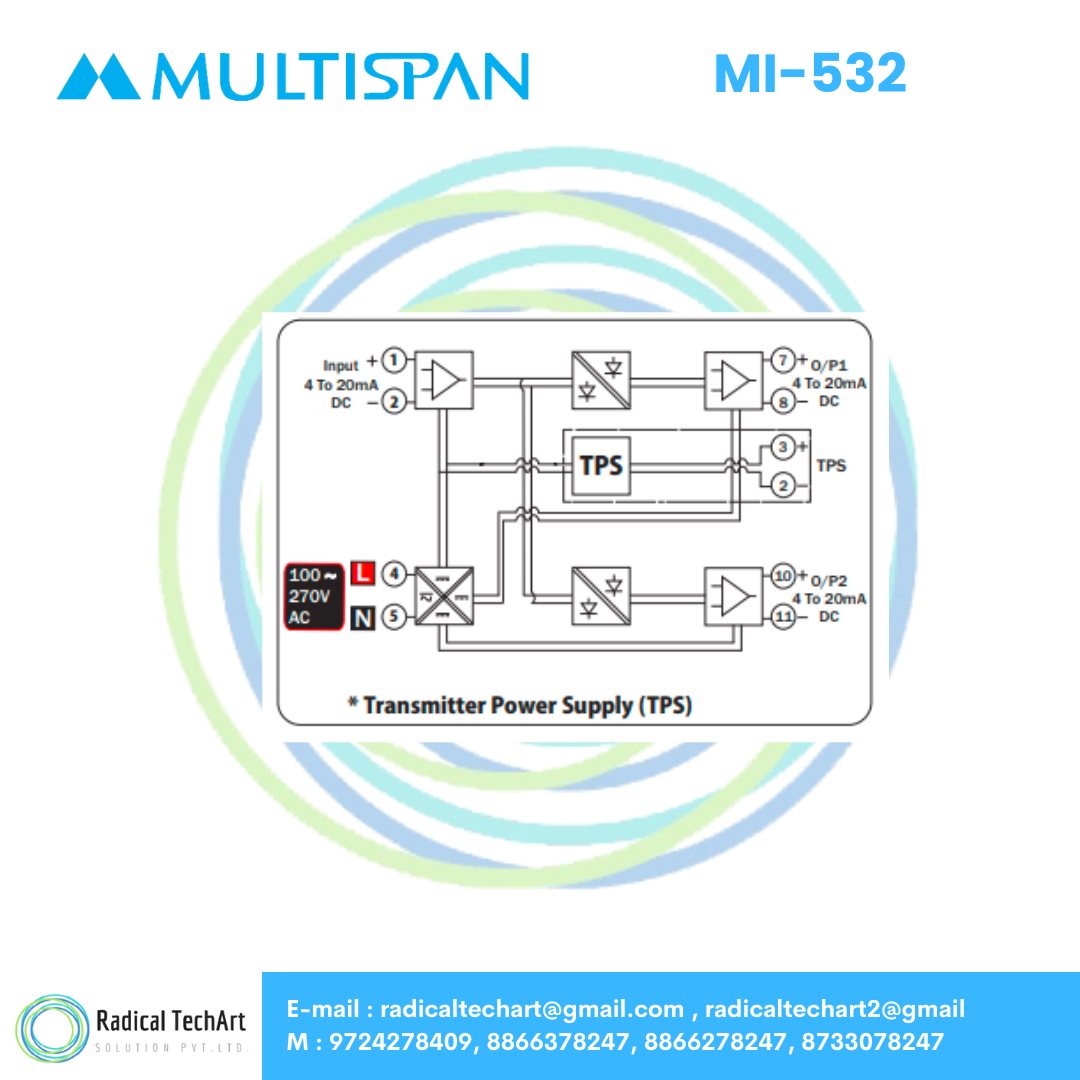

• 3-Way Optical Isolation: Input-Output, Input-Supply, Output-Supply

• Built-in 24V DC transmitter supply

• High CMRR > 120 dB

• Fast response time < 150 ms

• Wide supply range: 100–270V AC / 24V DC

Applications:

• Field signal isolation and distribution

• Impedance matching between transmitters and receivers

• Factory/process automation

• Signal conditioning in industrial panels

• Powering field transmitters with safe isolation

Product Benefits:

• Saves space in compact panels due to slim design

• Increases system safety through 3-way isolation

• Enhances signal integrity with high noise rejection

• Simplifies installation with built-in sensor power

• Reduces wiring complexity in distributed control systems

FAQs:

Q1. What is the input/output type of the MI-532?
A1. The MI-532 accepts fixed analog input of 4-20mA or 0-10VDC (factory set) and provides corresponding analog outputs in the same range.

Q2. Can MI-532 be used with a 24V DC power supply?
A2. Yes, it supports both 100–270V AC and 24V DC power supply options, factory set during ordering.

Q3. What type of isolation does the MI-532 provide?
A3. It provides 3-way optical isolation between input-output, input-supply, and output-supply with isolation strength of 2 kV AC for 1 minute.
