Miniature Top Mount SS Level Switch Series

A. Product Overview

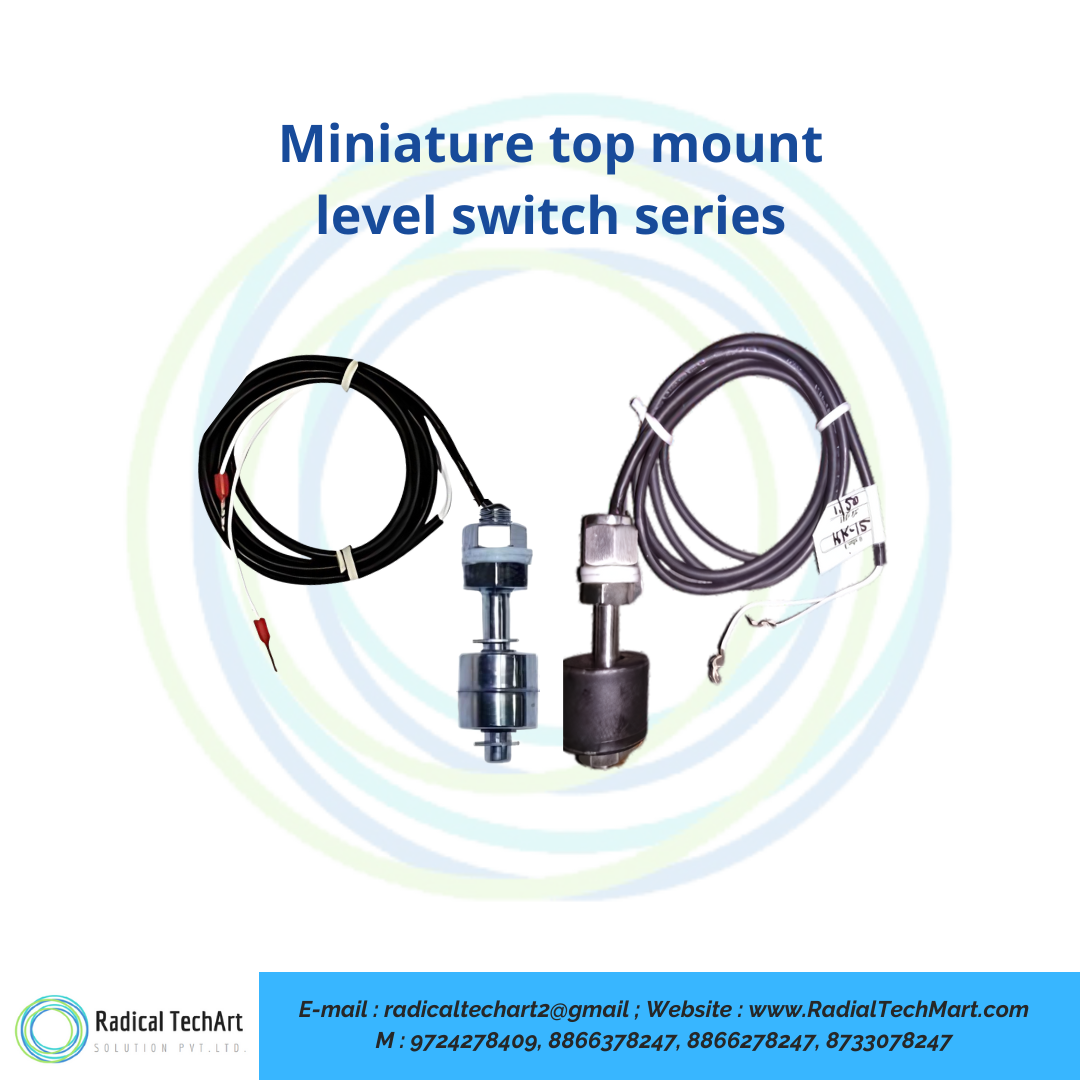

The Miniature Top Mount SS Level Switch is designed for accurate and reliable point level detection in compact tanks and vessels where space is limited. It is mounted from the top of the tank and operates through a float movement mechanism. The switch is suitable for applications where liquid level needs to be monitored for high level, low level, overflow protection or dry run prevention.

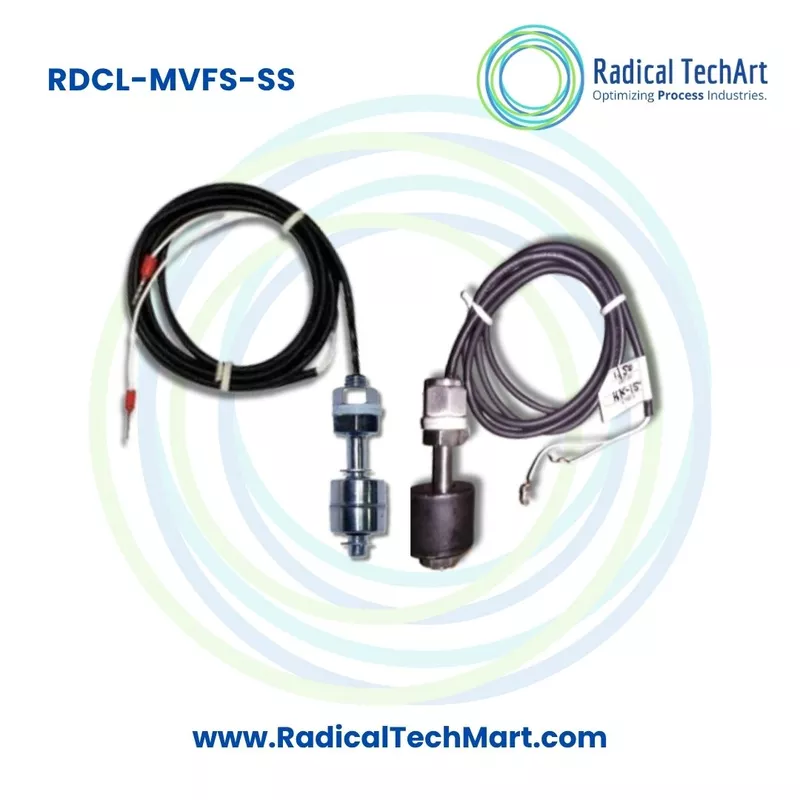

This level switch series is available in stainless steel and plastic float versions. The stainless steel model is suitable for water, boiling water, industrial fluids and chemical applications, while the Polypropylene and Nylon float version is suitable for selected non-aggressive liquids and atmospheric pressure applications.

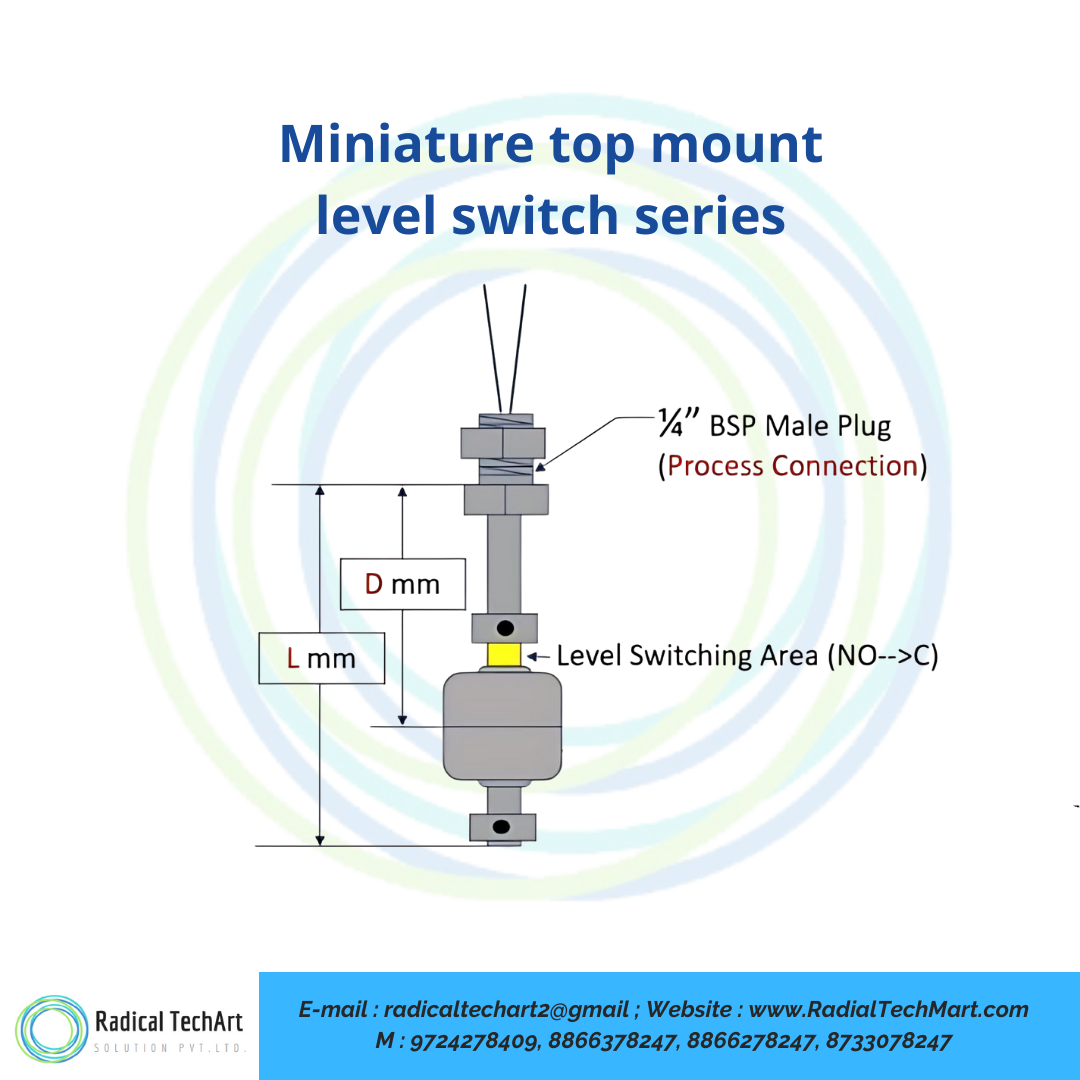

The switch comes with a standard 1/4 inch BSP inverted male plug connection, and custom options such as M16, 1 inch BSP and TC fitting can be provided as per requirement. The stem length, float size, switching point and switch action can be customized during manufacturing.

B. Working Principle

The Miniature Top Mount SS Level Switch works on a magnetic float and reed switch principle. A float moves up or down along the stem according to the liquid level inside the tank. As the float reaches the set switching point, the magnet inside the float activates the reed switch located inside the stem.

This action changes the electrical contact state and gives an ON or OFF signal to the connected control panel, relay, alarm, pump or automation system. The switching action can be configured as normally open or normally closed depending on installation requirement.

Because the switching mechanism is enclosed inside the stem, the device provides reliable operation without direct electrical contact with the liquid.

C. Why It Is Used

The Miniature Top Mount SS Level Switch is used to control and monitor liquid levels in tanks where a compact, economical and dependable level sensing solution is required. It helps prevent overflow, dry running of pumps, low level operation and process interruption.

It is preferred in small tanks and machines because it requires less installation space, provides simple ON and OFF switching, and can be customized based on tank depth and required switching height.

Common uses include:

Water level monitoring
Boiling water level detection
Industrial fluid level sensing
Chemical tank level control
Small tank overflow protection
Pump dry run protection
Machine reservoir monitoring
Process vessel level indication
Low level and high level alarm systems

D. Suitable Buyers

This product is suitable for buyers who need a compact and customizable level switch for industrial and commercial liquid level control.

Suitable buyers include:

Industrial automation companies
Panel builders
OEM machine manufacturers
Water treatment plant manufacturers
Chemical process industries
Boiler and heating system manufacturers
Food and beverage equipment manufacturers
Pharmaceutical equipment manufacturers
Hydraulic machine manufacturers
Chiller and cooling system manufacturers
Pump manufacturers and pump dealers
Maintenance and utility departments
System integrators
Resellers and industrial product suppliers

FAQ

1. What is a Miniature Top Mount SS Level Switch?

A Miniature Top Mount SS Level Switch is a compact float type level switch installed from the top of a tank to detect liquid level at a fixed switching point. It gives an electrical signal when the liquid reaches the set level.

2. Where is this level switch installed?

It is installed on the top side of a tank, vessel or container through a threaded process connection such as 1/4 inch BSP. Custom process connections can also be provided.

3. What materials are available?

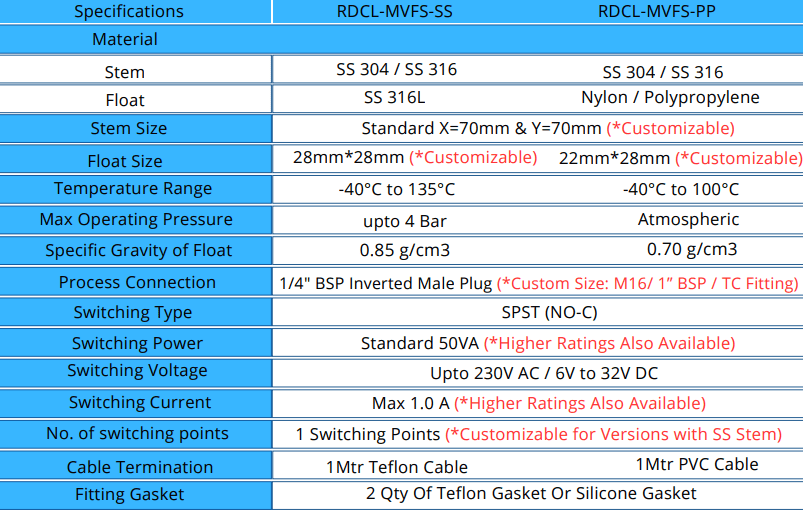

The stem is available in SS 304 and SS 316. The float is available in SS 316L, Nylon and Polypropylene, depending on the application and liquid compatibility.

4. Can the switching point be customized?

Yes. The stem size and switching point can be customized as per tank height and required level control position.

5. What is the switching type?

The standard switching type is SPST with normally open to common contact. The switching action can be configured as per application requirement.

6. What is the maximum operating temperature?

The stainless steel float version is suitable up to 135 degree Celsius, while the Polypropylene float version is suitable up to 100 degree Celsius.

7. What is the maximum operating pressure?

The stainless steel version can work up to 4 bar, while the Polypropylene version is suitable for atmospheric pressure applications.

8. What are the common applications of this level switch?

It is commonly used for water, boiling water, industrial fluids, chemicals, small tanks, machine reservoirs, hydraulic systems, dosing tanks and process vessels.

9. Can this level switch be used for chemical applications?

Yes, it can be used for chemical applications if the selected stem, float and gasket material are compatible with the chemical media.

10. Is this level switch suitable for small tanks?

Yes. Its compact design makes it suitable for small tanks, compact machines and applications where installation space is limited.

11. What cable options are available?

The stainless steel model is available with Teflon cable, while the Polypropylene model is available with PVC cable.

12. Can it be used for pump protection?

Yes. It can be used for low level detection and dry run protection in pump systems.
