NC2-265 3P Contactor

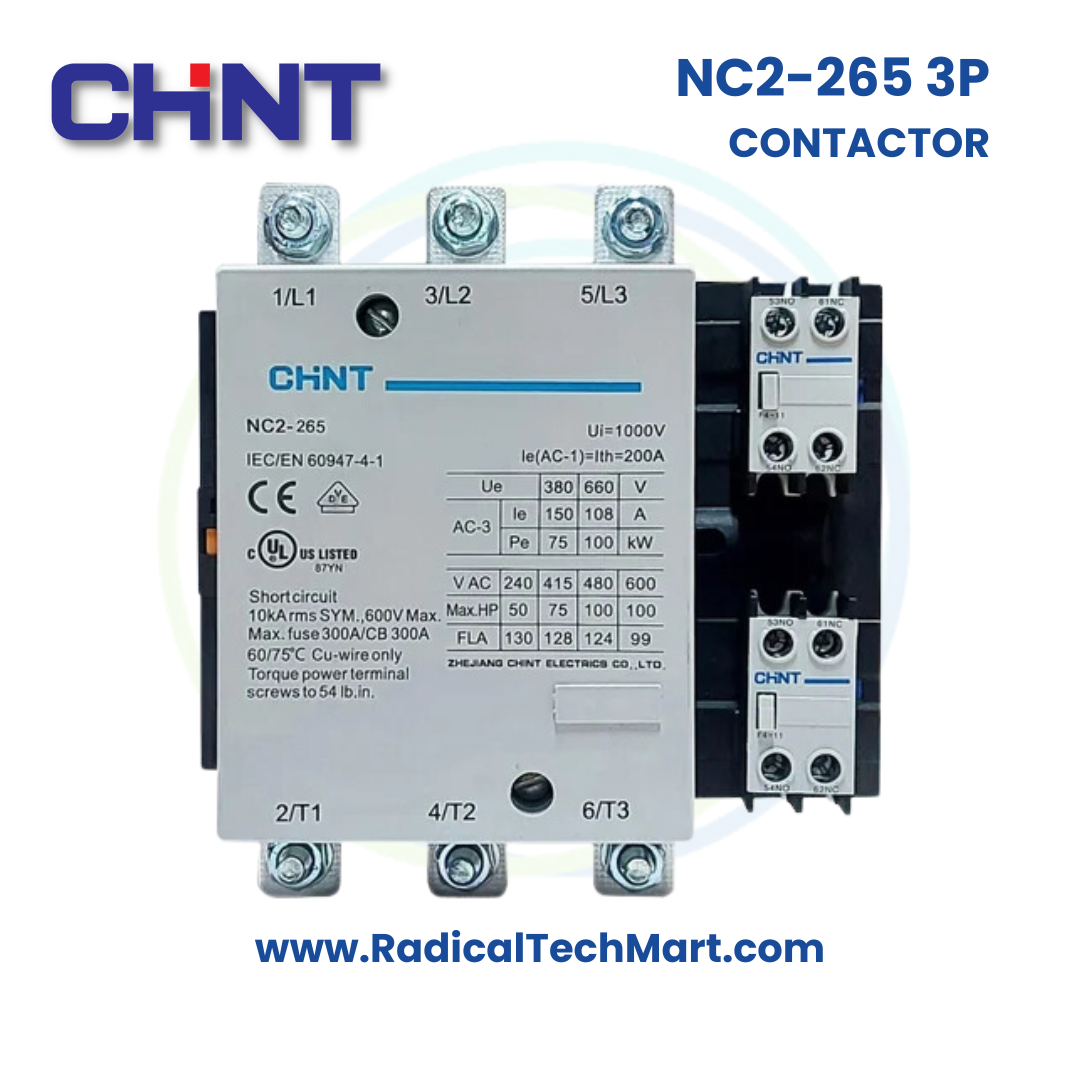

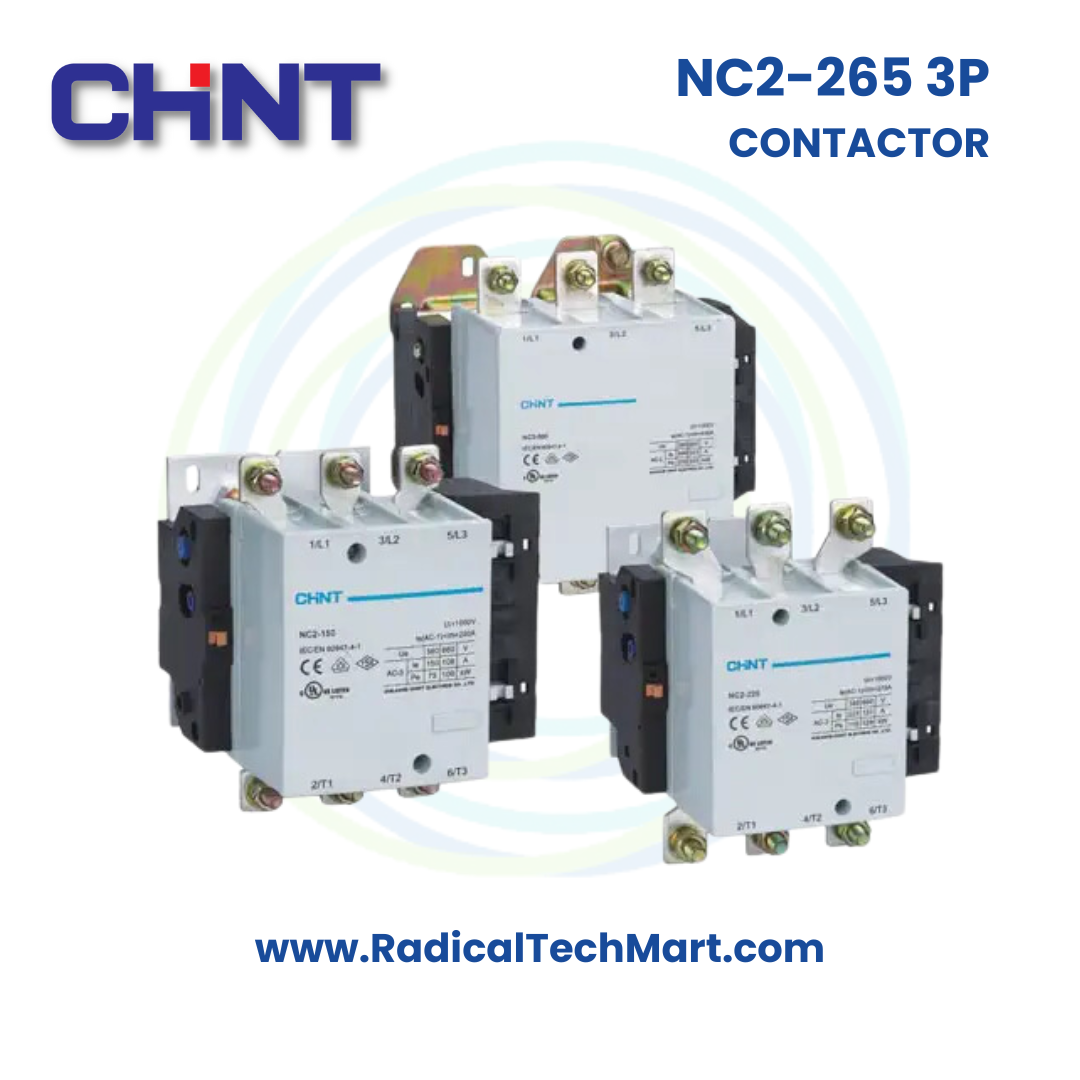

Chint NC2-265 3P Power Contactor (265A, 132kW)
Heavy-duty Chint NC2-265 3-pole contactor rated 265A, 132 kW (AC-3) for large motors and industrial loads, with multiple AC/DC coil voltage options.
Customize
Share :
The Chint NC2-265 3P Power Contactor is a high-capacity industrial contactor rated 265A (AC-3) and 132 kW at 400 V, designed for switching and protecting large 3-phase motors and heavy electrical loads. With multiple AC coil voltage options and robust mechanical life, it is ideal for MCCs, process plants, HVAC central plants, and power distribution panels.
Key Features
High Current & Power Rating:265A (AC-3) rated operational current and 132 kW at 400 V, suitable for large induction motors
3-Pole Configuration:3-pole (3NO) main contacts for standard 3-phase power circuits
Wide Coil Voltage Range: Available with AC coils in 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V; DC coil options also available
High Insulation Voltage: Rated insulation voltage up to 690 V, suitable for industrial systems
Long Mechanical & Electrical Life: Mechanical life in the range of 2–3 million operations, electrical life 0.8–1.2 million operations (AC-3)
Standards & Certifications: Complies with IEC/EN 60947-4-1 and certified CE, VDE, UL, KEMA, TUV, CCC, EAC, RCC
Industrial Application Ready: Designed for remote making and breaking of circuits, motor starters, compressors, pumps, and heavy-duty loads
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Brand | Chint |
| Series | NC2 Series |
| Model | NC2-265 |
| Product Type | 3-Pole Power Contactor |
| Number of Poles | 3 Poles |
| Main Contact Type | 3 Normally Open (3NO) |
| Rated Operational Current | 265 A (AC-3 at 380/400 V) |
| Rated Motor Power (AC-3) | 132 kW at 400 V |
| Rated Insulation Voltage (Ui) | Up to 690 V |
| Coil Type | AC operational (DC coil options available) |
| Available Coil Voltages (AC) | 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, 415 V |
| Frequency | 50 / 60 Hz |
| Utilization Category | AC-3 (motor duty) |
| Mechanical Life | ~2–3 million operations |
| Electrical Life (AC-3) | ~0.8–1.2 million operations |
| Standards | IEC/EN 60947-4-1 |
| Certifications | CE, VDE, UL, KEMA, TUV, CCC, EAC, RCC |
| Typical Applications | Motor starters, power feeders, compressors, HVAC, pump panels |
| Mounting | Panel/MCC mounting (screw/base mounting) |
| Manufacturer | Chint |
Applications
MCC panels for large motors and heavy drives
Pumps, blowers, compressors and crushers in process and utility plants
Chiller and HVAC plant control panels
Main and feeder contactors in power distribution systems
Industrial automation and process control panels for high-current loads
What’s in the Box?
1 × Chint NC2-265 3P Power Contactor (coil voltage as ordered)
Integrated operating coil (AC or DC as per variant)
Manufacturer’s data/leaflet (if supplied)
Warranty/QC or batch identification label
FAQ
Q1. What is the current and power rating of NC2-265?
Chint NC2-265 is rated 265A (AC-3 duty) with a motor power rating of 132 kW at 400 V.
Q2. Which coil voltage options are available?
The contactor is available with AC coils in 110 V, 220 V, 230 V, 240 V, 380 V, 400 V, and 415 V. Selected models are also offered with DC coils.
Q3. Is NC2-265 suitable for heavy 3-phase motor starting?
Yes, it is designed for AC-3 motor duty, suitable for heavy induction motors used in pumps, compressors, blowers, and process machinery.
Q4. What standards and certifications does it comply with?
NC2-265 complies with IEC/EN 60947-4-1 and carries certifications such as CE, VDE, UL, KEMA, TUV, CCC, EAC, and RCC.
Q5. Can this contactor be used in high-voltage industrial systems?
Yes, the rated insulation voltage is up to 690 V, making it suitable for industrial 400/440/500 V class systems within its design limits.
Q6. Does the price change with coil voltage?
Yes, pricing varies slightly with coil voltage and configuration. Confirm the required coil voltage and quantity for an accurate quote.
